Solid State Logic LIVE User Manual

SSL Live Installation Information
www.solidstatelogic.com Page 39 of 45

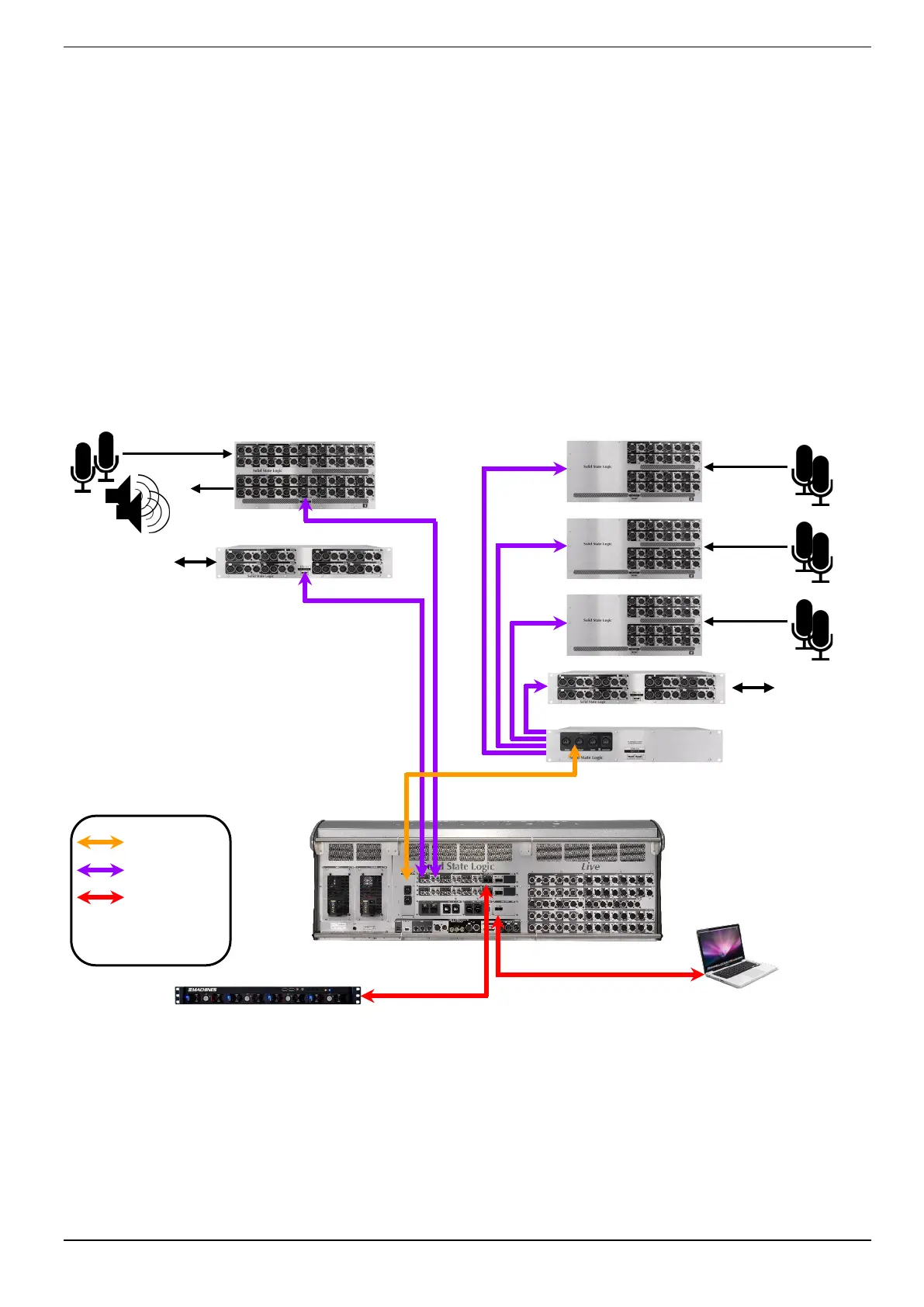

Blacklight II Single System (with Redundancy)
L550 Control Surface shown to provide 32 analogue IO and 16 AES IO at FOH position. 16 MADI ports
plus MADI FX Loop.
1 pair of Blacklight II connections provides 256 channels to/from stage using fibre up to <300m
(quality cables, connections and no intermediate connections).
1 off BLII.D Blacklight II MADI concentrator provides 4 redundant on-stage MADI ports connected
to...
3 off additional I.32 stageboxes provide an additional 96 Mic/Line inputs
1 off additional D 32.32 AES boxes provide 32 AES digital IO
Coaxial MADI connected IO
1 off ML 32.32 stageboxes provide 32 Mic/Line inputs and 32 line outputs on stage
1 off additional D 32.32 AES boxes provide 32 AES digital IO
Total remote IO of 128 Mic/Line Inputs, 32 Line Outputs, 64 AES IO, 36 GP inputs, 30 GP Outputs
D 32.32
32 Mic/Line In
32 Mic/Line In
Console
ML 32.32
Recorder
FX Loop
Coaxial MADI
up to 75m
Fibre MADI
up to 250m
32 Line Out
32 Mic/Line In
D 32.32
ML 32.32
ML 32.32
ML I.32
BLII.D
32
Digital IO
32
Digital IO
32 Mic/Line In
Redundant cabling not
s
hown for clarity
Blacklight Fibre
up to 250m
