Solid State Logic LIVE User Manual

SSL Live Installation Information
www.solidstatelogic.com Page 32 of 45
Fibre - Singlemode (special order) 9/125 µm, maximum length <1 km (quality cables, connections
and no intermediate connections)
Pre-terminated drums available from SSL in 150m and 300m (both to order) lengths.
150 m BL SM Fibre cable drum SSL Part No. 66DP15004
300 m BL SM Fibre cable drum SSL Part No. 66DP30004
*3b - Blacklight II LC fibre
Redundant pair(s) of LC fibre connections. The pair consists of primary and redundant connections.
Connector Type - Duplex LC fibre connections for non-rugged applications.
Fibre - Multimode 50/125 µm, maximum length <300 m (quality cables, connections and no
intermediate connections)

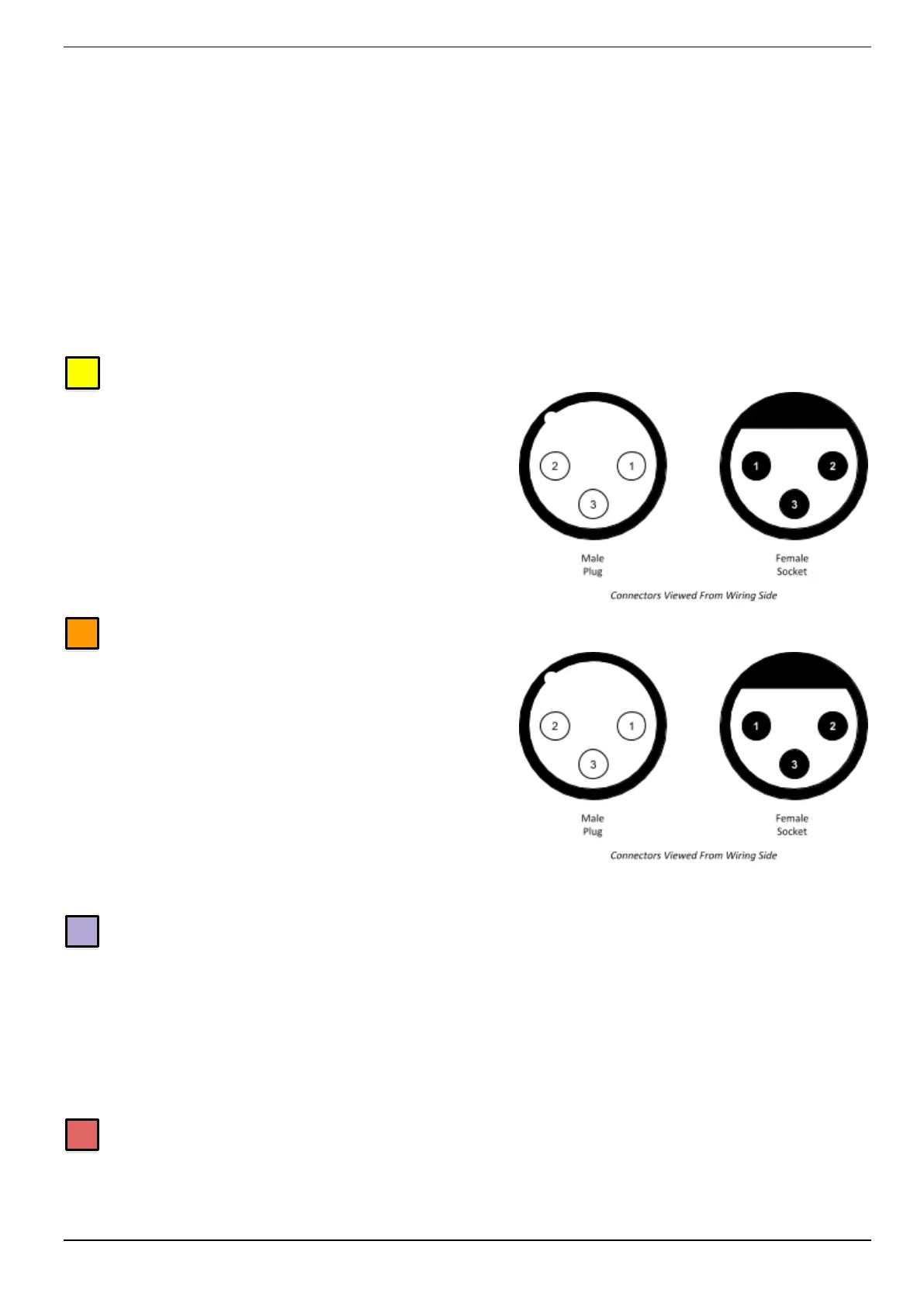

*4 - Analogue
Analogue Inputs and Outputs on 3 pin XLR connections.
Dimensions: Cable Dia: 19 x 60 mm (approx.) 8-12
mm (typical)
Pinout for balanced audio:
Pin 1 Screen/Ground
Pin 2 Hot (+ve)
Pin 3 Cold (-ve)
*5 - AES/EBU
AES3 Inputs and Outputs on 3 pin XLR connections.
(IEC 60958 Type I)
Dimensions: Cable Dia: 19 x 60 mm (approx.) 8-12
mm (typical)
Pinout for AES3 XLR:
Pin 1 Screen/Ground
Pin 2 Hot (+ve)
Pin 3 Cold (-ve)
*6 - MADI FX Loop
Fibre MADI connection to external effects processor.
Duplex SC multimode socket
Fibre - Multimode 50/125 µm, maximum length <1000 m (quality cables, connections and no
intermediate connections)
*7 - VGA Monitor
Connection to optional Overview monitor
Three-row 15-pin D-type DE-15 connector
Native resolution: 1280 x 1024 pixels
