Front Panel Connections
This section describes the 1/4" Jack Connections found at the front of the
Interface. These connections allow for direct instrument inputs & headphone
outputs.!
INST 1 & 2: 1/4" Input Jacks!
2 x Hi-Z (DI) 1/4" input jacks for connecting Instrument sources such as
electric guitar or bass. Plugging into the INST jack will automatically select
it, overriding Mic/Line selection on the channel.

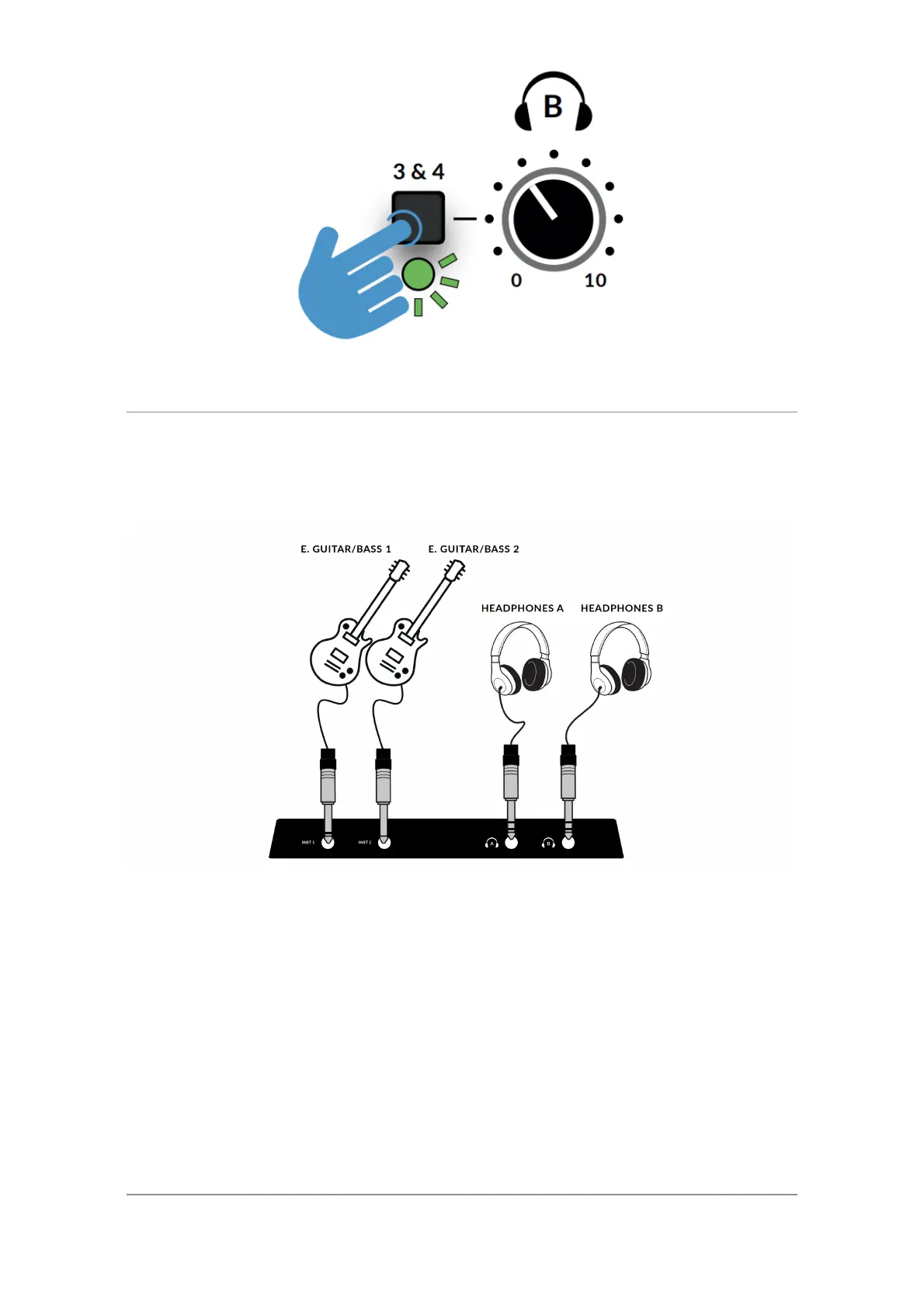

PHONES A & B: 1/4" Output Jacks!
2 x independent Headphones outputs, with individual level controls and
ability for PHONES B to source outputs 1-2 or 3-4.
Rear Panel Connections
