4.1.2 Installation Spacing

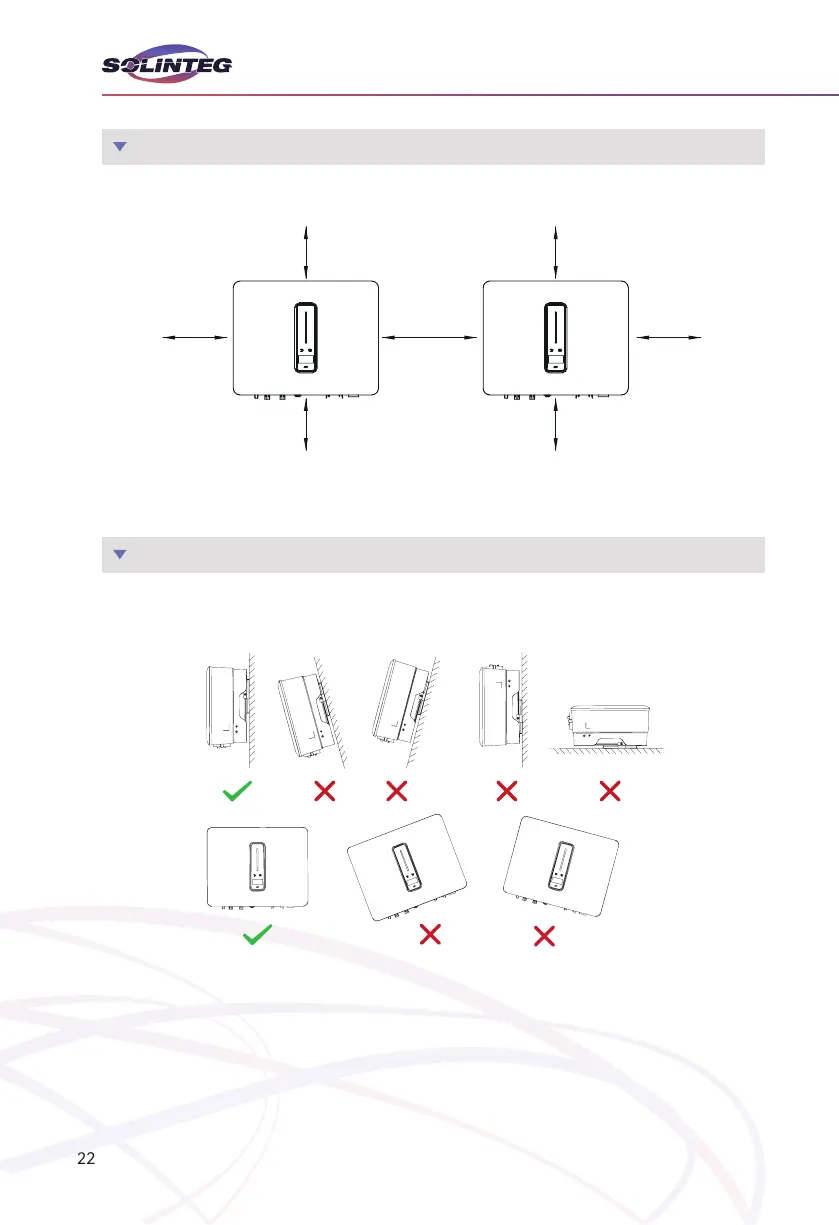

Figure 4-2 Recommended installation spacing


4.1.3 Installation Angle
300mm
500mm 500mm
500mm500mm
300mm 300mm
Figure 4-3 Permitted and prohibited mounting positions
