User Manual
MHT-4~20K series
※ 4.2MountingtheInveer
4.2.1 Wall Bracket Installation

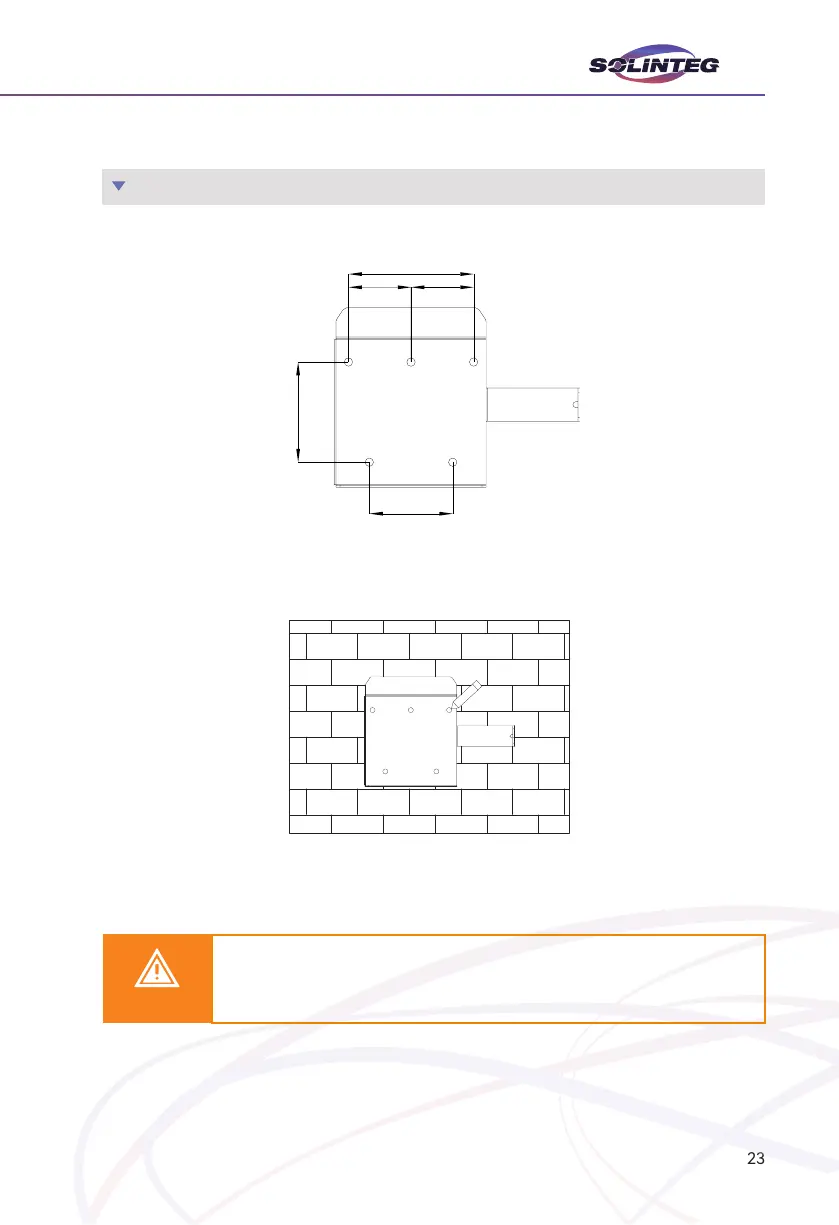

Figure 4-4 Dimensions of wall bracket

75 75
150
120
100
Figure 4-5 Marking hole position using installation bracket
①
Use the wall bracket as the template to mark the position of 5 holes on the wall.
②
Use an electrical driller with 10mm diameter bit to drill 5 holes in the wall with 80mm depth.


WARNING
③

wall with expansion screws by using a cross screwdriver.
