User Manual
Installation Guide
• IMPORTANT: Do not connect the power cable until the
installation is complete! Sôlt recommends installing in a
team of at least two people to avoid any accidents.

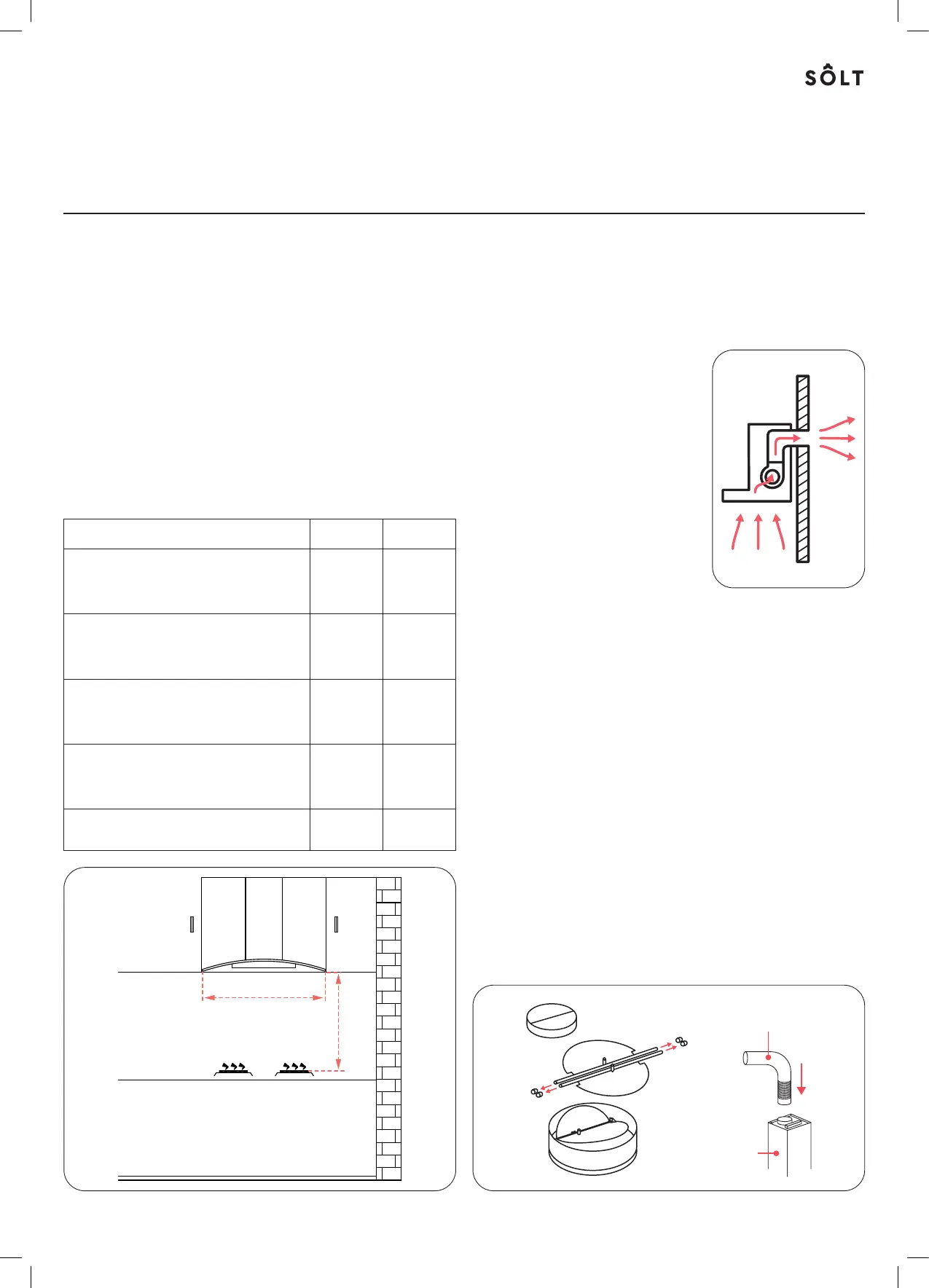

1. If you have an outlet to the
outside, your rangehood can be
connected as shown by means
of a Ø 150mm extraction duct.
2. Before installation, ensure that
turn the unit is both turned off
and unplugged.
3. The rangehood should adhere
to the minimum and maximum
distances from the rangehood
base to the cooktop surface
(as per the positioning table).
4. Carefully install the wall bracket hook in a suitable
place. Once the installation height is fixed and level, the
fixed position of the inside chimney bracket is the place
of the chimney. (Figure 4)
5. Fix the outside chimney bracket on the outside chimney,
and be sure that the inside chimney’s height can be
adjusted freely as well as fixing the extensible pipe.
Next, install the extensible pipe and chimney on the
rangehood. (Figure 5)
6. Safely lift up the rangehood and hang onto the wall
bracket hook. (Figure 6)
7. Adjust the height of the inside chimney to the position of
the inside chimney bracket and fix on it by screw, after
adjusting the position, fix the body to the wall with the
safety screws to secure it. (Figure 7)
8. Finally, fix the one-way-valve to the air outlet of the
rangehood. Then attached the exhaust pipe onto the
one-way-valve as shown below.
Positioning the Rangehood
NOTE: When the rangehood and appliance supplied
with energy other than electricity are simultaneously in
operation, the negative pressure in the room must be not
exceed 4 Pa (4 × 10
-5
Bar).
IMPORTANT: The height of the rangehood underside must
be a minimum of 650mm to a maximum 850mm from the
top of your cooktop surface (for gas cooktops this is the top
of the gas burner).
*If the installation instructions for your cooktop specify
a greater distance than the minimum, then that shall be
the minimum height for installation.
Cooktop Fuel Type Min* A Max B
Gas (multiple burners with maximum
45.4 MJ/h total output and no single
burner exceeding 16.2 MJ/h output)
650mm 800mm
Gas (multiple burners with maximum
45.4 MJ/h total output and no single
burner exceeding 17.3 MJ/h output)
760mm 800mm
Gas (single burner not exceeding
21.6 MJ/h output)
650mm 800mm
Gas (single burner with an output
greater than 21.6 MJ/h but not
exceeding 29.2 MJ/h output)
760mm 800mm
Electric 650mm 800mm
Min. A
Max. B
600/900mm
Min. A
Max. B
600/900mm
Min. A
Max. B
900mm
Rngehood
Pipe
