Solt GGSSL60DR2S - Ventilation Options

10

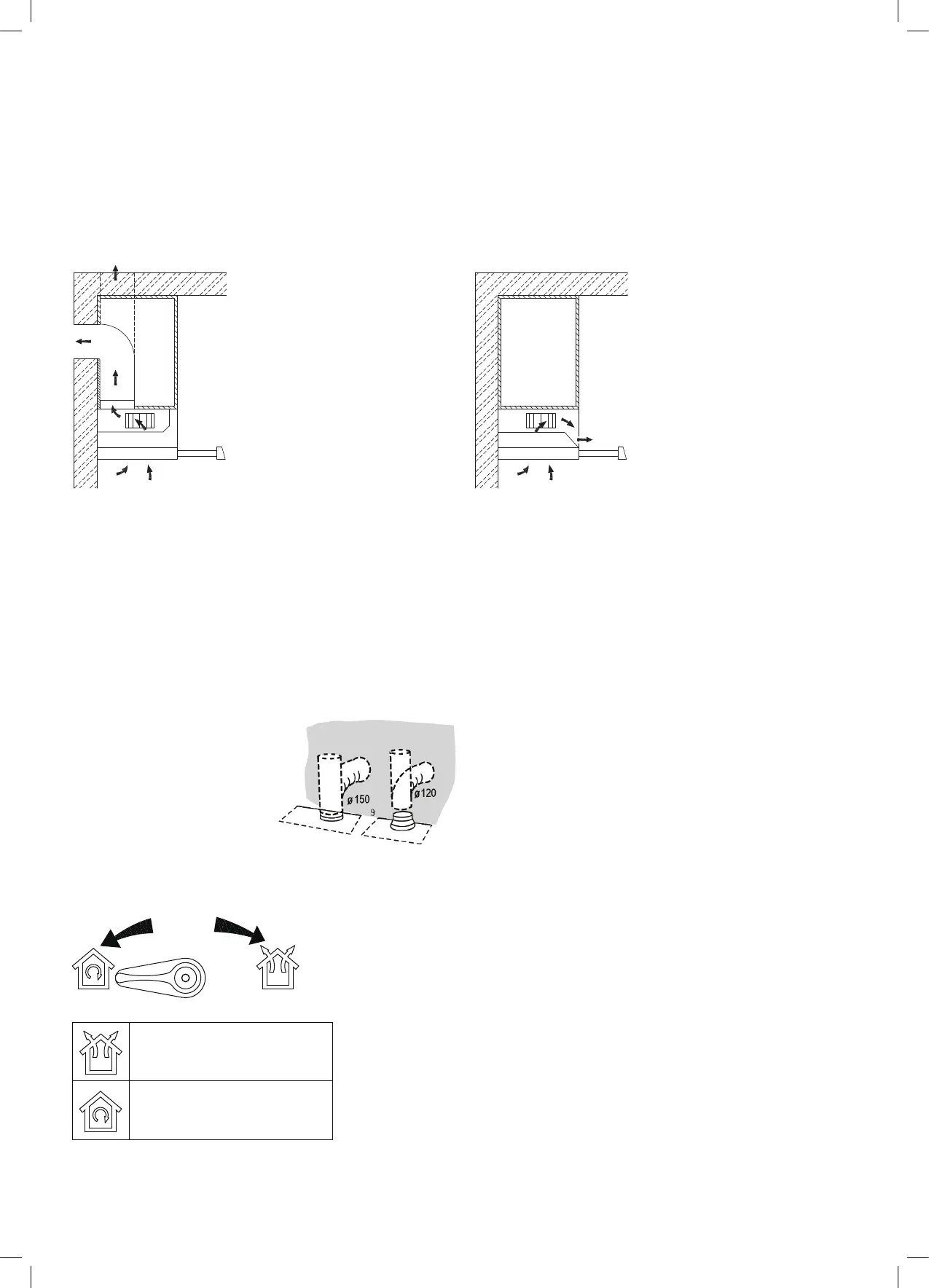

VENTILATION
Installation Instructions (continued)
Before installation, make a decision whether you want the air extracted or recirculating.
Venting knob position:
CONNECTIONS
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the chimney
using either a flexible or rigid pipe ɸ 150 or ɸ 120 mm, the choice of
which is left to the installer.
 To install a ɸ 120 mm air exhaust connection, insert the reducer
flange 3 on the hood body outlet.
 Fix the pipe 4 in position using sufficient pipe clamps (not
supplied).
 Remove possible charcoal filters.
CHOOSE A VENTING MODE
Here two venting modes, extraction-air mode and recirculation mode, before installing should
be select one of them.
Extraction-air mode, the air is discharged out of the house by a pipe.
Recirculation mode, the air is purified and discharged into the house.
Information
Recirculation mode(For single motor), the cabinet needs an air vent (For one motor optional).
Recirculation mode(For double motors), always be with activated carbon filter.
Recirculation mode, always be with activated carbon filter(s).
Recirculation mode, when activated carbon filter(s) attached, the suction power will be lowered.
Recirculation model for double motors
Extraction-air mode:
Turn the venting knob here
means venting outside
Circulating-air mode:
Turn the venting knob here
means recirculation
Venting knob position(optional)
Recirculation mode
(Double motors)
Extraction-air mode
7
CONNECTIONS
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the chimney
using either a flexible or rigid pipe ɸ 150 or ɸ 120 mm, the choice of
which is left to the installer.
 To install a ɸ 120 mm air exhaust connection, insert the reducer
flange 3 on the hood body outlet.
 Fix the pipe 4 in position using sufficient pipe clamps (not
supplied).
 Remove possible charcoal filters.
CHOOSE A VENTING MODE
Here two venting modes, extraction-air mode and recirculation mode, before installing should
be select one of them.
Extraction-air mode, the air is discharged out of the house by a pipe.
Recirculation mode, the air is purified and discharged into the house.
Information
Recirculation mode(For single motor), the cabinet needs an air vent (For one motor optional).
Recirculation mode(For double motors), always be with activated carbon filter.
Recirculation mode, always be with activated carbon filter(s).
Recirculation mode, when activated carbon filter(s) attached, the suction power will be lowered.
Recirculation model for double motors
Extraction-air mode:
Turn the venting knob here
means venting outside
Circulating-air mode:
Turn the venting knob here
means recirculation
Venting knob position(optional)
Recirculation mode
(Double motors)
Extraction-air mode
7
CONNECTIONS
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the chimney
using either a flexible or rigid pipe ɸ 150 or ɸ 120 mm, the choice of
which is left to the installer.
 To install a ɸ 120 mm air exhaust connection, insert the reducer
flange 3 on the hood body outlet.
 Fix the pipe 4 in position using sufficient pipe clamps (not
supplied).
 Remove possible charcoal filters.
CHOOSE A VENTING MODE
Here two venting modes, extraction-air mode and recirculation mode, before installing should
be select one of them.
Extraction-air mode, the air is discharged out of the house by a pipe.
Recirculation mode, the air is purified and discharged into the house.
Information
Recirculation mode(For single motor), the cabinet needs an air vent (For one motor optional).
Recirculation mode(For double motors), always be with activated carbon filter.
Recirculation mode, always be with activated carbon filter(s).
Recirculation mode, when activated carbon filter(s) attached, the suction power will be lowered.
Recirculation model for double motors
Extraction-air mode:
Turn the venting knob here
means venting outside
Circulating-air mode:
Turn the venting knob here
means recirculation
Venting knob position(optional)
Recirculation mode
(Double motors)
Extraction-air mode
7
CONNECTIONS
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the chimney
using either a flexible or rigid pipe ɸ 150 or ɸ 120 mm, the choice of
which is left to the installer.
 To install a ɸ 120 mm air exhaust connection, insert the reducer
flange 3 on the hood body outlet.
 Fix the pipe 4 in position using sufficient pipe clamps (not
supplied).
 Remove possible charcoal filters.
CHOOSE A VENTING MODE
Here two venting modes, extraction-air mode and recirculation mode, before installing should
be select one of them.
Extraction-air mode, the air is discharged out of the house by a pipe.
Recirculation mode, the air is purified and discharged into the house.
Information
Recirculation mode(For single motor), the cabinet needs an air vent (For one motor optional).
Recirculation mode(For double motors), always be with activated carbon filter.
Recirculation mode, always be with activated carbon filter(s).
Recirculation mode, when activated carbon filter(s) attached, the suction power will be lowered.
Recirculation model for double motors
Extraction-air mode:
Turn the venting knob here
means venting outside
Circulating-air mode:
Turn the venting knob here
means recirculation
Venting knob position(optional)
Recirculation mode
(Double motors)
Extraction-air mode
7
CONNECTIONS
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the chimney
using either a flexible or rigid pipe ɸ 150 or ɸ 120 mm, the choice of
which is left to the installer.
 To install a ɸ 120 mm air exhaust connection, insert the reducer
flange 3 on the hood body outlet.
 Fix the pipe 4 in position using sufficient pipe clamps (not
supplied).
 Remove possible charcoal filters.
CHOOSE A VENTING MODE
Here two venting modes, extraction-air mode and recirculation mode, before installing should
be select one of them.
Extraction-air mode, the air is discharged out of the house by a pipe.
Recirculation mode, the air is purified and discharged into the house.
Information
Recirculation mode(For single motor), the cabinet needs an air vent (For one motor optional).
Recirculation mode(For double motors), always be with activated carbon filter.
Recirculation mode, always be with activated carbon filter(s).
Recirculation mode, when activated carbon filter(s) attached, the suction power will be lowered.
Recirculation model for double motors
Extraction-air mode:
Turn the venting knob here
means venting outside
Circulating-air mode:
Turn the venting knob here
means recirculation
Venting knob position(optional)
Recirculation mode
(Double motors)
Extraction-air mode
7
Air extracted:
The air is discharged out of the house by a pipe.
(Carbon filters can be used but it will impact the
extraction power)
When installing the ducted version, connect the
rangehood to the chimney using either a flexible or rigid
pipe ɸ 150 or ɸ 120 mm, the choice of
which is left to the installer.
• To install a ɸ 120 mm air exhaust connection, insert the
reducer flange 3 on the hood body outlet.
• Fix the pipe 4 in position using sufficient pipe clamps
(not supplied).
• Remove possible charcoal filters.
Recirculating:
The air is purified and discharged into the house.
(Always use activated carbon filters when recirculating)
