Solt GGSSL60DR2S - Mounting Methods

11
METHOD #1
• The minimum safety distance between the cooker top and the rangehood is 650mm (some models can
be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of
the rangehood.
CAUTION
When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities
METHOD #2
• In the installation surface in cabinet don’t adapt to install the cooker hood, then as per fig, fix the position
of rangehood on the wall.
• On the wall, install 2 screws (supplied) according to the relative position of 2 key holes on the back of rangehood.
• The extent of screwing should be convenience to the next installation.
• Also install screws in the security holes, in case of front and back moving of hood, so that the using is safer.
INSTALLATION OF HOODS BUILT IN COMBI CABINETS IS THE SAME AS PREVIOUS METHOD.
CAUTION
The rangehood must not be installed and connected to flues where other appliances are installed and which run
off other energy supplied different to electricity (water heater boiled cookers (range/gas) etc.).

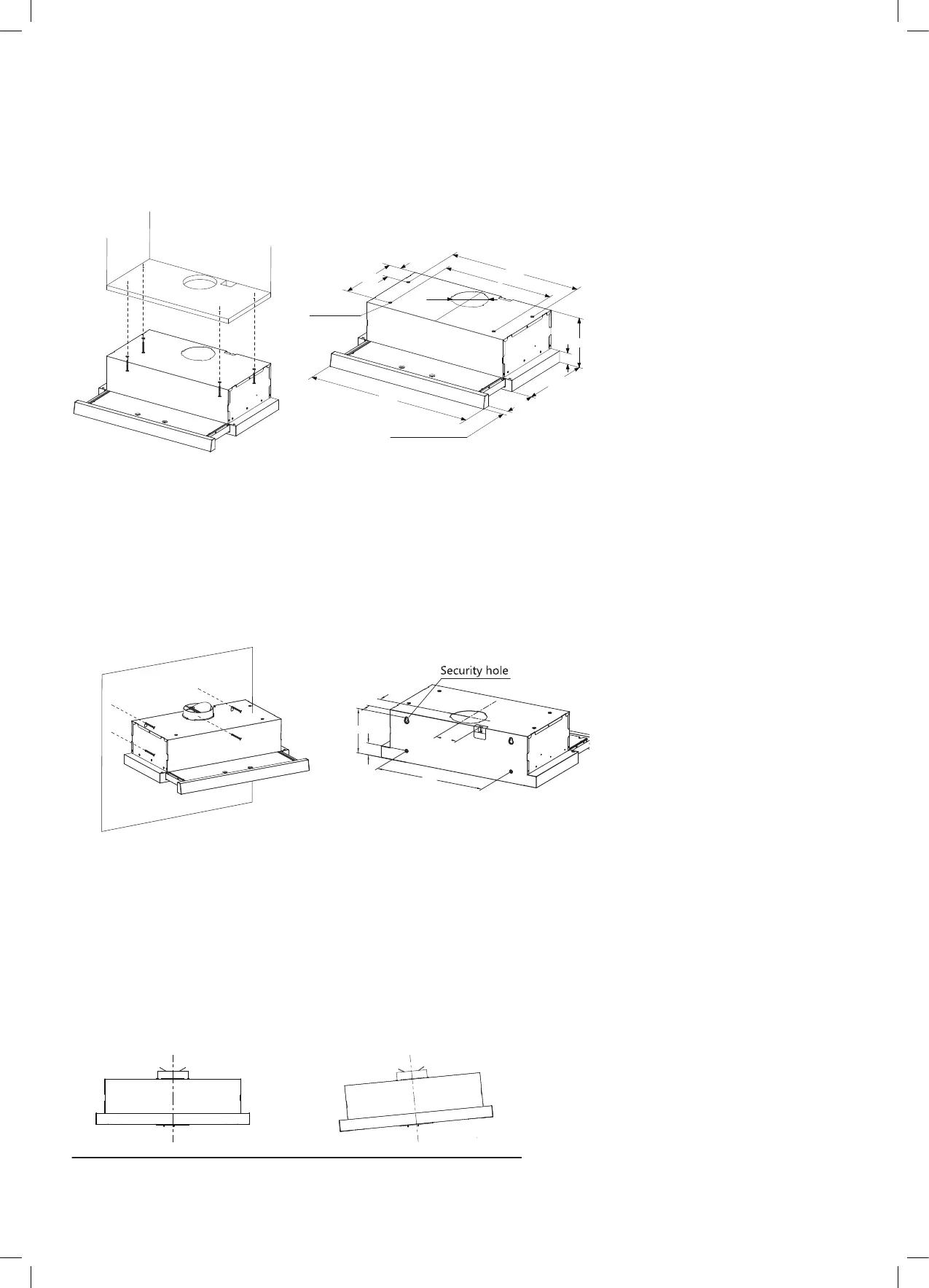

INSTALLATION
METHOD 1
Y
480
X
Ø118
175
40
280
135
240
Security hole
595
OPTIONAL 28/18
IInnffoorrmmaattiioonn
When cutting or drilling into wall or ceiling, do not damage electrical wiring or
other hidden utilities.
METHOD 2



According to the figure, make sure the position of hood in the cabinet. The wood strips
should be line up with the 4 keyholes slots on the top of the range hood. On the cabinet,
install 4 screws (supplied) according to the relative position of 4 key holes on the bottom
of hood. The extent of screwing should be convenience to the next installation.
Hang the hood and let it’s 4 key holes aim at screws, the 4 screws should be in the
narrow parts of key holes. Screws should be fasten firmly, make sure that the installation
between the hood and cabinet is enough fasten.
Install screws in the security holes, in case of front and back moving of hood, so that
the using is safer.
6
9
155
40
400
Double motors
80
5
INSTALLATION
METHOD 1
Y
480
X
Ø118
175
40
280
135
240
Security hole
595
OPTIONAL 28/18
IInnffoorrmmaattiioonn
When cutting or drilling into wall or ceiling, do not damage electrical wiring or
other hidden utilities.
METHOD 2



According to the figure, make sure the position of hood in the cabinet. The wood strips
should be line up with the 4 keyholes slots on the top of the range hood. On the cabinet,
install 4 screws (supplied) according to the relative position of 4 key holes on the bottom
of hood. The extent of screwing should be convenience to the next installation.
Hang the hood and let it’s 4 key holes aim at screws, the 4 screws should be in the
narrow parts of key holes. Screws should be fasten firmly, make sure that the installation
between the hood and cabinet is enough fasten.
Install screws in the security holes, in case of front and back moving of hood, so that
the using is safer.
6
9
155
40
400
Double motors
80
5
 In the installation surface in cabinet don’t adapt to install the cooker hood, then as per fig, fix
the position of cooker hood on the wall.
 On the wall, install 2 screws ( supplied ) according to the relative position of 2 key holes on
the back of hood.
 The extent of screwing should be convenience to the next installation.
 Also install screws in the security holes, in case of front and back moving of hood, so that the
using is safer.
IInnssttaallllaattiioonn ooff hhooooddss bbuuiilltt iinn ccoommbbii ccaabbiinneettss iiss tthhee ssaammee aass pprreevviioouuss mmeetthhoodd..
IInnffoorrmmaattiioonn
The cooker hood must not be installed and connected to flues where other appliances are
installed and which run off other energy supplied different to electricity(water heater boiled
cookers(range/agas)etc.).
Right Wrong
IInnffoorrmmaattiioonn
Congratulations on the purchase our cooker hood which is designed to include many superior
features that permit you the fullest expression of your living. Before installing and/or using the
cooker hood carefully read all the instruction.
