SOLTEK SL-67EV1 - Motherboard Layout

67EV1
6

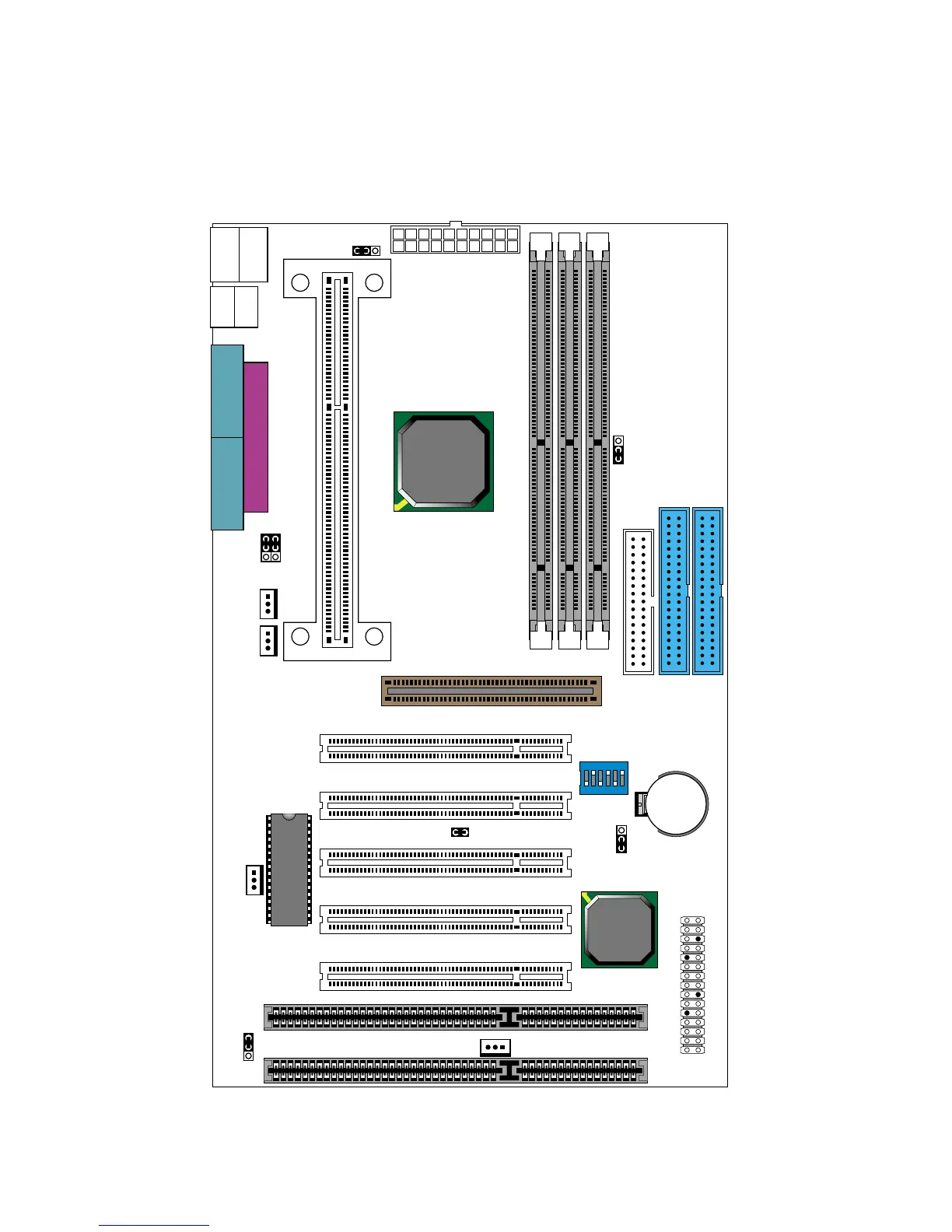

1-8 MOTHERBOARD LAYOUT
• DEFAULT SETTING: Celeron 300/66MHz, Pentium II / Pentium !!! 450/
100MHz.
NOTE: FOR 100 / 133MHz CPU ENVIRONMENT, THE SDRAM MUST COMPLY WITH PC-100 / PC-
133 SPEC.
1 3
JP3   JP4
3 1 3 1
JP2
3



1
JBAT1
3



1
JP6
1



3
JP7
JVGA1
PFAN1
JWOL1
SFAN1
CFAN1
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
HDD/LED
SPK RESET KEYLOCK SUSLED
IR PWR/SW
IDE 2 IDE 1
FDD
DIMM 1 DIMM 2 DIMM 3
15 15
USB0 USB1
PS/2 MOUSE PS/2 K/B
LPT1
COM2 COM1
AGP
Li
Battery
SLOT 1
ATX POWER
ISA 1
ISA 2
FLASH BIOS
SW1
ON DIP
1 2 3 4 5 6
VIA
693A
VIA
596B
J2 J3
