2-2 SYSTEM MEMORY CONFIGURATION
• This VIA 693 Apollo Pro Plus motherboard supports 168pin DIMM of 4MB,
8MB, 16MB, 32MB, 64MB and 128MB to form a memory size between
8MB up to 768MB (SDRAM). VIA 693 Apollo Pro Plus chipset provides
“Table-Free” function. It means that users can install DRAM with any
configuration and in any bank, and that is why the DRAM table is not needed
but do remember that the DRAM must be 3.3V type. For 100 / 133MHz
CPU environment, the SDRAM specification must comply with PC-
100 / PC-133 spec.

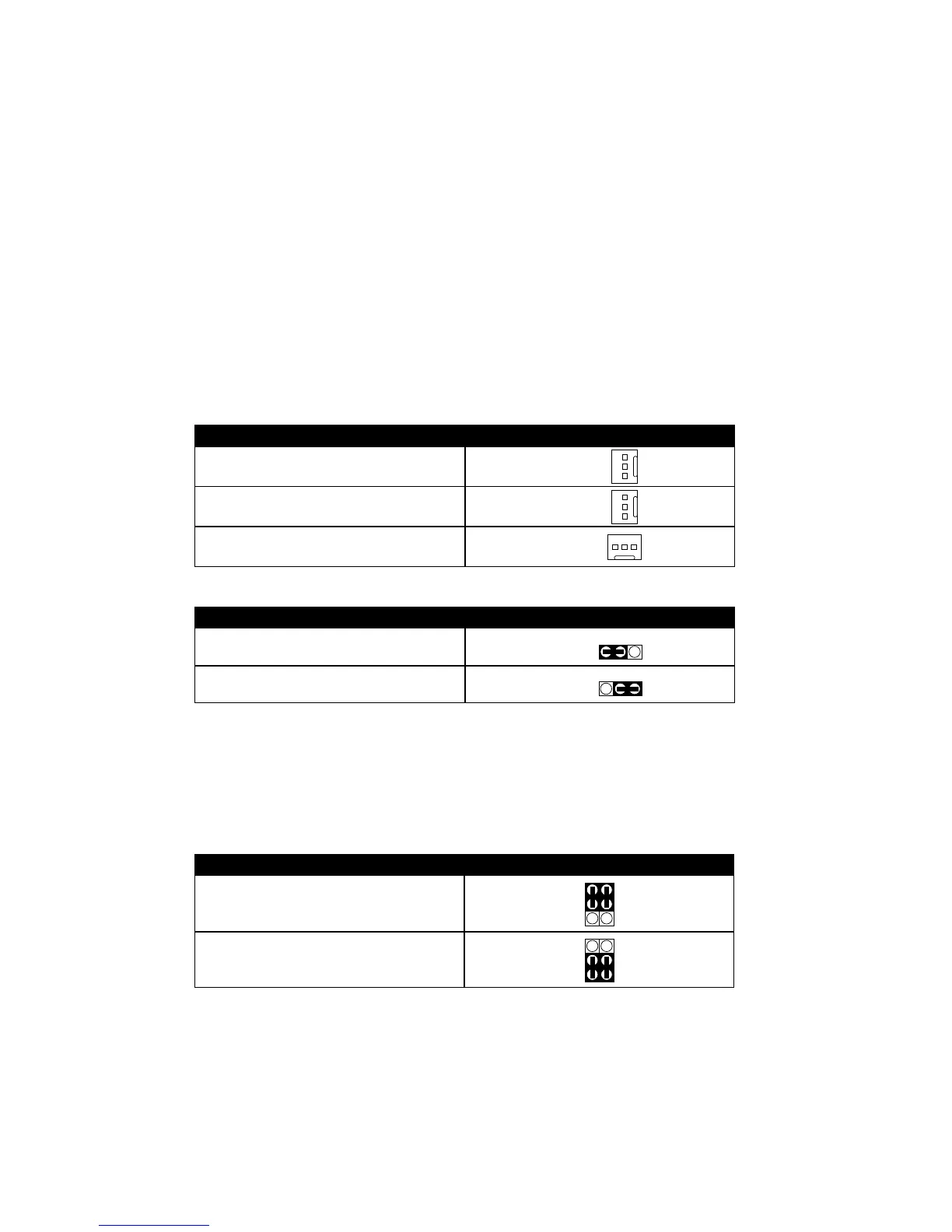

2-3 JUMPER SETTINGS
CPU FAN
CFAN1/SFAN1/PFAN1: ONBOARD FAN (12V)
SFAN1
CFAN1
SYSTEM FAN
PFAN1
CHASSIS FAN
NOTE : • If the JP2 is fixed by jumperwire, then the motherboard doesn’t sup-
port keyboard power on function.
• When the keyboard power on function shows any compatible problem,
choose Disabled and report to the keyboard vendor/manufacturer.
• Keyboard power on function must be set from the BIOS. Refer to the
“Integrated and Peripherals” section in the Chapter 3.
Disabled (default)
JP2: KEYBOARD POWER ON
1 3
JP2
Enabled
1 3
JP2
Redirect all USB ports to USB
connector (default)
JP3/JP4: USB PORT SELECT
1
3
1
3
JP3 JP4
Redirect USB1 to AGP port
1
3
1
3
JP3 JP4
