4 Assembly
4.1 Unpacking, storage and transportation
Inspect the actuator for transport damage when unpacking. The protective caps
on the connections must only be removed immediately before assembly. The
actuator must be stored on an suitable base on a dry, cold and clean place and be
protected against dirt until installed, see also Technical Information sheet, Ti-935
that is available at www.somas.se.
Warning!
When transporting and handling the actuator, observe the weight of the actuator or of the
whole unit. Never lift the valve by its positioner, limit switch, solenoid valve or piping. Place the
hoisting ropes securely according to lift instruction.
The actuator may injure persons if dropped.
Do not walk under suspended loads.
•
Transportation must be carried out with suitable hoisting equipment
•
Use lifting straps to lift the actuator, when this is installed on the valve
(
➔ Fig.4-1). The picture shows a standard situation. Please note that all
possible situations that can occur cannot be covered in this lift instruction

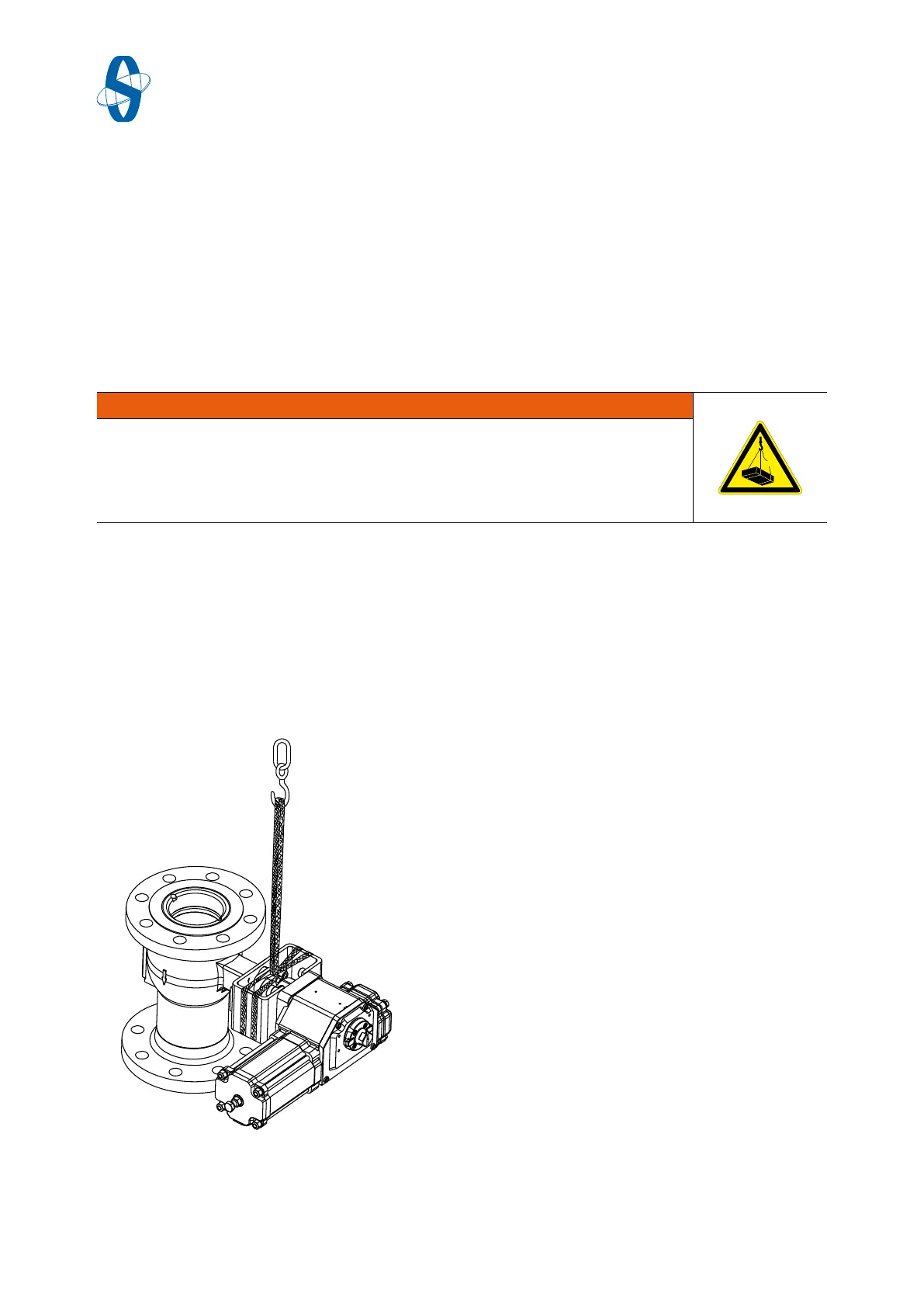

Fig.4-1 Lifting
