5.3.2 Double-acting actuator types A13, 23, 33, 43 - DA
1 Nut 6 Washer 11 O-ring 16 Washer
2
2 Washer 7 Guide ring 12 Piston seal 17 Screw
3 End cover 8 Piston disc 13 O-ring
1
18 Front end cover
4 Cylinder tube 9 Piston rod seal
1
14 O-ring 19 Tie-rod
5 Screw 10 O-ring 15 Nut
2
20 O-ring
1
O-ring + PTFE-ring
2
Not available for A13-DA

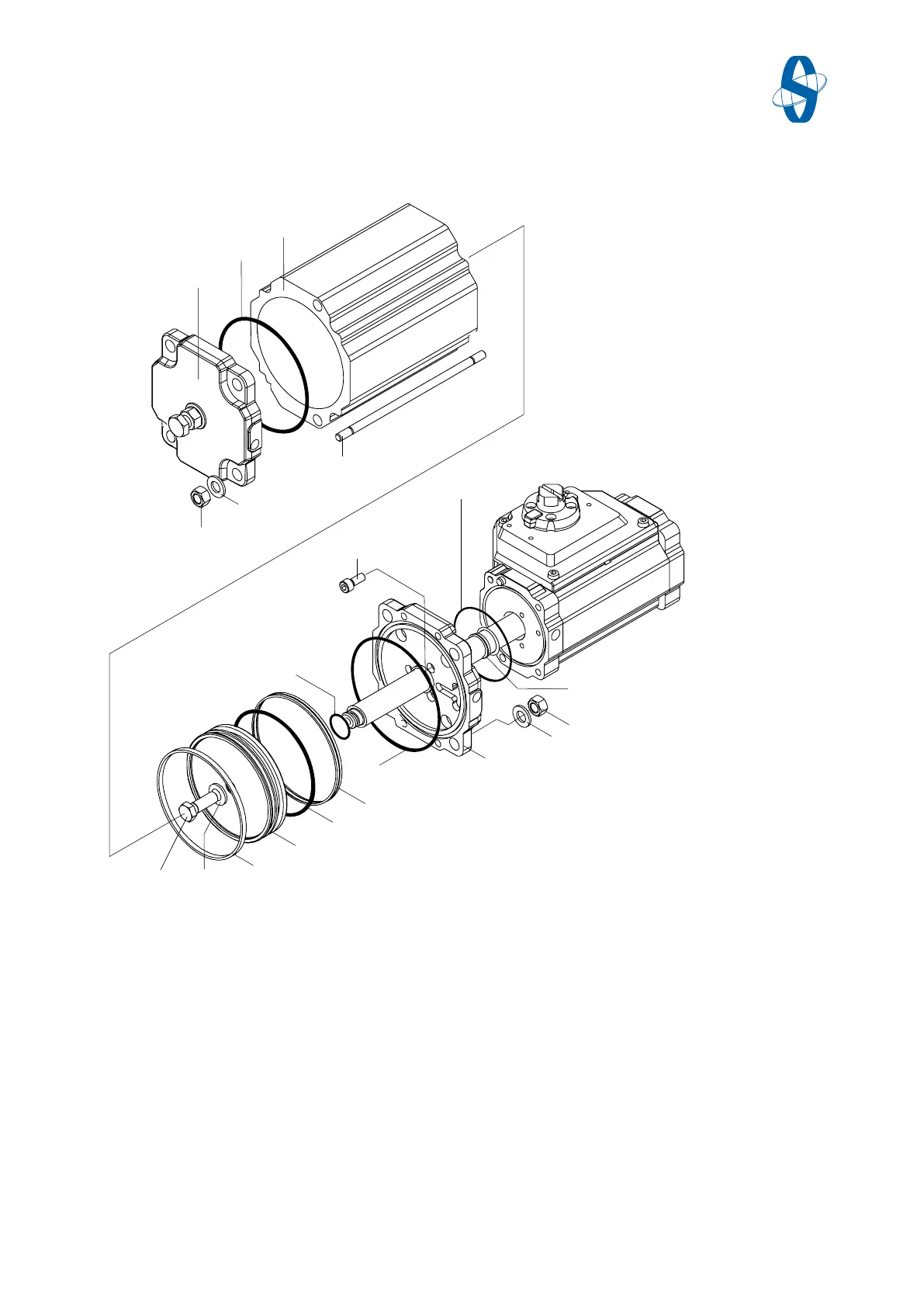

Fig.5-2 Replacing the sealing kit
