5.6 Components
5.6.1 Actuator type A-DA
1 Screw 16 Washer 26 Washer 40 Piston seal
2 Driver 16a Wave spring washer 27 End cover 41 O-ring 5 Cover
1
17 Swivel bolt 28 Gasket 42 Piston
6a Screw
1
18 Pivot pin 29 Housing 43 Guide ring
6b Nut
1
19 Screw 31 Bushing 44 Washer
8 Cover 20 Link arm 32 Piston rod seal, cpl. 45 Screw 9 Screw 21 Clampring(D≤50) 33 Sealing bracket 46 End cover
10 Gasket 22 Screw 34 Screw 47 Washer
11 Bushing 23 Adjusting screw 35 O-ring 48 Nut
12 O-ring Nut 36 Tie rod 49 O-ring
13 Lever 24 Adjusting Screw 37 Cylinder tube 50 Screw 14 Bushing Nut 38 Piston rod 51 Grounding cable 15 Locking ring 25 Screw 39 O-ring
1
From actuator size 3

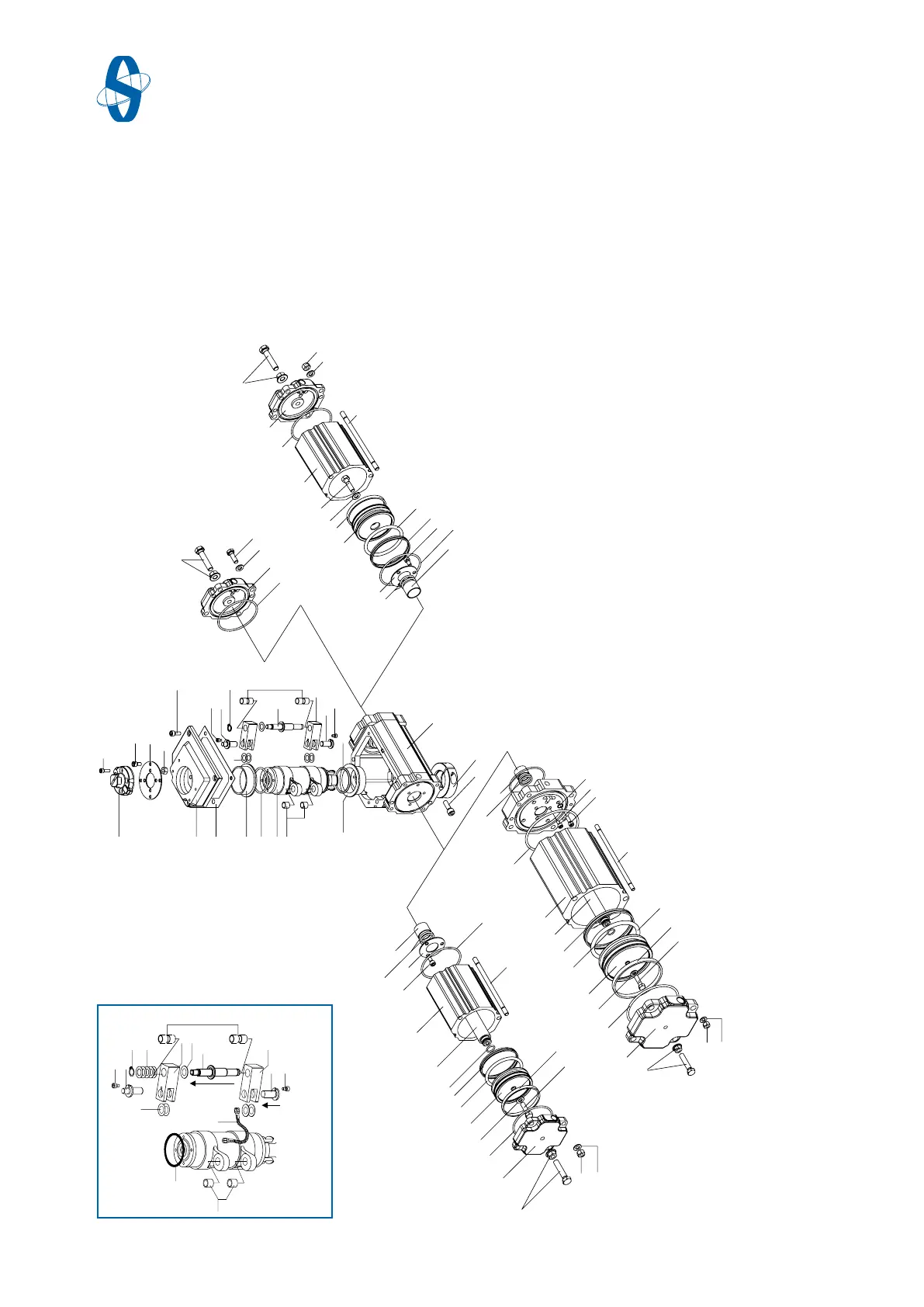

Fig.5-8 Actuator type A-DA
Pos.No. 28, 32, 35, 39, 40, 41 and 43 are included in the sealing kit. ATEX: Pos.No. 10, 12, 28, 32, 35, 39, 40, 41 and 43 are included in the sealing kit. Pos.No. 10, 11, 12, 14, 15, 16, 17, 18, 20, 28, 31, 32, 35, 39, 40, 41, 43 are included in the repair kit. ATEX: Pos.No. 10, 11, 12, 14, 15, 16, 16a, 17, 18, 20, 28, 31, 32, 35, 39, 40, 41, 43 and 51 included in the repair kit
