SOMFY Compact - English; Description and Technical Data; Maintenance

SOMFY COMPACT
Read carfully these instructions
befor any use.
5012702A
GB
The external three phase SOMFY COMPACT 120/25 motor is particularly aimed at the motorization of shutters, grilles and sectional doors.
These instructions cover all the basic components for the connection and adjustment of the external SOMFY COMPACT.

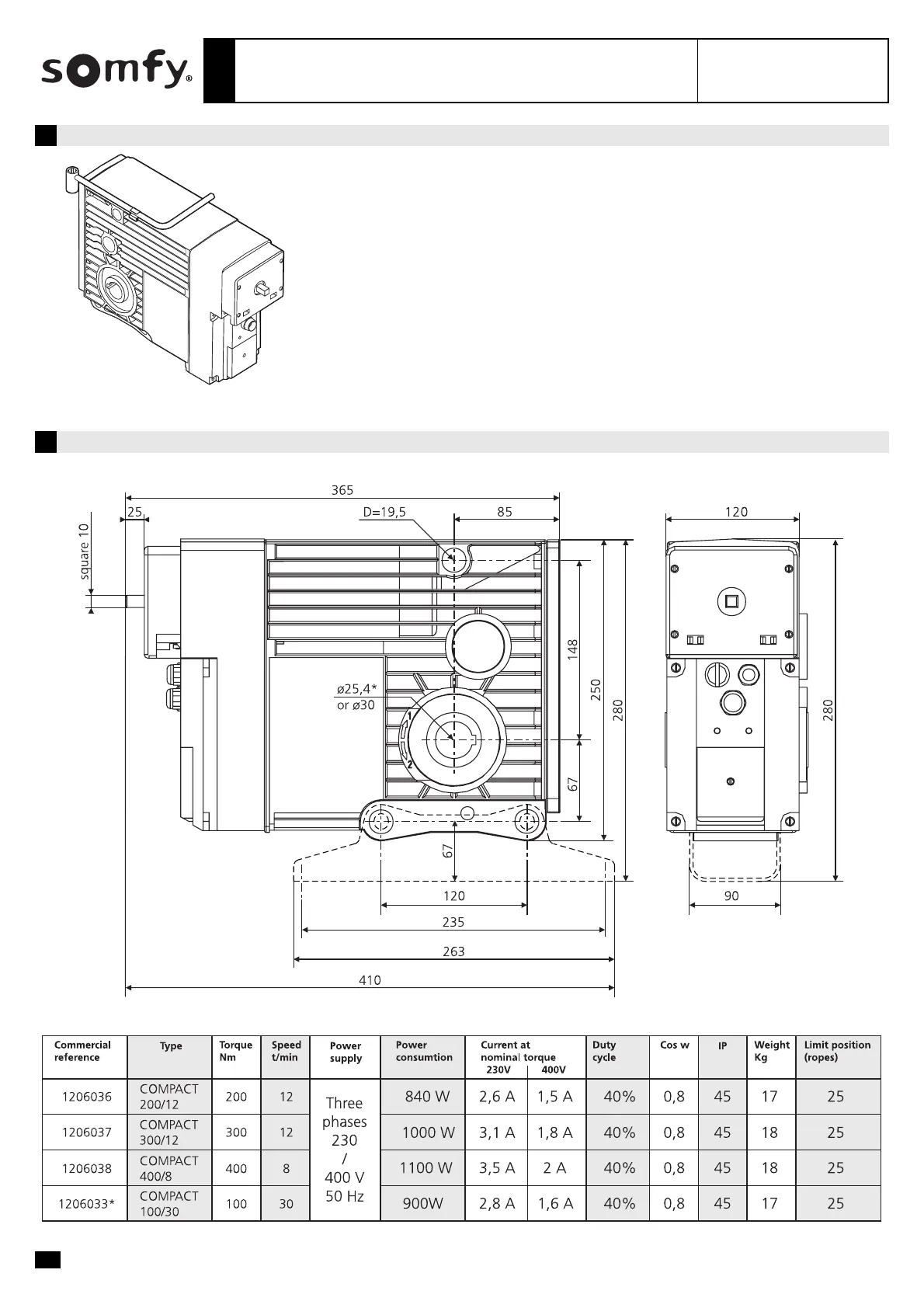

1.1 Dimensions (mm)
. 1. Description and technical data page 1
. 2. Change of power supply (230V – 400V) page 2
. 3. Installation of Somfy COMPACT page 3
. 4. Wiring of Somfy COMPACT page 4
. 5. End limit switch Adjustment page 5
. 6. Accessories page 6
. 7. Maintenance page 6
S.A.S. au capital de 5 000 000 € - Z.I. Les Giranaux - BP71 - 70103 Arc-Les-Gray CEDEX - RCS GRAY B 425 650 090 - SIRET 425 650 090 00011 - n° T.V.A CEE FR 87 425 650 090
1
Description and technical data
.
Table of contents
1.2 Technical data
* Motor for sectional doors.
1/5
