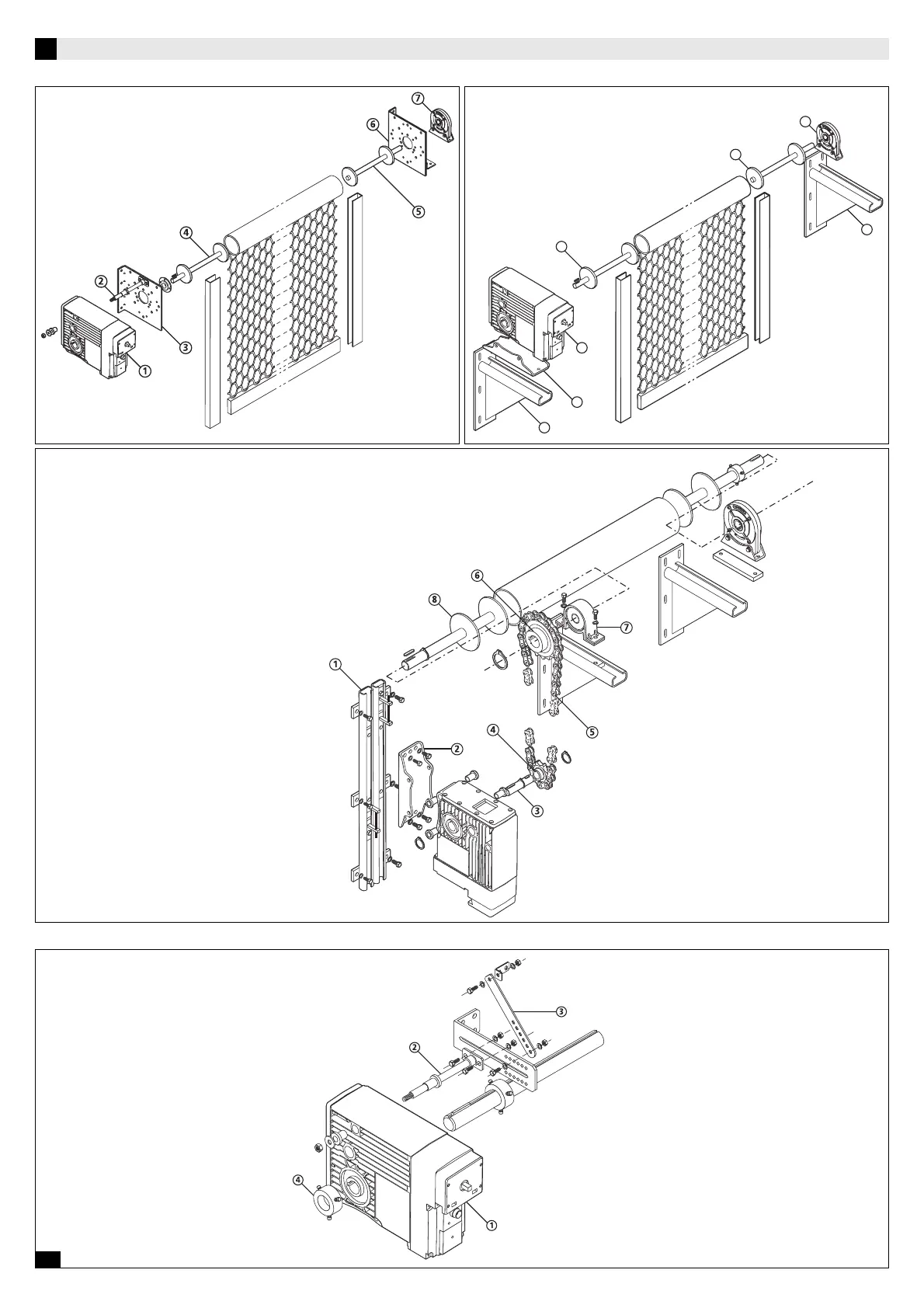

Installation of SOMFY COMPACT
• 1. SOMFY COMPACT
• 2. Block rod (réf. : 9146521)
• 3. Plate motor side
• 4. Adjustable bobbin with key
• 5. Adjustable bobbin with key
• 6. Plate opposite side
• 7. Safety brake
• 1. SOMFY COMPACT
• 2. Mounting bracket (réf. : 9146500)
• 3. Bracket (réf. : 9146510)
• 4. Adjustable bobbin with key
• 5. Adjustable bobbin with key
• 6. Bracket opposite side (réf. : 9146510)
• 7. Safety brake
3.1 Grills and shutters
Installation with braket :Installation with block rod :
• 1. Chain adjuster bracket to be screwed (x1)
• 2. Mounting bracket (x1)
• 3. ø30 Shaft (x1) (with 2 slinding keys + 3 circlips)
• 4. Pinion 19 sprockets (boring ø30mm) (x1)
• 5. 1,5m chain and end-fastening (x1)
• 6. pinion 38 sprockets (boring ø50mm) (x1)
• 7. bearing (ø50mm bore) (x1)
• 8. ø50mm shaft (x1), washers (not delivered), + 1 slinding key and 2
circlips)
Installation with chain :
• 1. SOMFY COMPACT
• 2. Block rod (réf. : 9146521)
• 3. Bracket + screw and bolts (réf. : 9146587)
• 4. Stop ring ø30 (réf. : 9146583)
3.2 For sectionnal doors
