SOMFY LS40 - Option 3: Animeo IB+ Controller

Motorisation of Window Coverings
using Somfy Motors
Integration to BMS using LS40 or LT50
Option 3

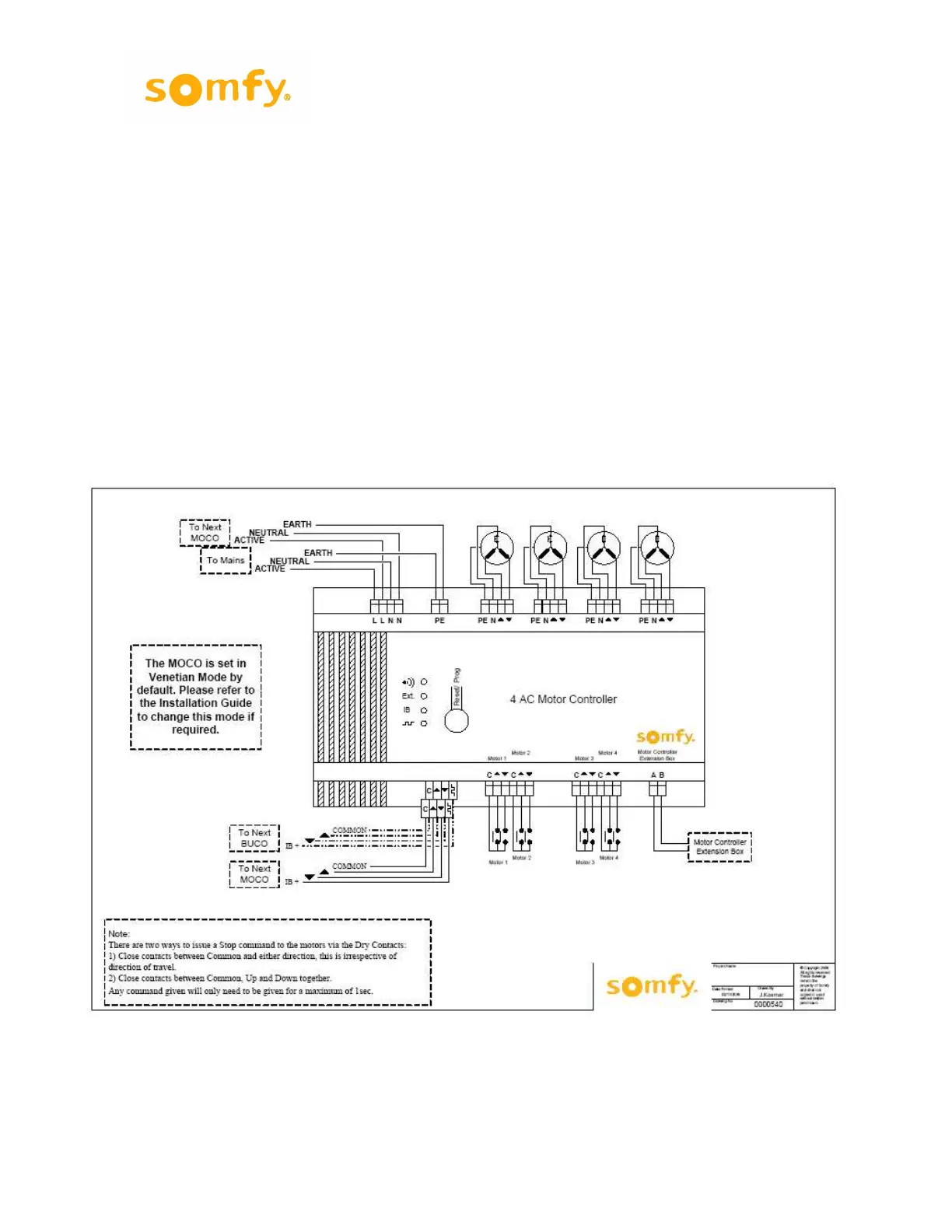

Animeo IB+ AC Motor Controller
• Requires 240V power supply and has 240V latched output
•
Provides interlocking between up and down commands
• Dry contact impulse switching (impulse contact closure of 1 second minimum)
•
Contact between common and up or common and down to activate motor
• Simultaneous contact between a common up and down to create a stop
• Allows for group and individual control of up to 4 motors
• Surface or DIN rail mountable - 12 DIN rail slots
• Dimensions: 180 (h) x 250 (w) x 63 (d)
