Motorisation of Window Coverings
using Somfy Motors

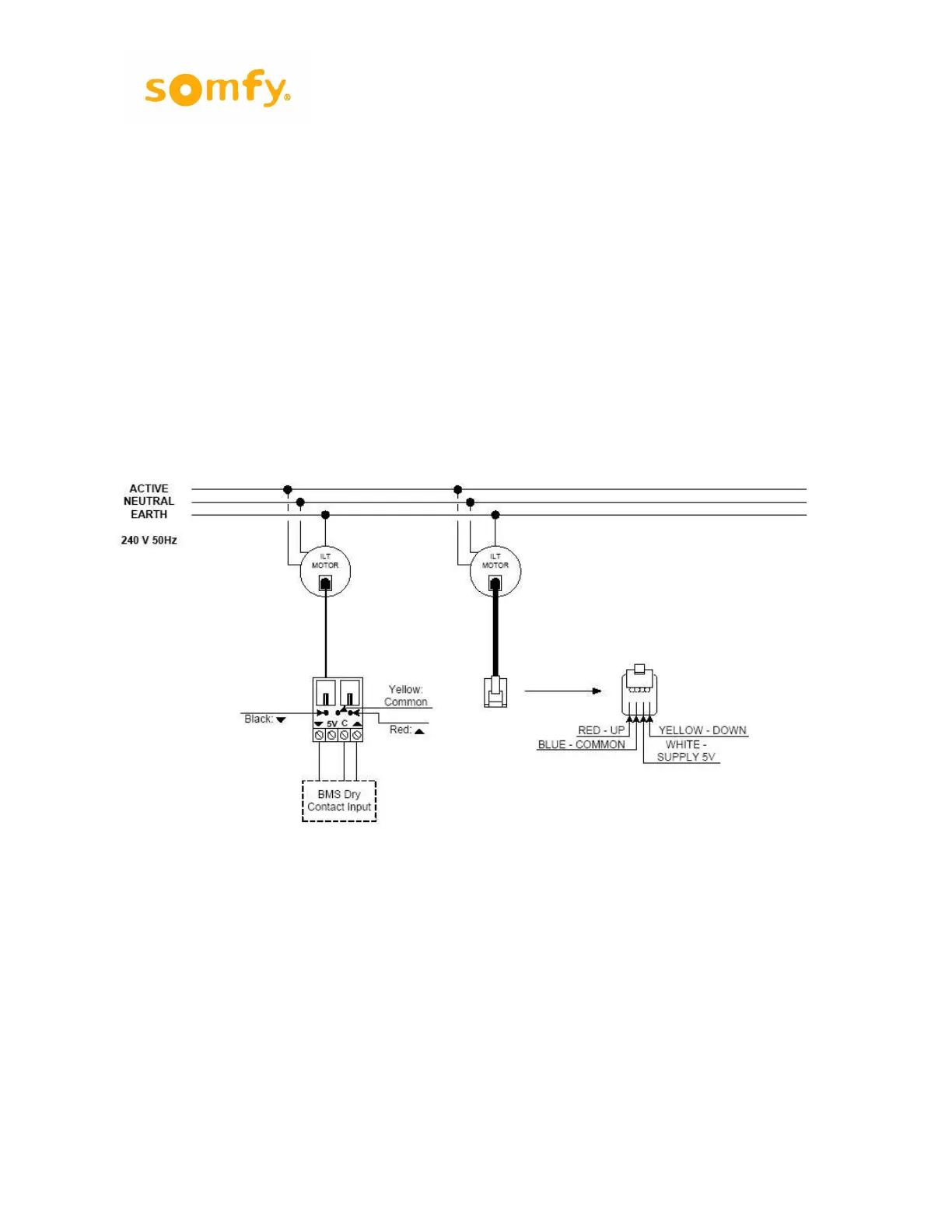

Integration to BMS using ILT motors
Phone Plug Connector
• Allows for connection between RJ11 connector and standard data cable
• Dry contact impulse switching (impulse contact closure of 1 second minimum)
• Contact between common and up or common and down to activate motor
• Simultaneous contact between a common up and down to create a stop
• Dimensions: 50 (h) x 45 (w) x 17 (d)
