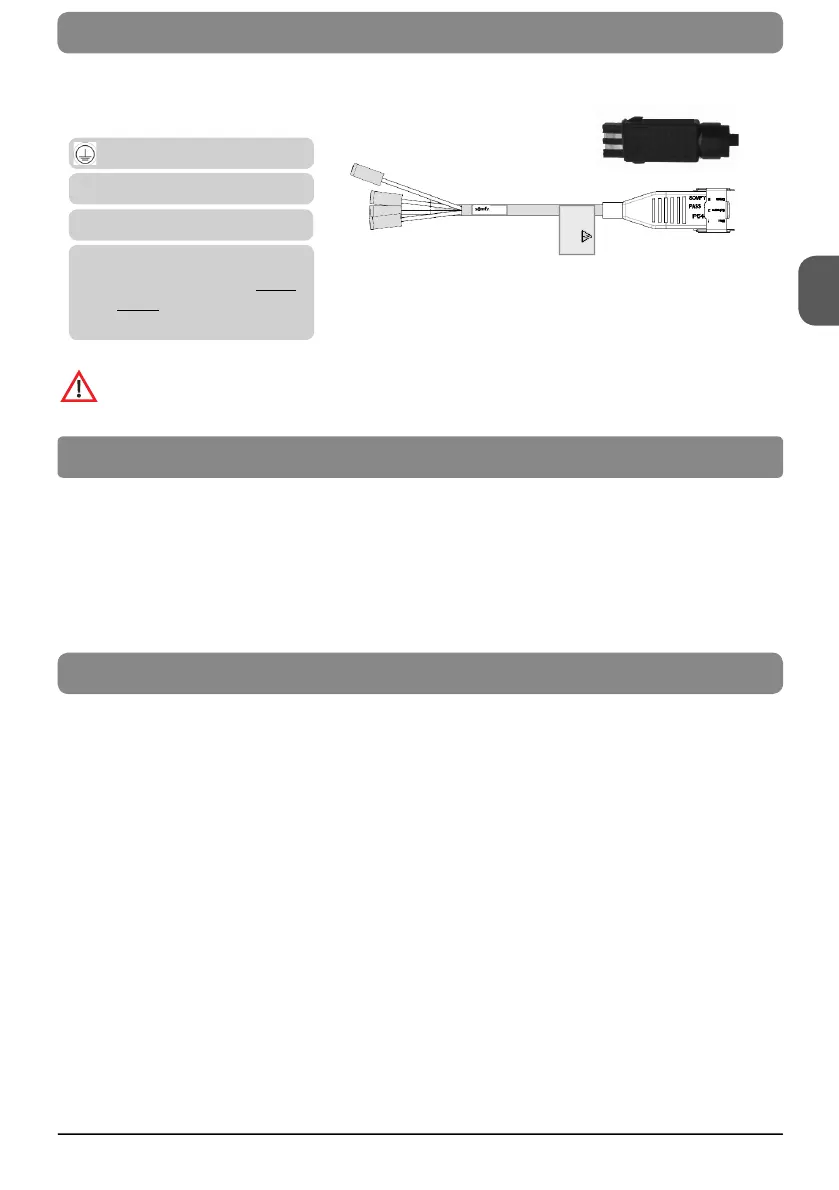

3 Connecting a motor
Before installation, please read and follow these instructions. An incorrect installation can lead to serious injury.
A declaration of conformity is available at www.somfy.com/ce
(„Universal Setting Cable Plug“ & „Adaptercable
PASS S“).
Subject to technical modifications.
Don‘t use the setting cable for permanent operation of the motor. It has to be removed after
completion of adjustment!
Earth wire green/yellow
N Neutral wire blue
▲ UP-movement black
▼ DOWN-movement brown
When connecting a radio
motor (RTS/io), this termi-
nal remains blank!!
Connecting the motor directly or by the adapter cable
Art. No. 9 015 951 (contained in the scope of supply).
4 Kit
The Kit 9 015 971 (EN) / 9 016 772 (CH) contains:
1 Setting cable USC - 9 015 577
1 Adapter cable PASS S - 9 015 951
1 Installation guid - 5 064 640
