Type 8221, 8212, 8142 & 8091 HPT
Type 8182 HPT Modems
HPT Variants
UM-8142
Issue B Rev 1
Section 4 – Installation and Deployment 31
4.6 USBL Transceiver Interconnections
4.6.1 Interconnection Cables
Table 4-2 lists the USBL transceiver interconnection cables available. Cables are also available in
different lengths (refer to the Drawing No.).
Table 4-2 Cable Types for USBL Transceiver Interconnections
USBL Transceiver CPN
Drawing No.
Description Reference
Type 8221/8212 820-6793 8024-044* Amphenol to AGP Cable Assembly (30 m)
Appendix A.6
Type 8221/8212 820-0331 8212-061* Amphenol to AGP Cable Assembly (30 m)
Appendix A.7
Type 8142/8182/
Variants
820-3427 7769-038 8-Way AGP Tail (30 m)
Appendix A.8
312-8092 8130-200 16-Way AGP Tail (30 m)
Appendix A.9
820-3650 7784-159 5-Way Lemo I/O Tail (5 m)
Appendix A.10
820-6459 8020-061 8-Way Lemo NSH Tail (5 m)
Appendix A.11
*There are currently two alternatives of cable for this transceiver
4.6.2 Type 8221/8212
The Type 8221/8212 USBL Transceiver interconnections are shown below.

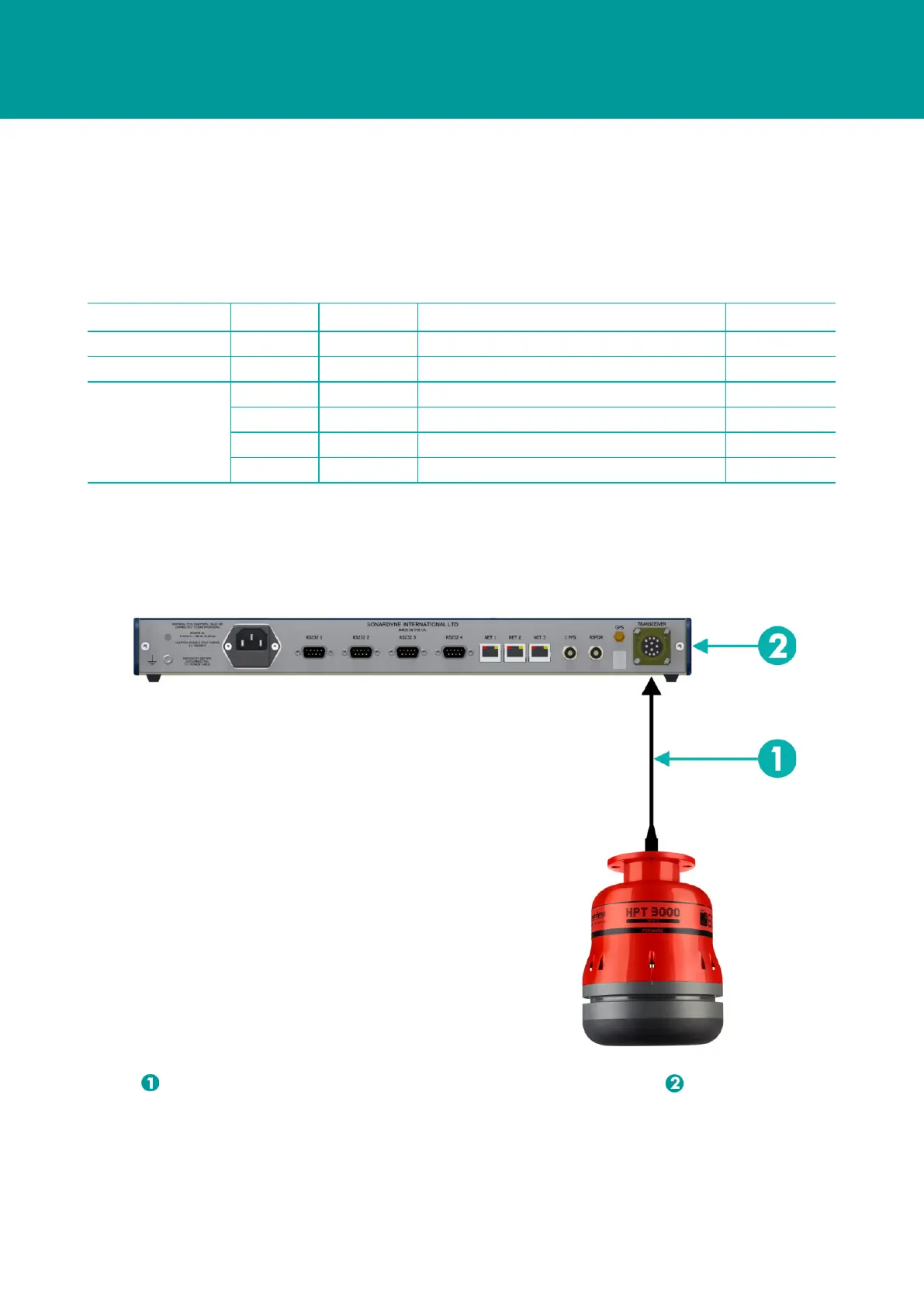

Figure 4-12 Type 8221/8212 USBL Transceiver Interconnections
CPN 820-6793 (30 m) Cable Assembly (see the following note and
Appendix A.6), or
CPN 820-0331 (30 m) Cable Assembly (see Appendix A.7)
ESH
