Type 8221, 8212, 8142 & 8091 HPT

Type 8182 HPT Modems

HPT Variants

UM-8142

Issue B Rev 1

Section 4 – Installation and Deployment 36

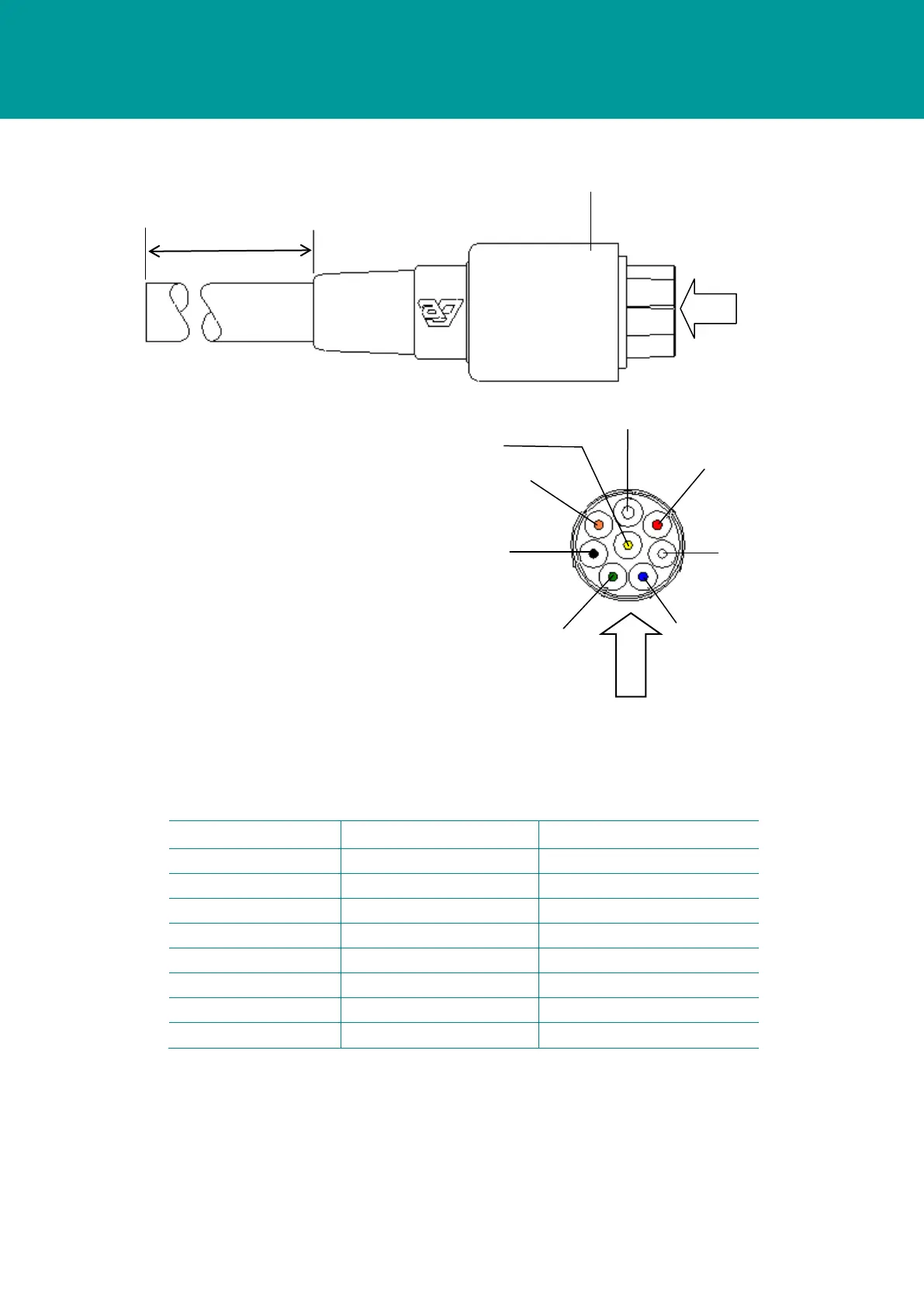

Figure 4-16 Ethernet Configuration – 8-Way AGP Connector – DWG 7769-038

Table 4-7 Ethernet Configuration – 8-Way AGP Connector – DWG 7769-038

Connector Pin Cable Colour Function

1 Screen Screen

2 Red Power +

3 White Ethernet Tx Data +

4 Blue Ethernet Tx Data -

5 Green Trigger

6 Black Ground and Power Return

7 Orange Ethernet Rx Data +

8 Yellow Ethernet Rx Data -

5 to 100 m

0.5

820-3427 (30 m)
