Sonardyne 8221 HPT - Figure 4-15 USBL Transceiver Interconnections RS232 Configuration - Command and Data (Modem or Special Applications); Table 4-6 USBL Transceiver Interconnections RS232 Configuration - Command and Data

Type 8221, 8212, 8142 & 8091 HPT
Type 8182 HPT Modems
HPT Variants
UM-8142
Issue B Rev 1
Section 4 – Installation and Deployment 35

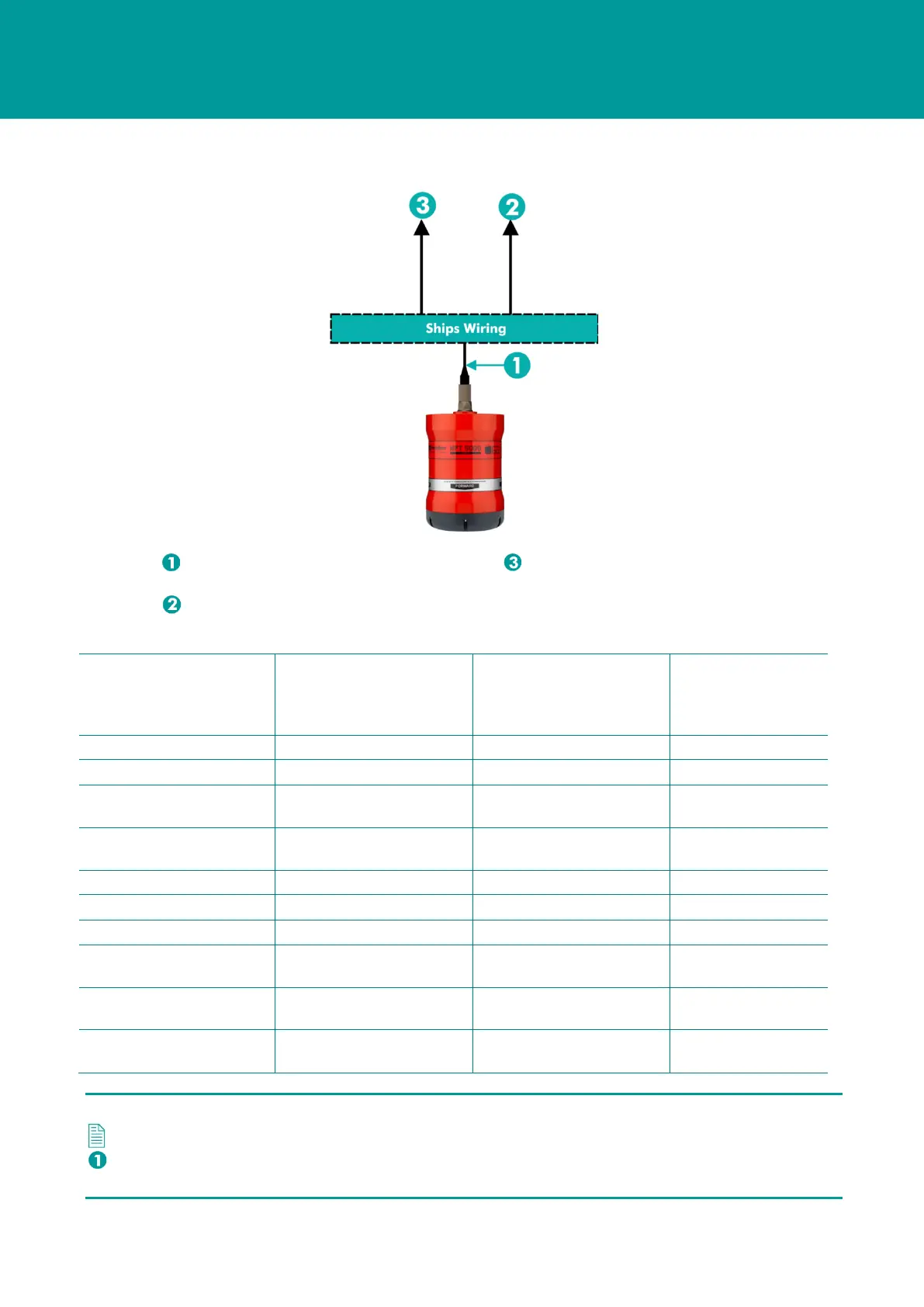

Figure 4-15 USBL Transceiver Interconnections RS232 Configuration – Command and Data
(Modem or Special Applications)
CPN 820-3427 (30 m) See Note 3
(8-Way AGP Transceiver Connector)
Users Command Port and Power
Connection
Users Data Port Connection
Table 4-6 USBL Transceiver Interconnections RS232 Configuration – Command and Data
Function Command Port
Connection, and Power
Ships Wiring
(details can be added for
reference by operator)
AGP USBL
Transceiver
connector
CPN 820-3427
TCVR_+48 V (Pin 8) Red
TCVR_RTN (Pins 6 & 7) Black
RS232 RX
(wrt transceiver – Pin 1)
White
RS232 TX
(wrt transceiver – Pin 2)
Blue
Signal GND (Pins 3 & 4) Green*
Screen Screen Screen
Data port connection
RS232 RX
(wrt transceiver – Pin 1)
Orange
RS232 TX
(wrt transceiver – Pin 2)
Yellow
Signal GND Green* (same as
above)
Note 3
For type 8142-000-31 and 8142-000-32 transceivers:
CPN 312-8092 16-Way AGP Transceiver Connector.
See
Figure 4-18 for AGP transceiver connector colours.
