Sonardyne 8221 HPT - CPN 820-6459;DWG 8020-061 8 Pin Lemo to Flylead

105 pages

Save Page as PDF

To Next Page

To Previous Page

Type 8221, 8212, 8142 & 8091 HPT

Type 8182 HPT Modems

HPT Variants

UM-8142

Issue B Rev 1

Appendix A – Type 8221/8212/8142/8182 Drawings 77

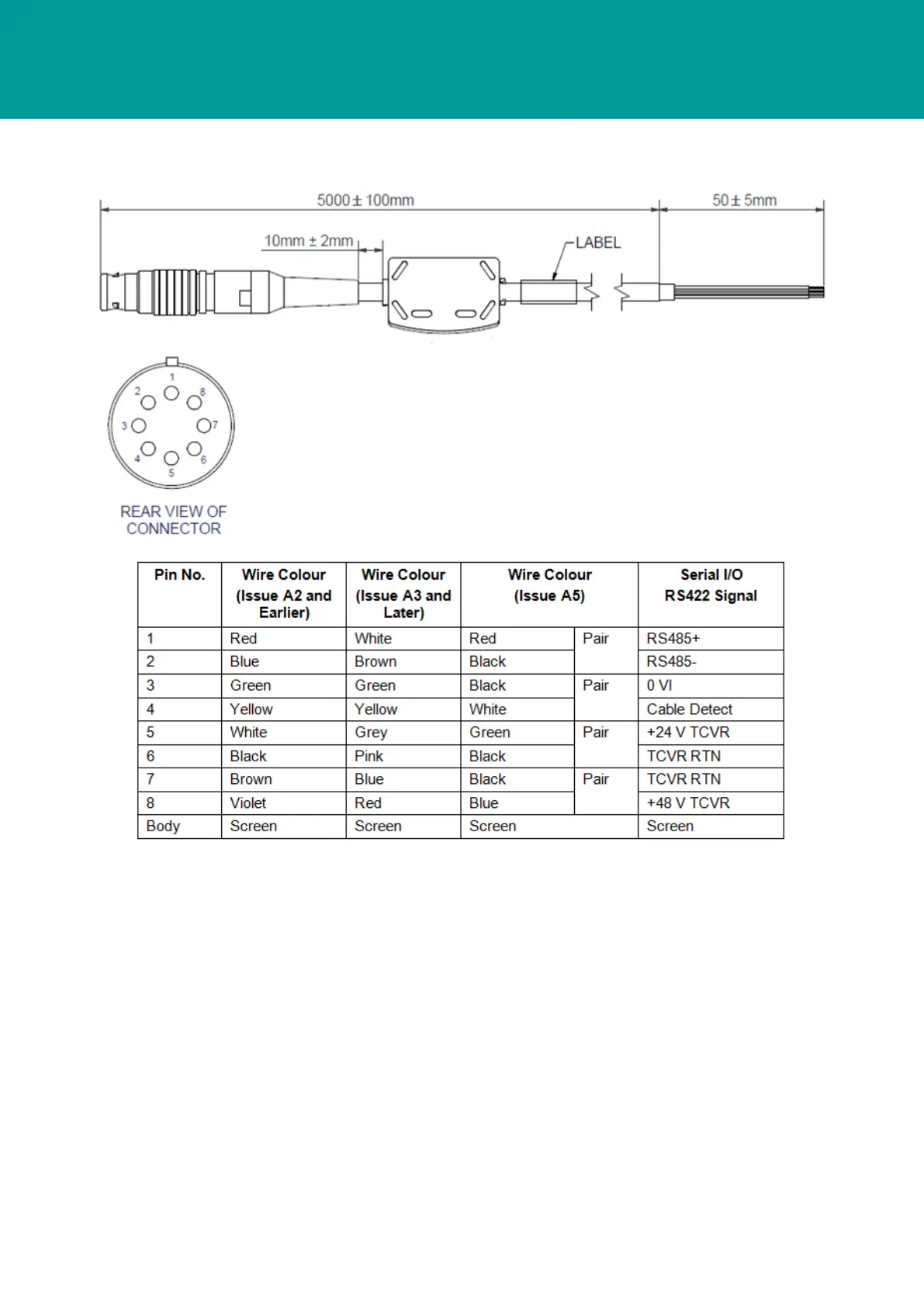

A.11 CPN 820-6459/DWG 8020-061 8 Pin Lemo to Flylead

Main Page
