Inner Assembly

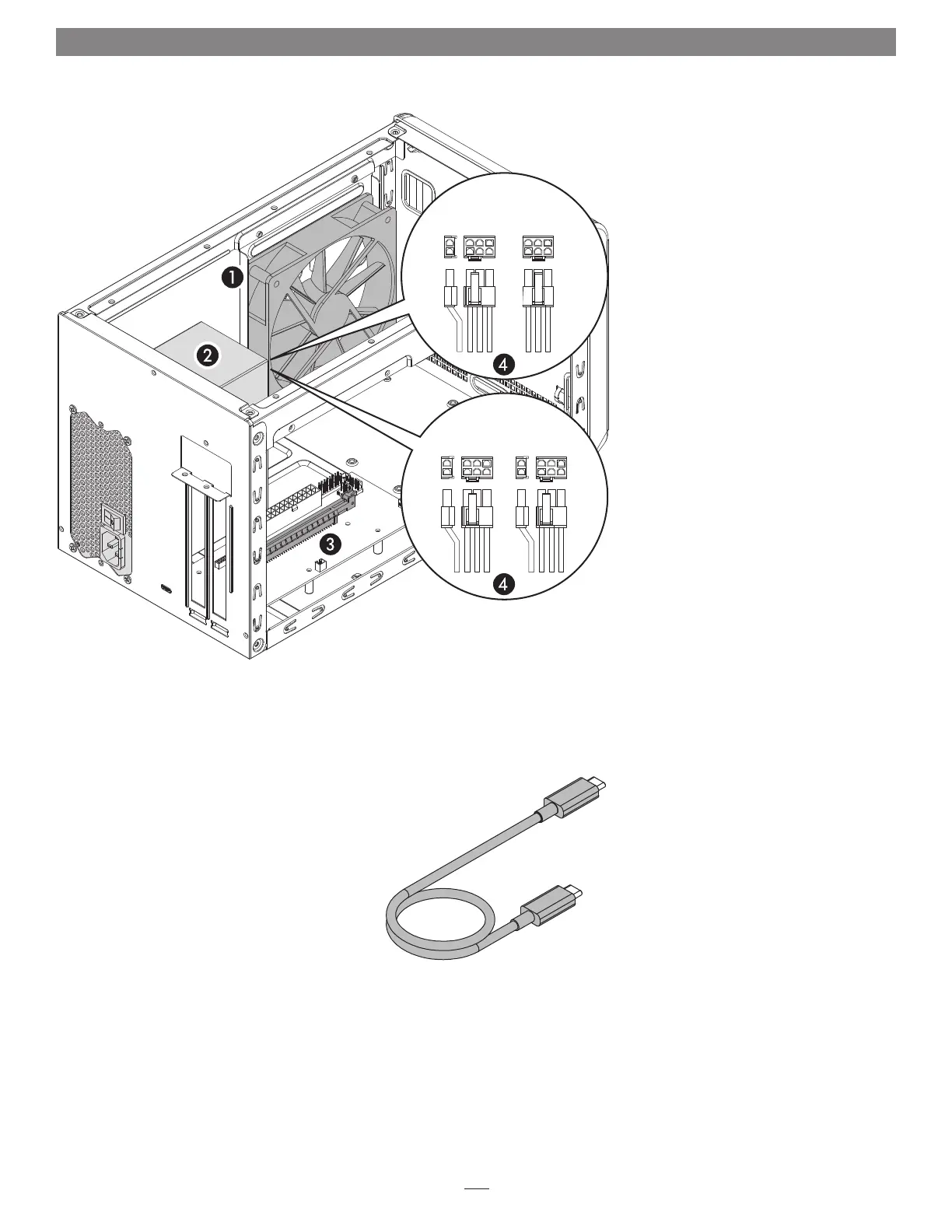

1 – Main Fan
This temperature-controlled fan
provides cooling for the installed card
and the chassis’ supporting circuitry.
It operates at a whisper when the card
is running cool, and automatically
speeds up in steps as the temperature
rises. Do not block the fan or the
vent holes on the chassis to prevent
overheating.
2 – Power Supply
This provides power for the installed
card and all supporting circuitry
inside the box. The power supply
has its own fan that operates
independently from the main fan. Do
not block the fan or the vent holes on
the chassis to prevent overheating.
3 – PCIe Slot
This is an x16 mechanical (x4
electrical*) PCIe 3.0 slot.
4 – Auxiliary Power Connectors
Should the card you install require
auxiliary power, plug in the necessary
connectors to provide the required
power. eGFX Breakaway Box includes
one 8-pin (6+2 pin) connector,
plus one 6-pin connector. eGFX
Breakaway Box 550 includes two
8-pin (6+2 pin) connectors.
Thunderbolt 3 (40Gbps) Cable
Connect this cable between the
Breakaway Box and your computer.
* Thunderbolt 3 specification
Chapter 2 – eGFX Breakaway Box Description
PCIe 6+2 Pin
Breakaway Box
PCIe 6+2 Pin PCIe 6+2 Pin
Breakaway Box 550
PCIe 6-Pin
