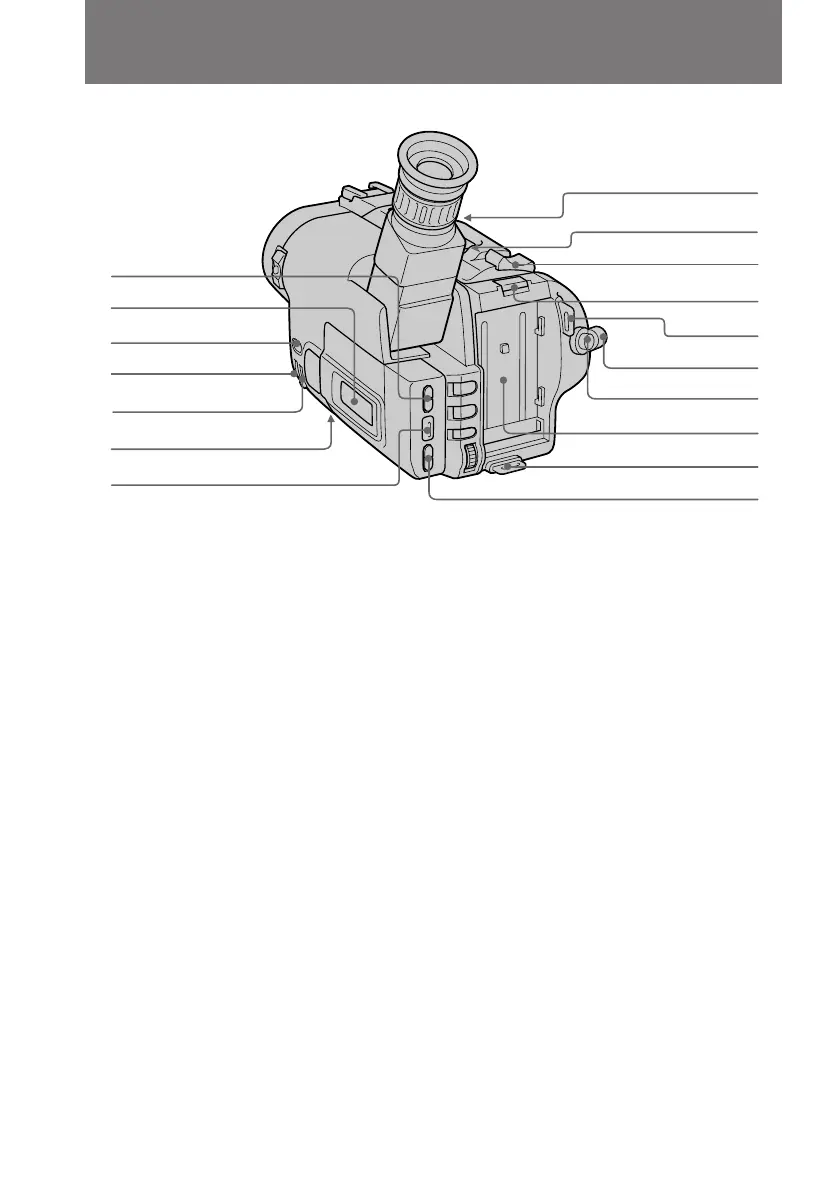

Identifying the parts
1
2
3
4
6
5
7
8
9
!º
!¡
!™
!£
!¢
!∞
!§
!¶
1 LCD BRIGHT button (p. 15)
2 Display window (p. 76)
3 FADER button (p. 30)
4 NEAR/FAR dial (p. 36)
5 FOCUS switch (p. 36)
6 Tripod receptacle (p. 17)
Make sure that the length of the tripod
screw is less than 6.5 mm (9/32 inch)
otherwise, you cannot attach the tripod
securely and the screw may damage the
camcorder.
7 OPEN button (p. 15)
8 Viewfinder lens adjustment ring
(p. 11)
9 Eyecup RELEASE knob (p. 60)
!º Power zoom lever (p. 13)
!¡ BATT RELEASE (PUSH) lever (p. 8)
!™ Hook for shoulder strap (p. 75)
!£ STANDBY switch (p. 10)
!¢ START/STOP button (p. 10)
!∞ Battery mounting surface
!§ Hook for shoulder strap (p. 75)
!¶ VOLUME button (p. 20)
