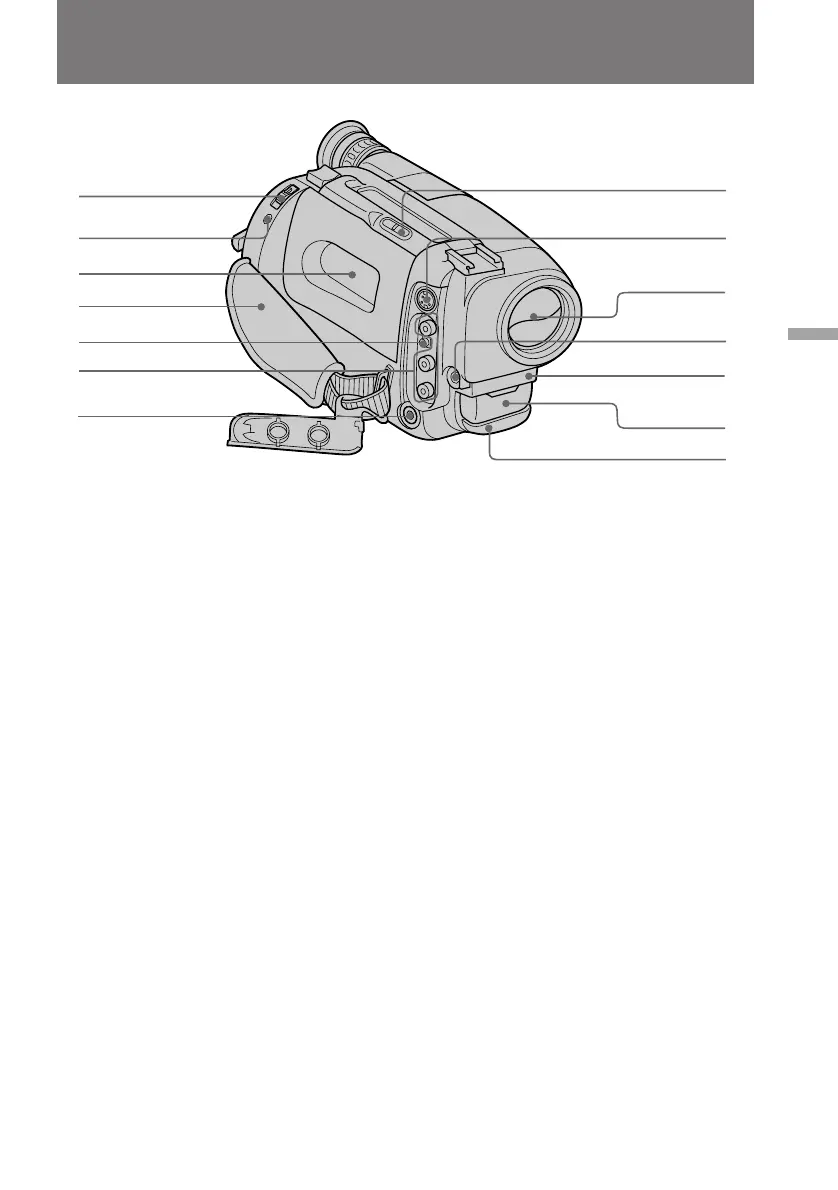

Identifying the parts
!•
@∞
@§
@•
@ª
#º
#¡
@¶
!ª
@º
@¡
@™
@£
@¢
!• EJECT switch (p. 9)
!ª LANC l control jack
l stands for Local Application Control
Bus System. The l control jack is used
for controlling the tape transport of
video equipment and peripherals
connected to it. This jack has the same
function as the jack indicated as
CONTROL L or REMOTE.
@ºCassette compartment (p. 9)
@¡ Grip strap (p. 17)
@™ RFU DC OUT (RFU adaptor DC output)
jack (p. 47)
@£ VIDEO/AUDIO jacks (p. 47)
@¢ 2 (headphones) jack (p. 21)
@∞ EDITSEARCH button (p. 19)
@§ S VIDEO jack (p. 47)
@¶ Lens cover
@• MIC jack (PLUG IN POWER)
Connect an external microphone (not
supplied). This jack also accepts a
“plug-in-power” microphone.
@ª Remote sensor (p. 75)
Aim the Remote Commander here for
remote control.
#º Microphone
#¡ Camera recording/battery lamp (p. 10)
