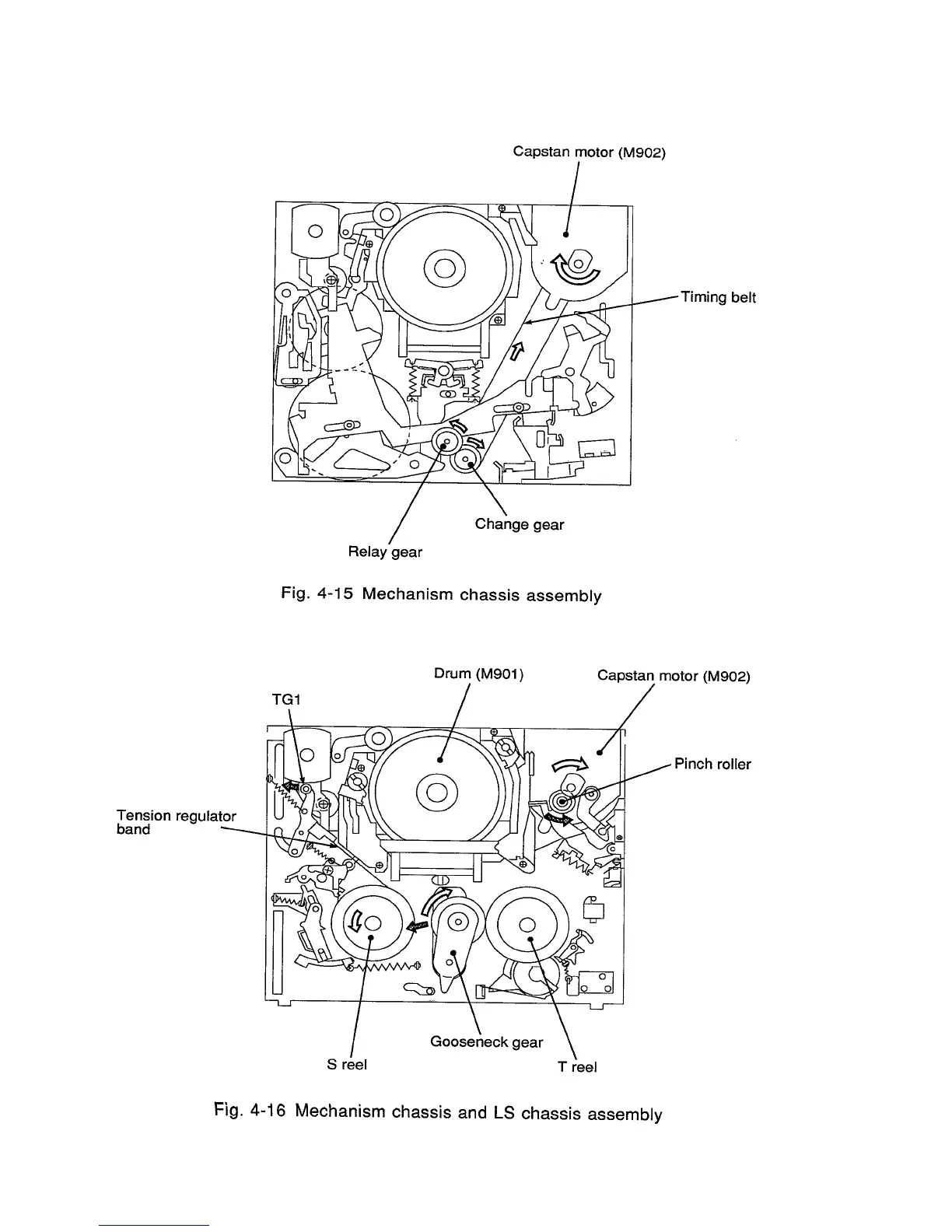

Capstan motor (M902)
belt
Relay gear
Change gear
Fig. 4-15 Mechanism chassis assembly
TG1
Tension regulator
band
I
i
S reel
Drum (M901)
./
Gooseneck gear
T reel
Capstan motor (M902)
/
Pinch roller
Fig. 4-16 Mechanism chassis and LS chassis assembly
