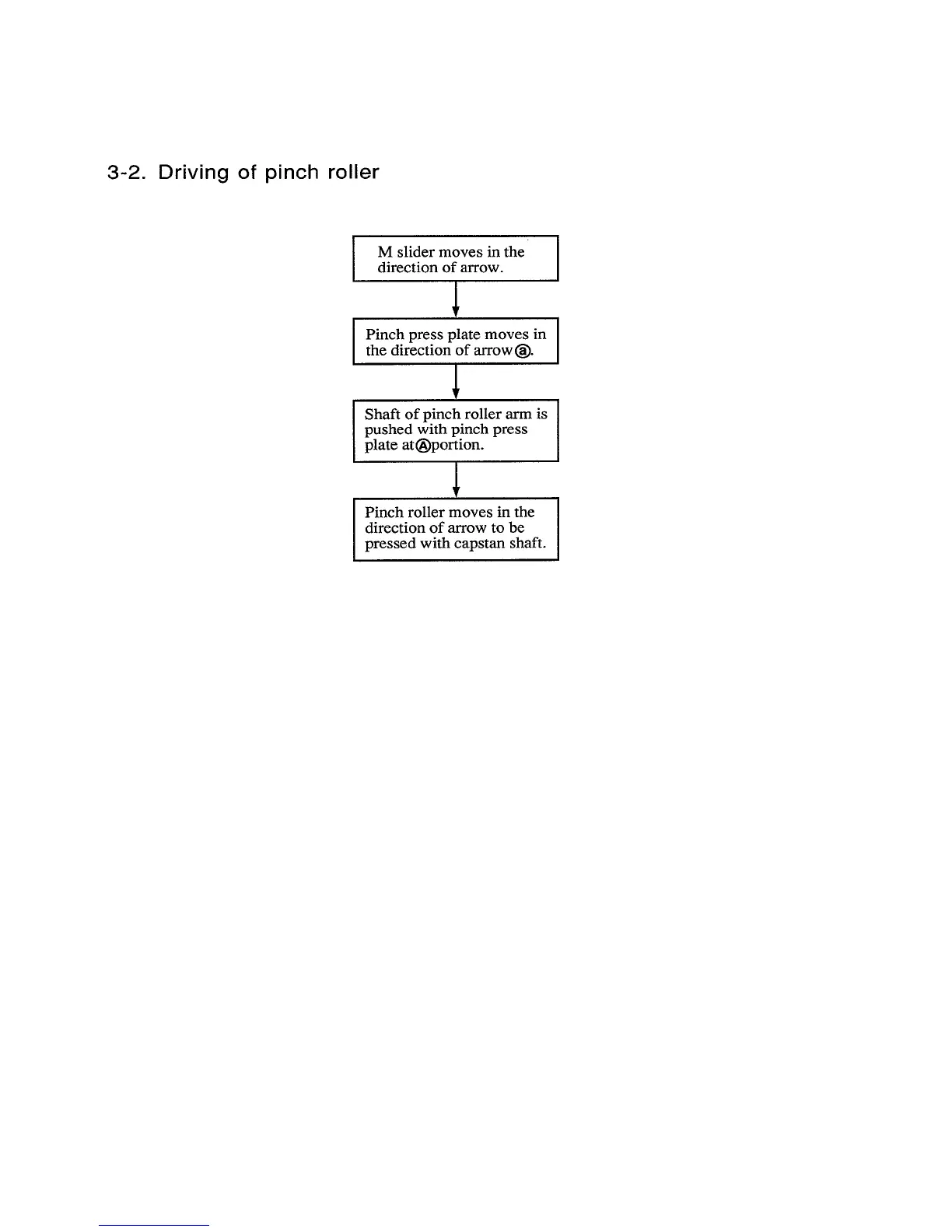

3-2. Driving of pinch roller
M slider moves in the
direction of arrow.
!
Pinch press plate moves in
the direction of arrow (_).
,!
Shaft of pinch roller arm is
pushed with pinch press
plate at!_)portion.
Pinch roller moves in the
direction of arrow to be
pressed with capstan shaft.
