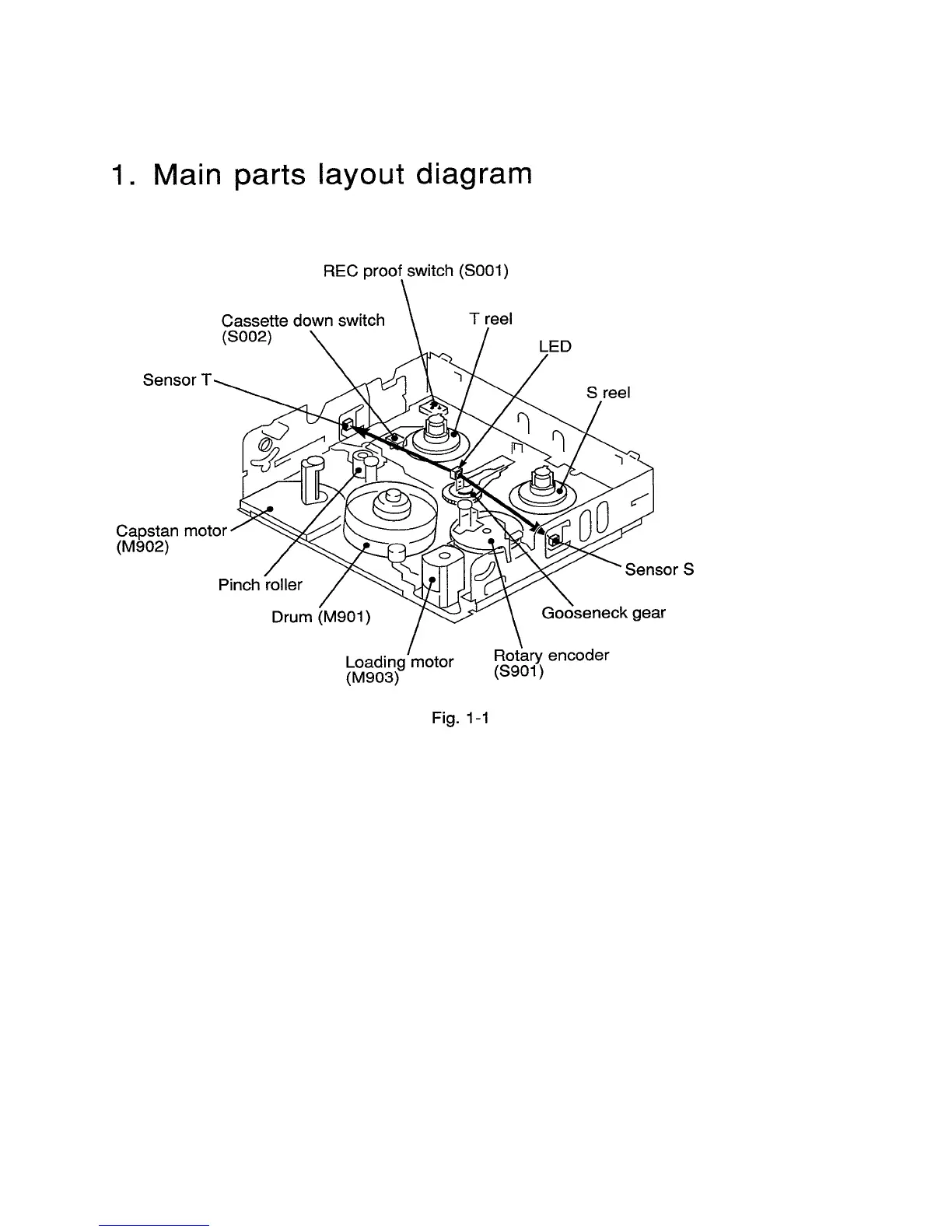

1. Main parts layout diagram
REC proof switch (S001)
Sensor
Cassette down switch
(S002)
T reel
LED
S reel
Capstan motor
(M902)
Pinch roller
Drum (M901)
Loading motor
(M903)
Sensor S
Gooseneck gear
Rotary encoder
(S901)
Fig. 1-1
