Sony CCD-TRV21E - Operation of Main Parts

2. Operation of main parts
Tension regulator plate 1
moves in the direction of
arrow.
Loading motor (M903) rotates. ]
[ Worm shaft and gear A rotates. [
[ Rotary encoder rotates. [
[ Cam gear rotates. [
M slider slides in the direction of [
arrow.
Pinch press plate moves in the ]
direction of arrow.
f
I L arm moves in the [
direction of arrow.
direction of arrow.
Worm
Loading motor
Gear
Rotary encoder
Tension regulator
plate 1
GL slider
Pinch press plate
GL arm
Cam gear
LS arm

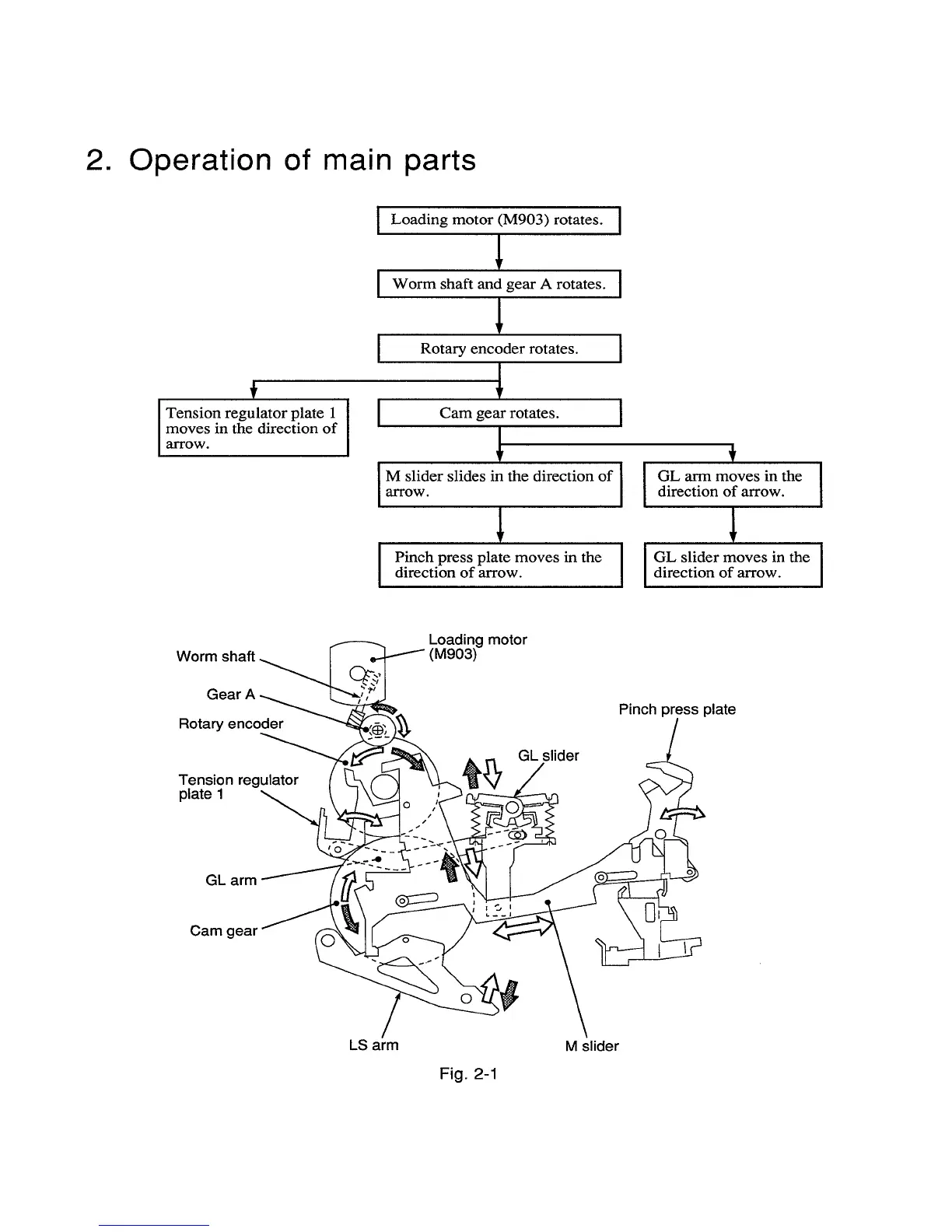

Fig. 2-1
M slider
