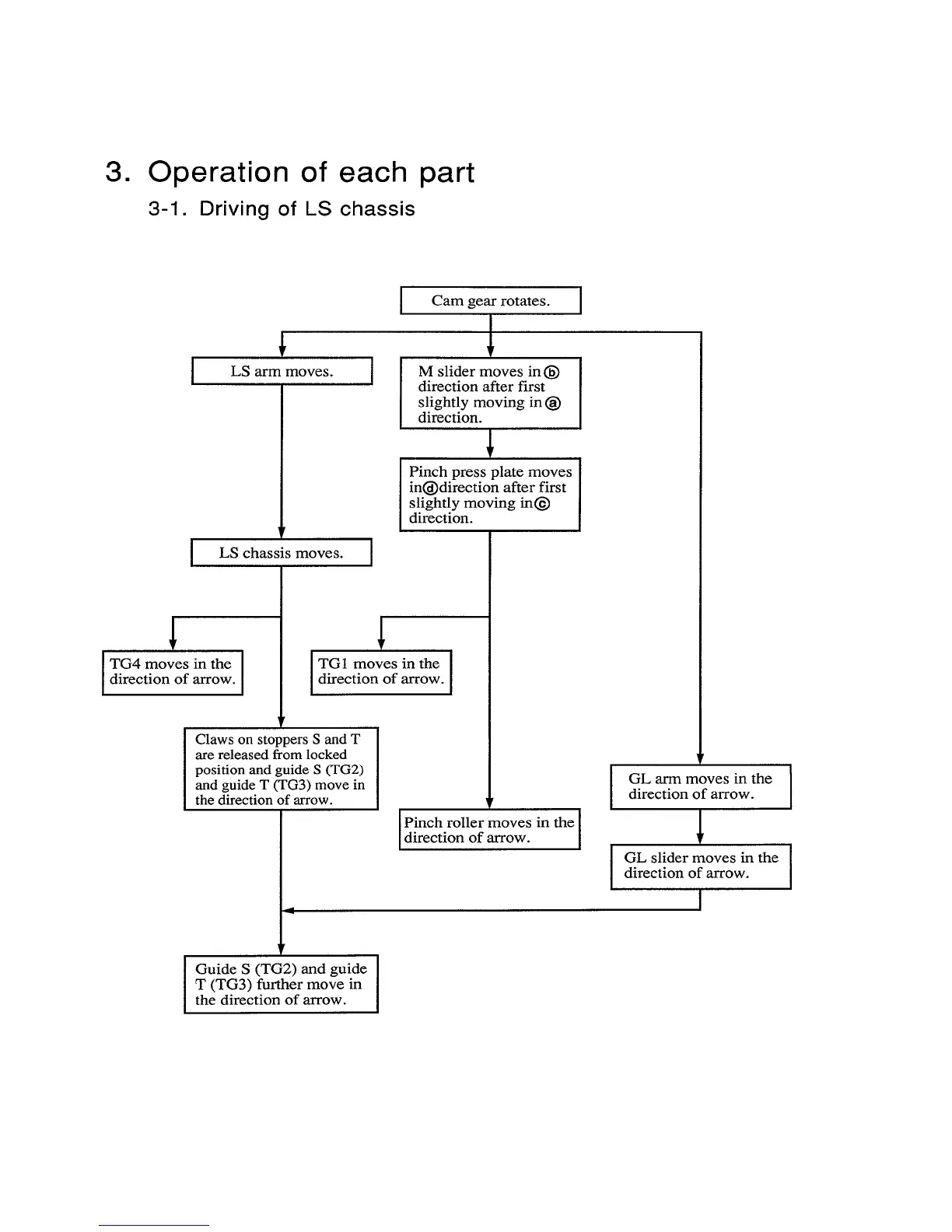

3. Operation of each part
3-1. Driving of LS chassis
1
I
i
TG4 moves in the |
direction of arrow.
J
LS arm moves.
r
LS chassis moves.
Cam gear rotates.
!
I M slider in
®moves
direction after first
slightly moving in O
direction.
Pinch press plate moves
inOdirection after first
slightly moving int_)
direction.
I
I
TG1 moves m the |
I
direction of arrow.
1
Claws on stoppers S and T
are released from locked
position and guide S (TG2)
and guide T (TG3) move in
the direction of arrow.
Pinch roller moves in theJ
direction of arrow.
GL arm moves in the
direction of arrow.
!
GL slider moves in the
direction of arrow.
I
I
Guide S (TG2) and guide
T (TG3) further move in
the direction of arrow.
