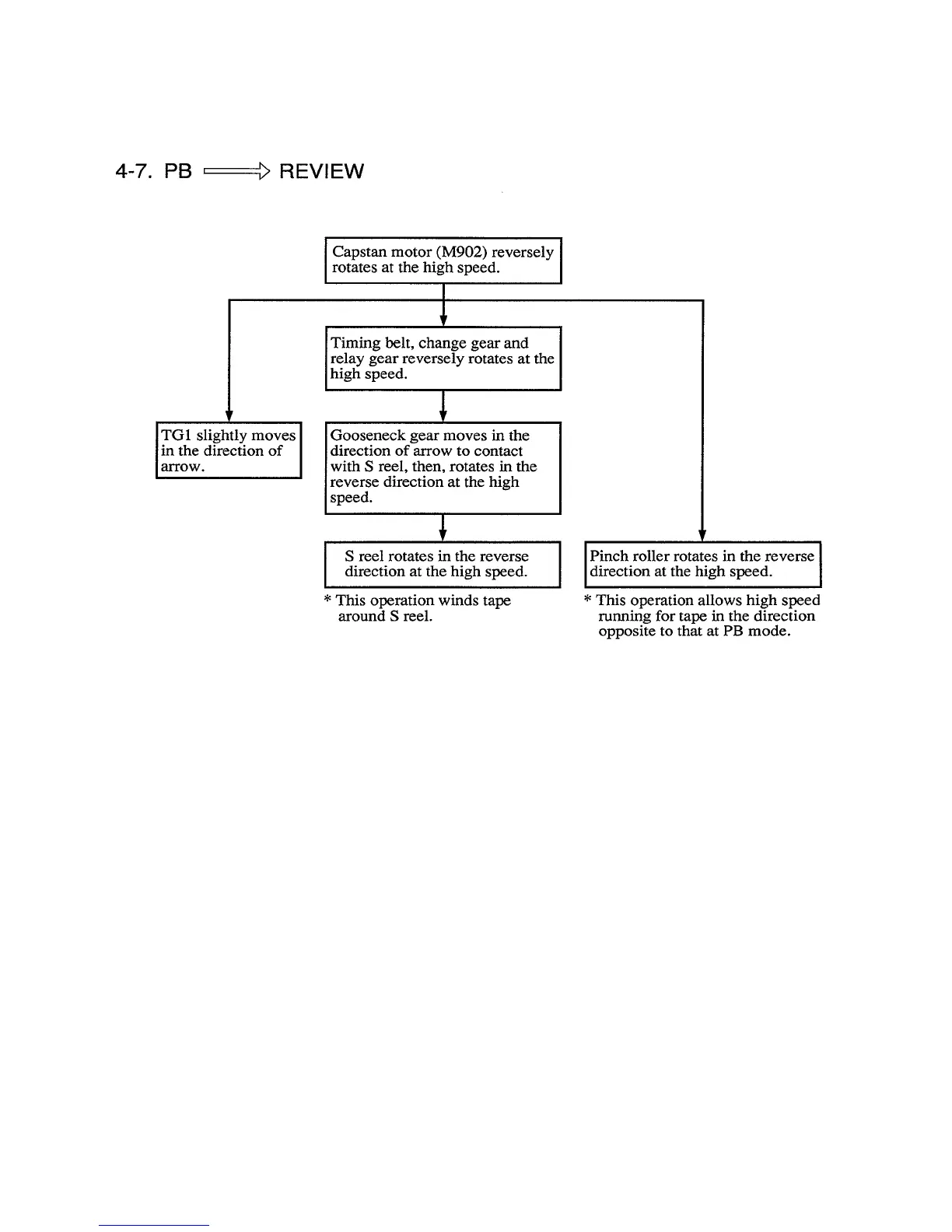

4-7. PB REVIEW
[TG1 slightly moves [
[in the direction of
I
arrow.
Capstan motor (M902) reversely [
rotates at the high speed.
ITiming belt, change gear and I
relay gear reversely rotates at the
high speed.
IGooseneck gear moves in the
direction of arrow to contact
with S reel, then, rotates in the
reverse direction at the high
speed.
I S reel rotates in the reversedirection at the high speed.
* This operation winds tape
around S reel.
Pinch roller rotates in the reverse
I
direction at the high speed. 1
* This operation allows high speed
running for tape in the direction
opposite to that at PB mode.
To Next Page
