Cassette compartment
i * EJ arm moves in the direction of
arrow(_)to push claw on(_)portion
in cassette compartment by EJ
arm at@portion so that the claw
is releases. When released the
i lock, the whole cassette
compartment is lifted up in the
, direction of arrow(_).
* When EJ arm moves in the direction of
arrow@, cassette down switch is brought
into action to stop drum (M901). capstan
motor (M902) and loading motor (M903).

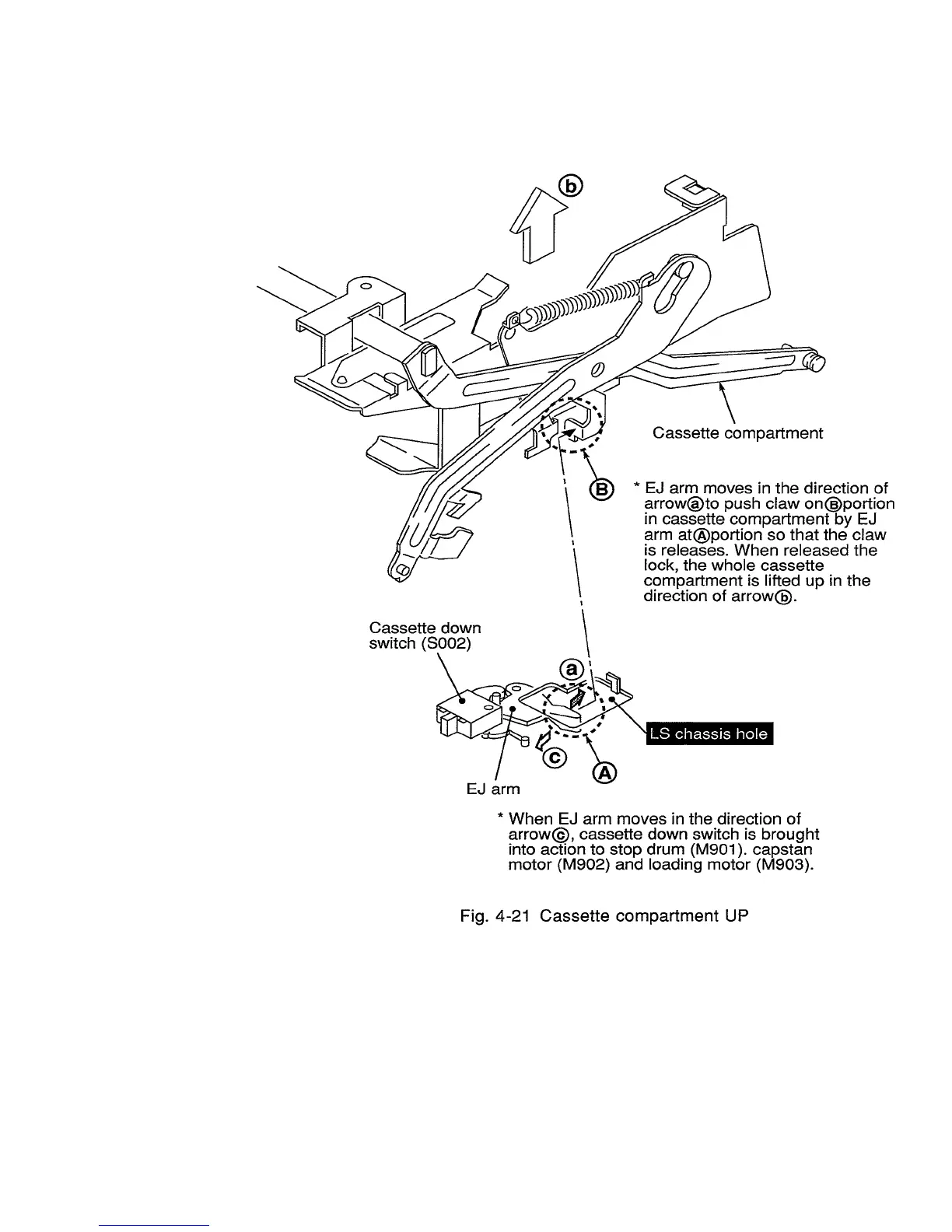

Fig. 4-21 Cassette compartment UP
