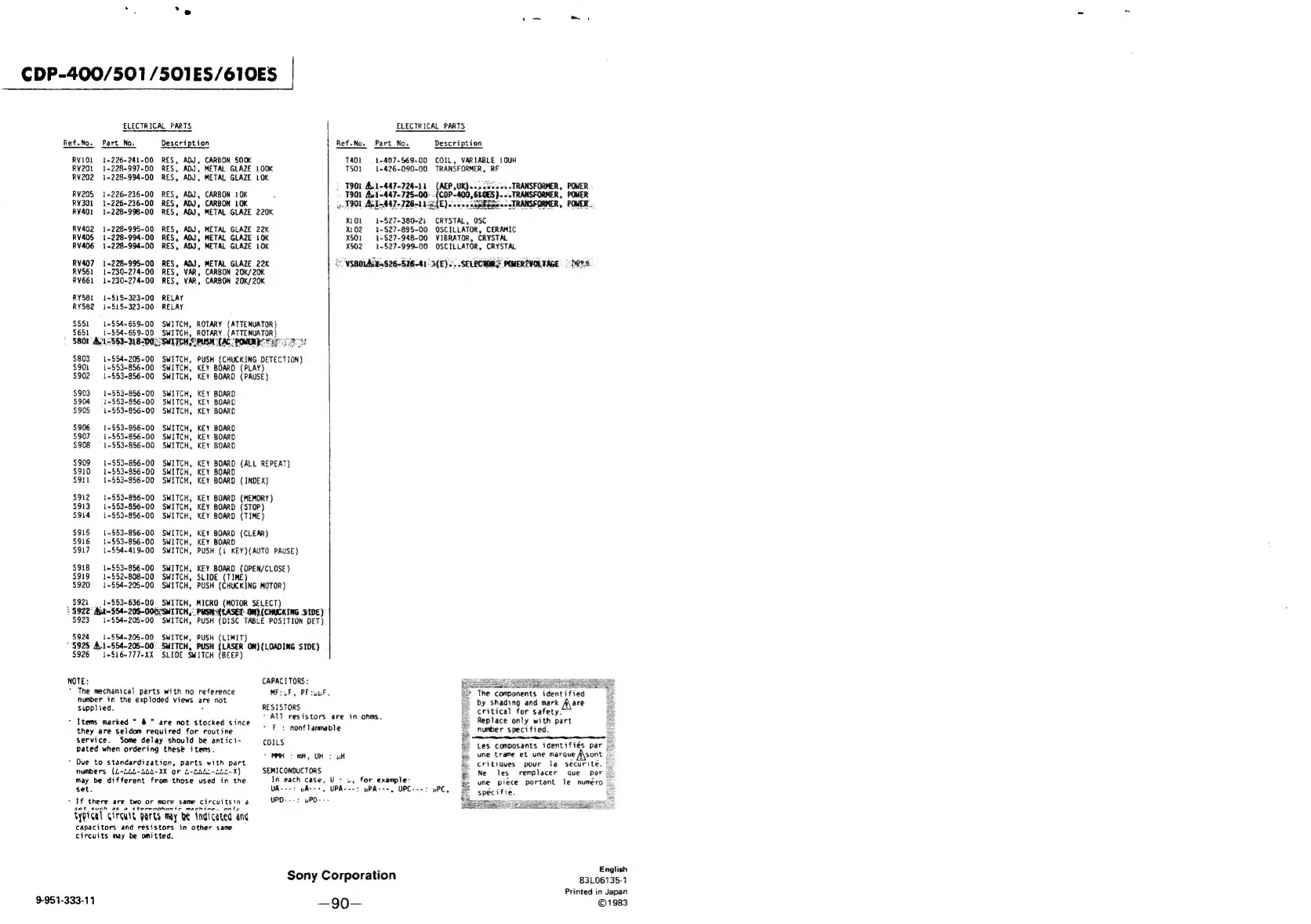

Sony CDP-400 - Page 48

CDP-400/501/S501ES/610ES
ELECTRICAL PARTS ELECTRICAL PARTS
Ref.No. Part No. Description Ref.No. Part No. Description
RVIO1 1-226-241-00 RES, ADJ, CARBON SOOK T401 = 1-407-569-00 COIL, VARIABLE 10UH
RV201 1+228-997-00 RES, ADJ, METAL GLAZE 100k T501 1+426-090-00 TRANSFORMER, RF
RV202 1-228-994-00 RES, ADJ, METAL GLAZE 10K
2 T901 A.1-447-726-11- (AEP, UK). ws eTRANSFORMER, POWER
RV205 1-226-236-00 RES, ADJ, CARBON 10K : 1901 Avi-447-725-00- -{CDP-400, BL0ES }. «. TRANSFORMER, POWER
RY301 1+226-236-00 RES, ADJ, CARBON 10K 3901 AsI=447-726-1U5{E). rz
RV401 1-228-998-00 RES, ADJ, METAL GLAZE 220K "
X101 1+527-380-21 CRYSTAL, OSC
RV402 1-228-995-00 RES, ADJ, METAL GLAZE 22K X102 1-527-895-00 OSCILLATOR, CERAMIC
RV405 -1-228-994-00 RES, ADJ, METAL GLAZE 10K X501 1-527-948-00 VIBRATOR, CRYSTAL
RV406 1-228-994-00 RES, ADJ, METAL GLAZE 10k 502 1-527-999-00 OSCILLATOR, CRYSTAL
RV407 1-228-995-00 RES, ADJ, METAL GLAZE 22K iy VS8OL$=526~-526-413(E). SELECTDAY POMEREROLTAGE Ons:
RV561 1-230-274-00 RES, VAR, CARBON 20K/20K
RV661 1-230-274-00 RES, VAR, CARBON 20K/20K
RY581 1~515-323-00 RELAY
RY582 1~515-323-00 RELAY
$551 1-554-659-00 SWITCH, ROTARY (ATTENUATOR)
$651 1-554-659-00 SWITCH, ROTARY (ATTENUATOR)
S801’ AC1-553-31 8-005 SWITCH PUSH "AC POMER Fi:
S803 1-554-205-00 SWITCH, PUSH (CHUCKING DETECTION)
$901 1-553-856-00 SWITCH, KEY BOARD (PLAY)
$902 1-553-856-00 SWITCH, KEY BOARD (PAUSE)
$903 1-553-856-00 SWITCH, KEY BOARD
$904 =: 1-553-856-00 SWITCH, KEY BOARC
$905 1+553-856-00 SWITCH, KEY BOARD
$906 1-553~856-00 SWITCH, KEY BOARD
$907 1-553-856-00 SWITCH, KEY BOARD
$908 = 1-553-856-00 SWITCH, KEY BOARD
$909 1-553-856-00 SWITCH, KEY BOARD (ALL REPEAT)
$910 1+553-856-00 SWITCH, KEY BOARD
S911 1-553-856-00 SWITCH, KEY BOARD (INDEX)
S912 1=553-856-00 SWITCH, KEY BOARD (MEMORY)
S913 1-553-856-00 SWITCH, KEY BOARD (STOP)
S914 1-553-856-00 SWITCH, KEY BOARD (TIME)
$915 1-553-856-00 SWITCH, KEY BOARD (CLEAR)
S916 1+553-856-00 SWITCH, KEY BOARD
$917 1-$54-419-00 SWITCH, PUSH (1 KEY){AUTO PAUSE)
S918 1-553-856-00 SWITCH, KEY BOARD (OPEN/CLOSE)
S919 1-552-808-00 SWITCH, SLIDE (TIME)
$920 1-554-205-00 SWITCH, PUSH (CHUCKING MOTOR)
_ 5921 1-553-636-00 SWITCH, MICRO (MOTOR SELECT)
+ $922 Aa-554-205-O087SWITCH, | PUSHEELASET: ON} (CHUCKING SIDE)
$923 1-554-205-00 SWITCH, PUSH (DISC TABLE POSITION DET)
S924 1-554-205-00 SWITCH, PUSH (LIMIT)
“$928 A.1-554-205-00° SWITCH, PUSH (LASER ON)(LOADING SIDE}
$926 = 1-516-777-XX SLIDE SWITCH (BEEP)
NOTE: CAPACITORS:
> The mechanical parts with no reference MF:UF, PFsuuF.
number in the exploded views are not by shading and mark A\are
supplied.
‘
ae
etioe
ssrklateHatok
critical
for
paras
: resis re in ohms.
* Items marked " @ " are not stocked since 2 5 oie arma] Replace only wi th part
they are seldom required for routine EnOnny seme bre number specified.
service. Some delay should be antici- COILS A a
i
i
Les
composants
identifies
par
pated when ordering these items. - MH: mH, UN: ul une trame et une marque A\sont
* Due to standardization, parts with part critiques pour la securit
numbers (L-SLL-604-XX or £-8041-255-X) SEMICONDUCTORS Ne les remplacer que par
may be different from those used in the
set.
- If there are two or more same circuitsin a
set such as a stereophonic machine. only
typical circuit parts may be indicated and
capacitors and resistors in other same
circuits may be omitted.
9-951-333-11
In each case, U: y, for example:
UA+ ++: yArse, UPA---: pPA-++, UPC---: UPC,
UPD---: yPD---
une piece portant le numéro
specifie.
2 English
Sony Corporation 83L06135-1
Printed in Japan
—90—-
©1983
