Sony CDP-EX770 - Page 102

– 21 –

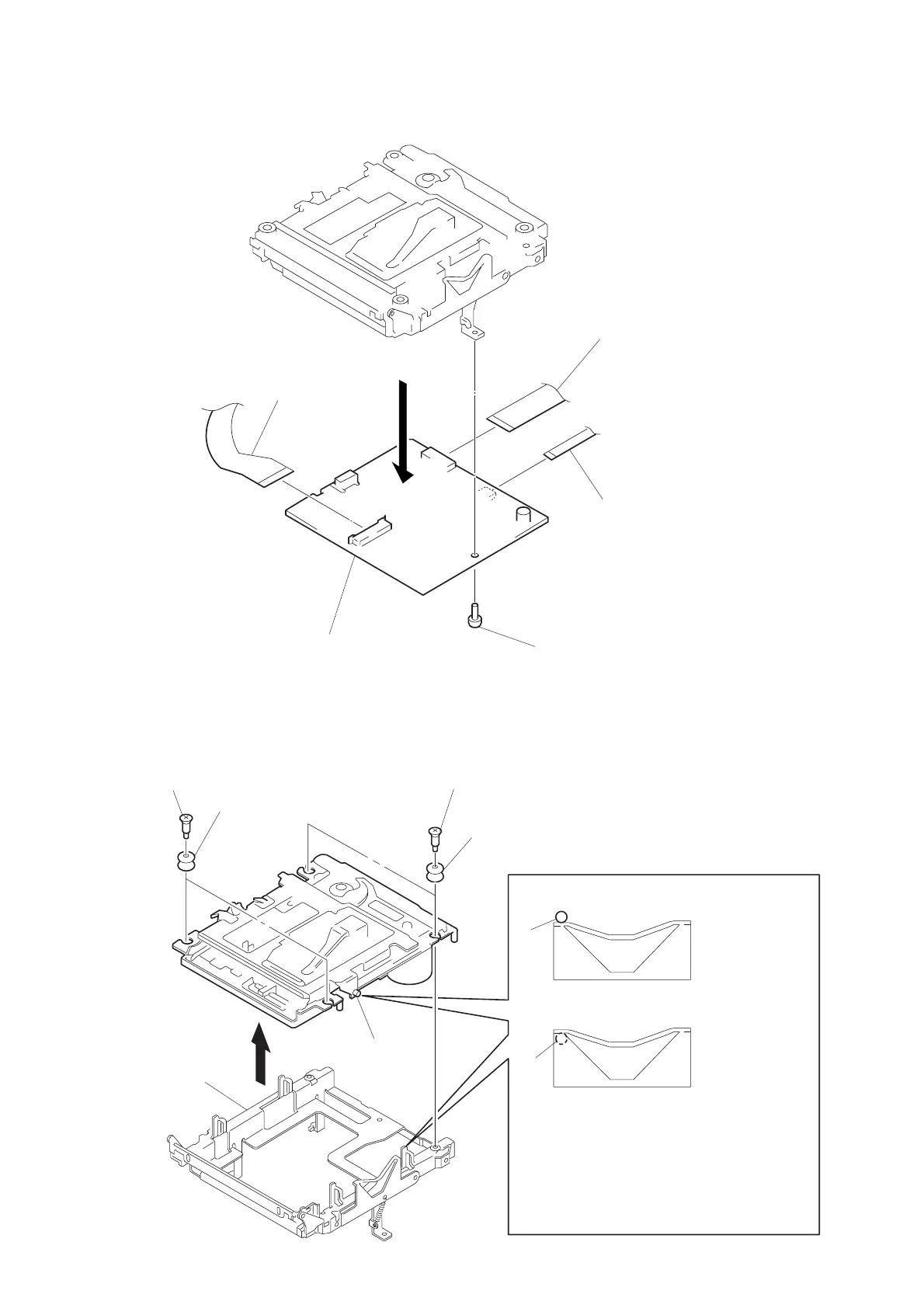

SUB CHASSIS
1 two step screws
2 two insulators
1 two step screws
2 two insulators
part
A
NG
OK
Take care so that the part
A
may be right position when installing.
part A
BD BOARD
3 sub chassis
part A
1 flexible board
(over write head)
3 screws (BVTT2 × 4)
5 BD board
4 OP relay
flexible board
(CN101)
2 flat cable (15 core)
(CN106)
