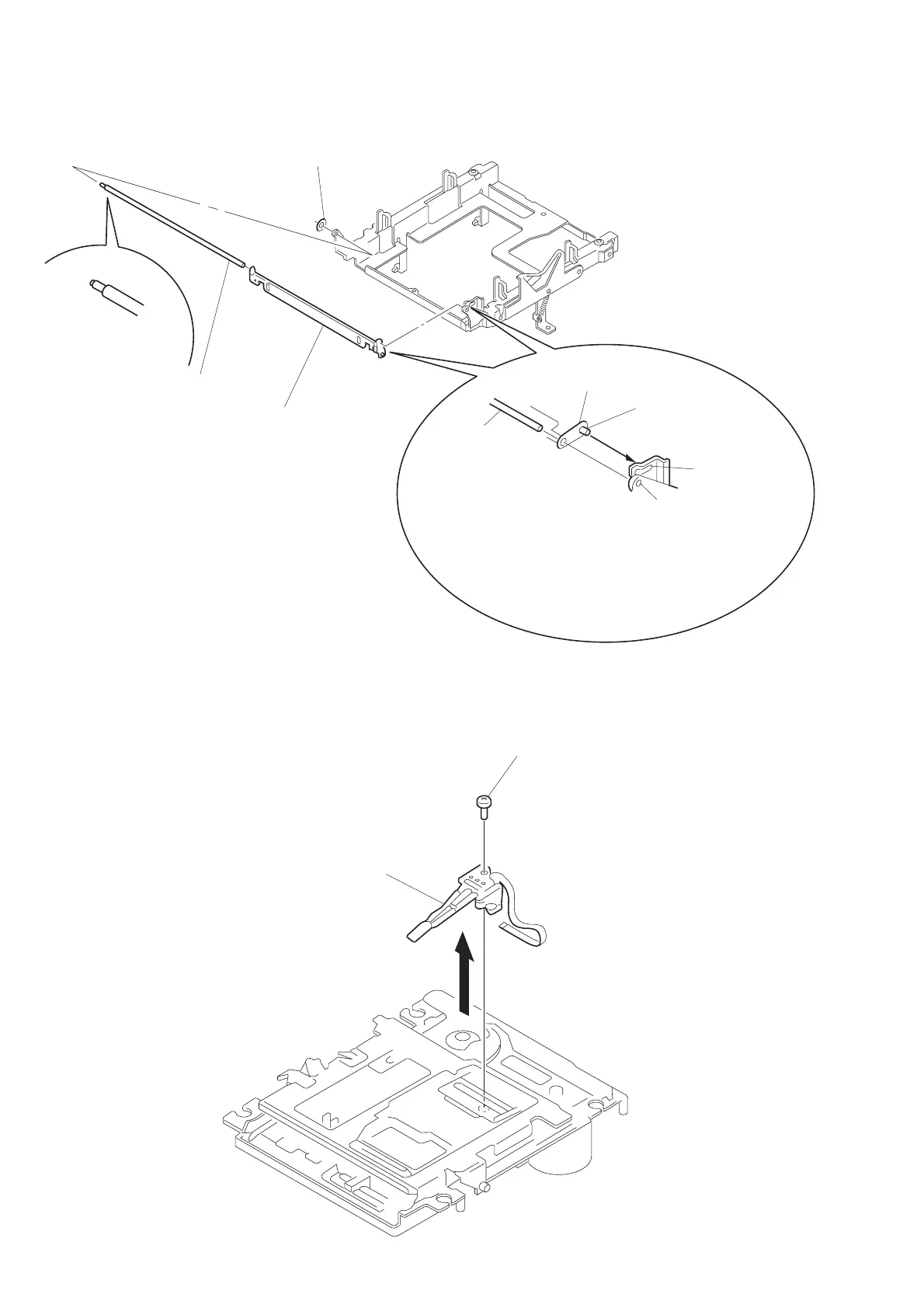

OVER WRITE HEAD
2 over write head
1 screw (P1.7 × 6)
SHUTTER ASS’Y
1 stopper washer
2 shaft (shutter) A
3 shutter ass’y
shutter ass’y
shaft (shutter) B
hole B
hole A
When installing, install the shaft (shutter) A
into the hole as show in the figune before
installing the shaft (shutter) B into the hole B.
shaft (shutter) A
