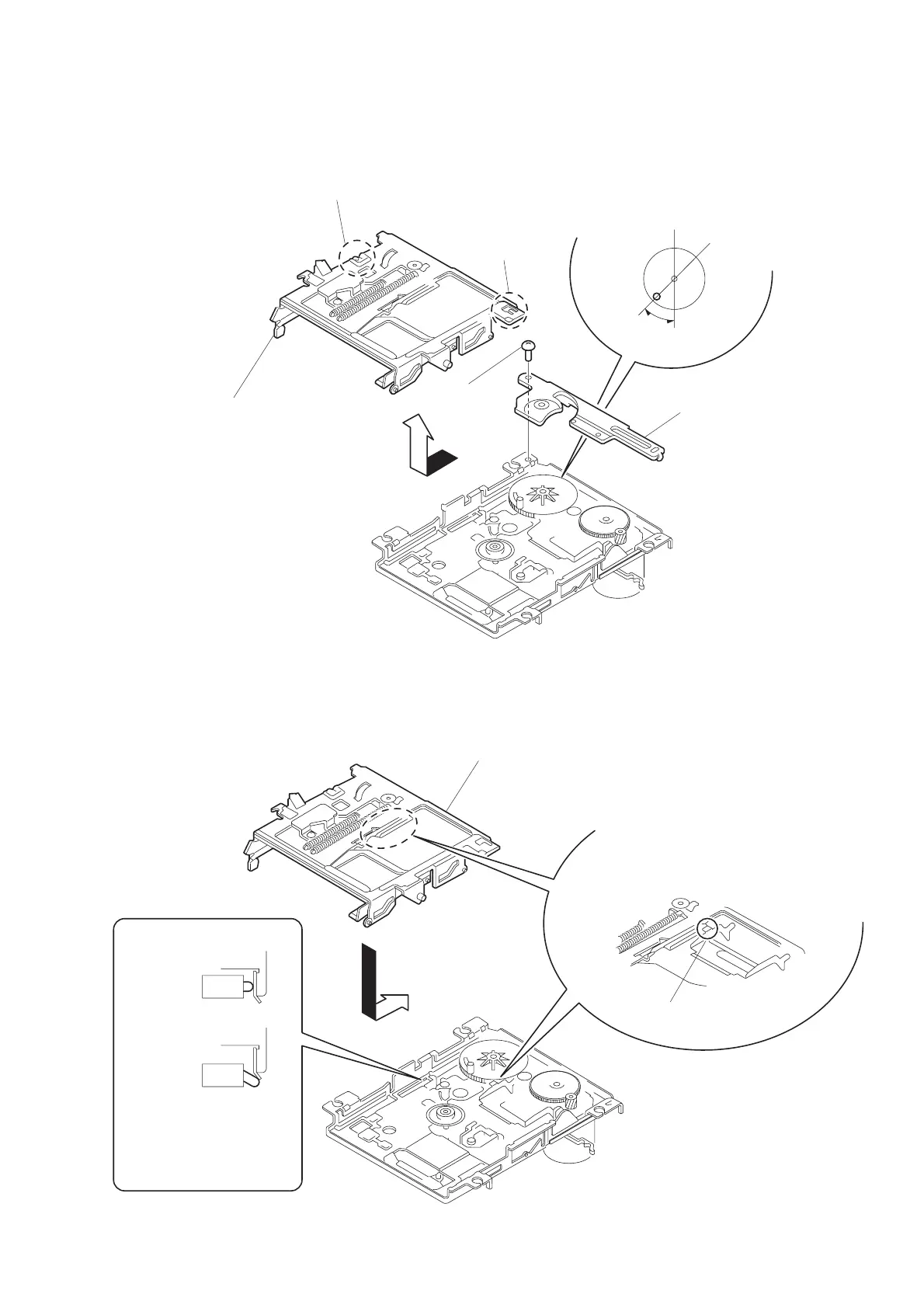

NOTE FOR INSTALLATION
• SLIDER COMPLETE ASS’Y
Install the part A of lever (head up)
to pass over the slider complete ass’y.
part A
OK
NG
Take care not to damage
the detective switch.
slider ass’y
SLIDER COMPLETE ASS’Y
claw
claw
45°
3 Set the shaft of gear (LB) to be at the
position in the figure.
2 retainer (gear)
4 Remove the slider complete ass’y
in the direction of arrow with putting
out of two claws.
1 special screw
(M1.7
× 1.4)
