– 11 –

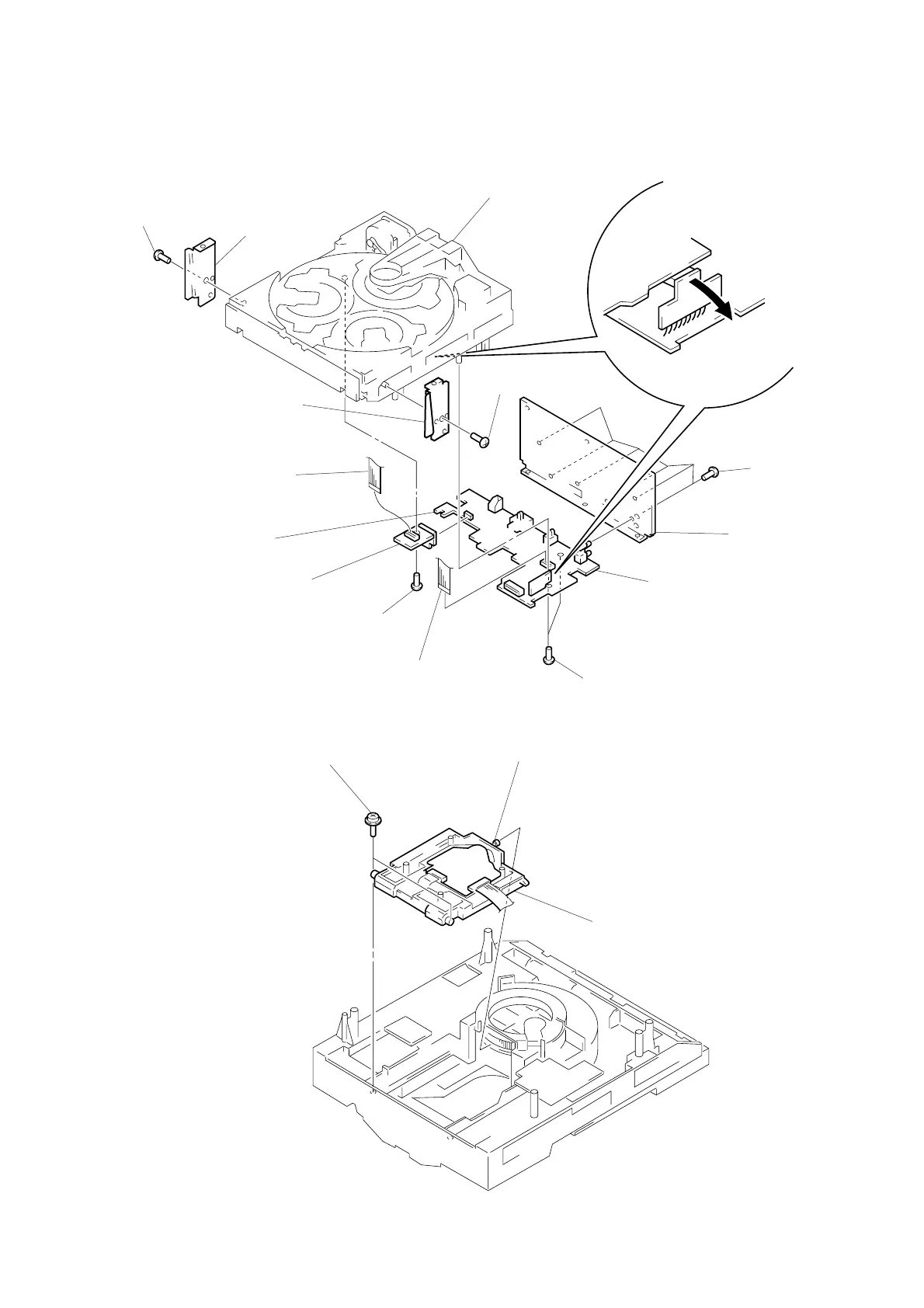

MAIN BOARD, CD MECHANISM DECK
2 boss
1 two yoke brackets
3 base unit
1 Six screws
(BV3 ×10)
2 back panel
3 connector
(CN303)
5 two screws
(BV3 × 8)
6 main board
4 connector
(CN304)
7 flat wire (19 CORE)
(CN302)
8 screws
(BV3 × 8)
9 relay
board
0 flat wire (8 core)
(CN702)
!¡ screw
(BV3 × 10)
!£ CD mechanism deck
!™ bracket (L)
!™ bracket (R)
!¡ screw
(BV3 × 10)
BASE UNIT
