– 12 –

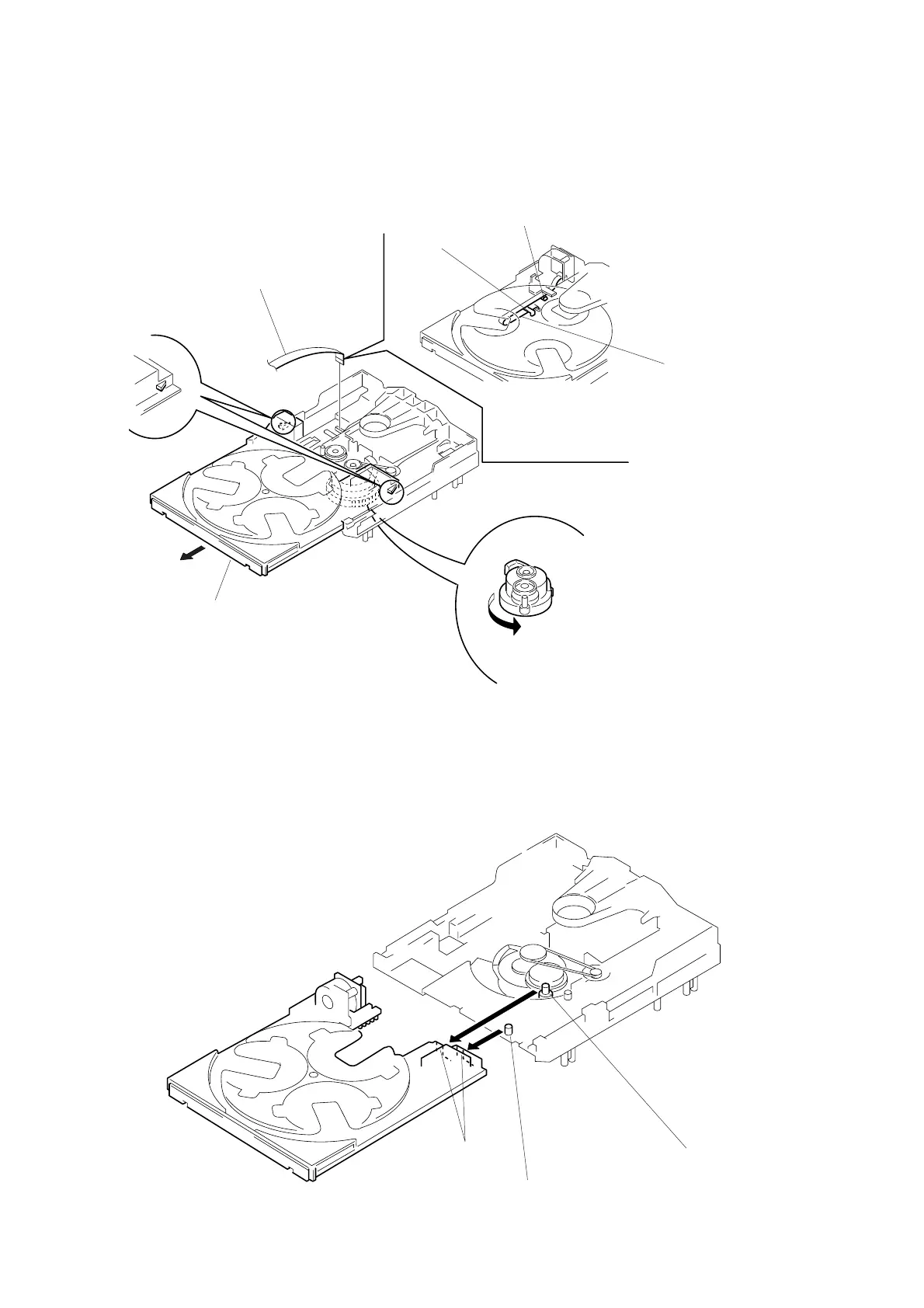

TRAY SECTION
Note: When installing the tray, take care so that the collars A and
B are properly inserted into the slots.
collar A
collar B
slots
1 Turn the cam to direction
of the arrow.
Note: When installing the tray, pull around the flat
wire to pass through the claw A and claw B,
as shown in the figure.
flat wire
3 flat wire
(CN705)
claw B
claw A
2 Pull the tray.
5 Removal the tray.
4 two claws
To Next Page
