SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.
CONNECTOR BOARD
(Page 7)
BACK PANEL
(Page 7)
MAIN BOARD
(Page 8)
CASE, FRONT PANEL ASS’Y
(Page 6)

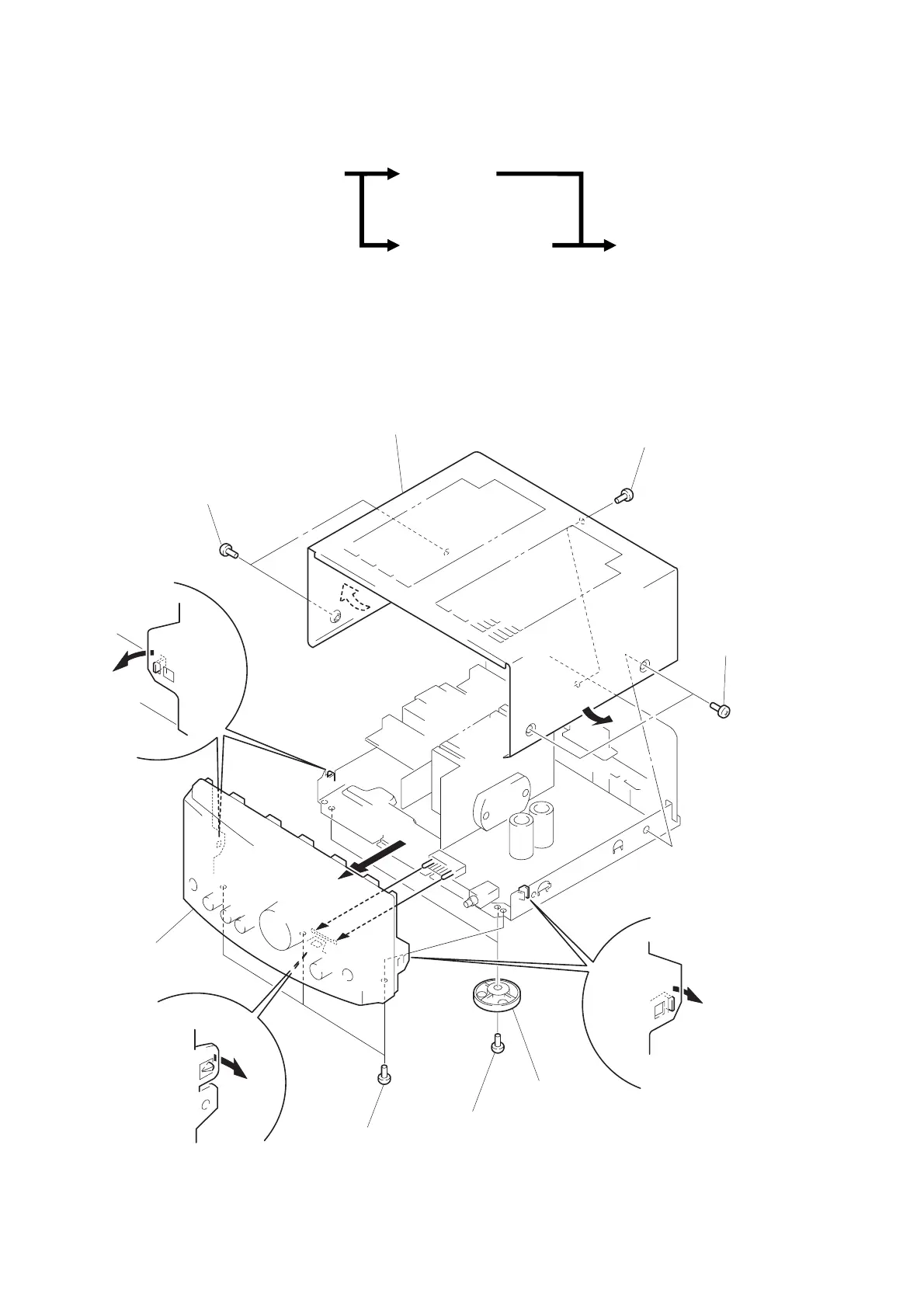

1 screw (BVTT3 × 8)
2 two screws
(case 3 TP2)
2 two screws
(case 3 TP2)
3 case
4 two screws
(BVTP3
× 10)
5 two legs (F)
6 three screws
(BVTP3
× 10)
7 claw
7 two claws
7 two claws
8 front panel ass’y
CASE, FRONT PANEL ASS’Y
Note: Follow the disassembly procedure in the numerical order given.
