– 7 –

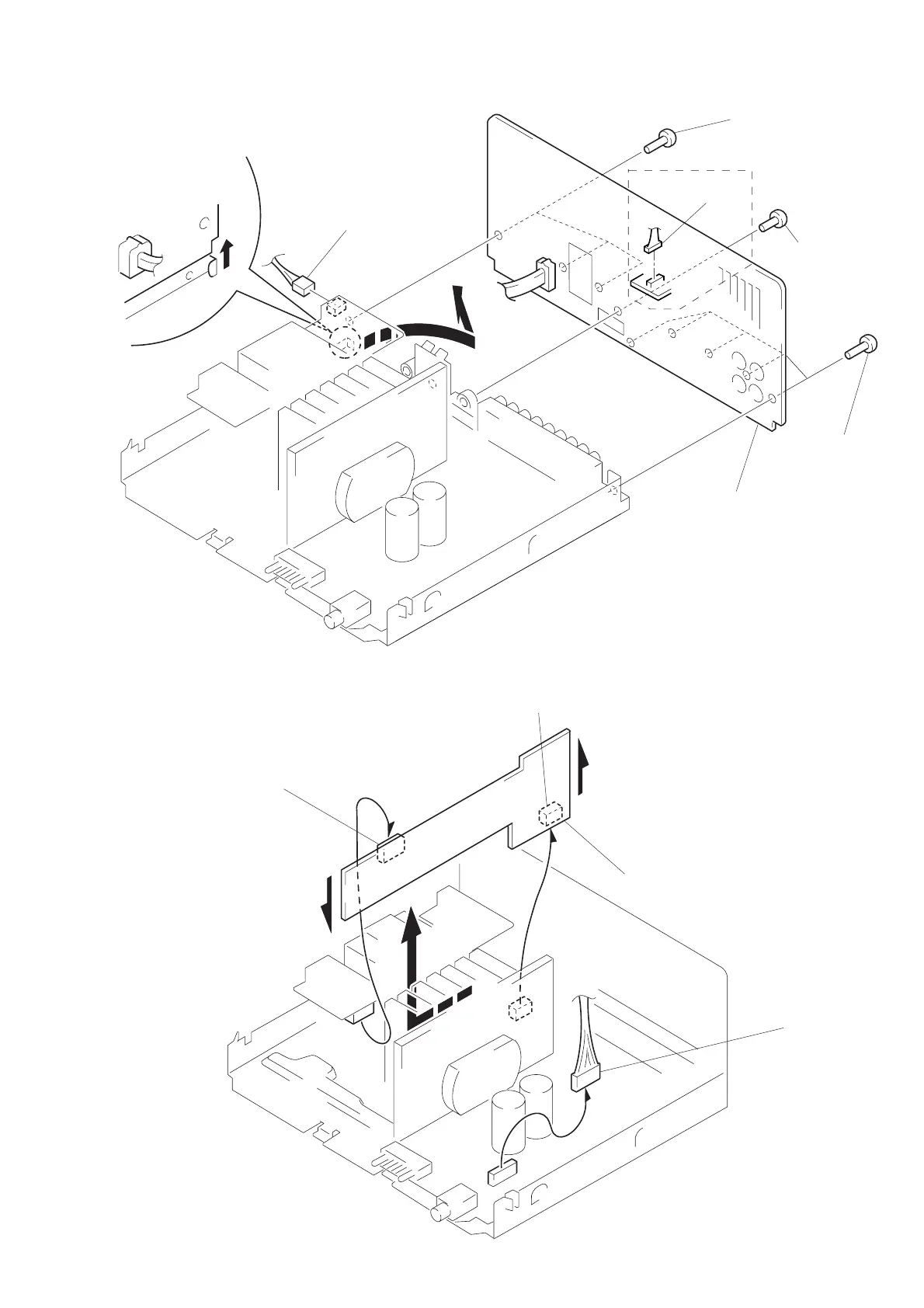

BACK PANEL
CONNECTOR BOARD
1 connector
(CN911)
2 connector
(CN504)
3 screw
(BVTP3
× 8)
3 three screws
(BVTP3
× 10)
3 five screws
(BVTP3
× 10)
4 claw
5 Remove the back panel to
direction of the arrow
A .
A
EX77
1
connector
(CN501)
2 Remove the connector (CN553) to
direction of the arrow
A .
3 Remove the connector (CN554) to
direction of the arrow
B .
4 Remove the connector board to
direction of the arrow
C .
A
B
C
