Sony CDP-XE510 - Exploded Views of Components; Main Section Exploded View

— 33 —
SECTION 7
EXPLODED VIEWS
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (RED)
µ
Cabinets color
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Abbreviation
EE : East European model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-986-500-01 KNOB (AMS)(BLACK)
1 4-986-500-11 KNOB (AMS)(SILVER)
2 4-977-588-71 PANEL, LOADING (SILVER)
2 4-989-252-01 PANEL, LOADING (BLACK)
3 X-4947-868-2 PANEL ASSY, FRONT (BLACK)
3 X-4947-901-2 PANEL ASSY, FRONT (SILVER)
4 4-963-404-21 EMBLEM (5-A), SONY
5 4-977-593-01 RING (DIA. 50), ORNAMENTAL
8 4-977-589-01 BUTTON (POWER)(BLACK)
8 4-977-589-51 BUTTON (POWER)(SILVER)
* 9 1-664-311-11 POWER SW BOARD
10 4-951-620-01 SCREW (2.6X8), +BVTP
* 11 A-4699-484-A PANEL BOARD, COMPLETE
* 12 4-987-972-01 GUIDE (FL)
13 1-769-971-11 WIRE (FLAT TYPE)(13 CORE)
14 3-363-099-01 SCREW (CASE 3 TP2)(BLACK)
14 3-363-099-11 SCREW (CASE 3 TP2)(SILVER)
* 15 4-978-901-21 CASE (408226)(BLACK)
* 15 4-978-901-91 CASE (408226)(SILVER)
16 4-966-267-12 BUSHING (FBS001), CORD
* 17 4-987-946-01 PANEL, BACK (AEP,EE,CIS)
* 17 4-987-946-11 PANEL, BACK (UK)
* 18 A-4699-485-A MAIN BOARD, COMPLETE (AEP,EE,CIS)
* 18 A-4699-599-A MAIN BOARD, COMPLETE (UK)
* 19 3-349-025-41 HOLDER, PC BOARD
* 20 4-954-051-51 HOLDER, PC BOARD
21 X-3371-436-1 FOOT ASSY (F50150S)(SILVER)
21 X-4947-207-1 FOOT ASSY (F50150S)(BLACK)
22 1-776-100-11 WIRE (FLAT TYPE)(23 CORE)
* 23 1-664-312-11 HP BOARD
! 24 1-575-651-21 CORD, POWER (AEP,EE,CIS)
! 24 1-696-907-11 CORD, POWER (UK)
FL501 1-517-632-11 INDICATOR TUBE, FLUORESCENT
! T901 1-431-101-11 TRANSFORMER, POWER
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number
specified.

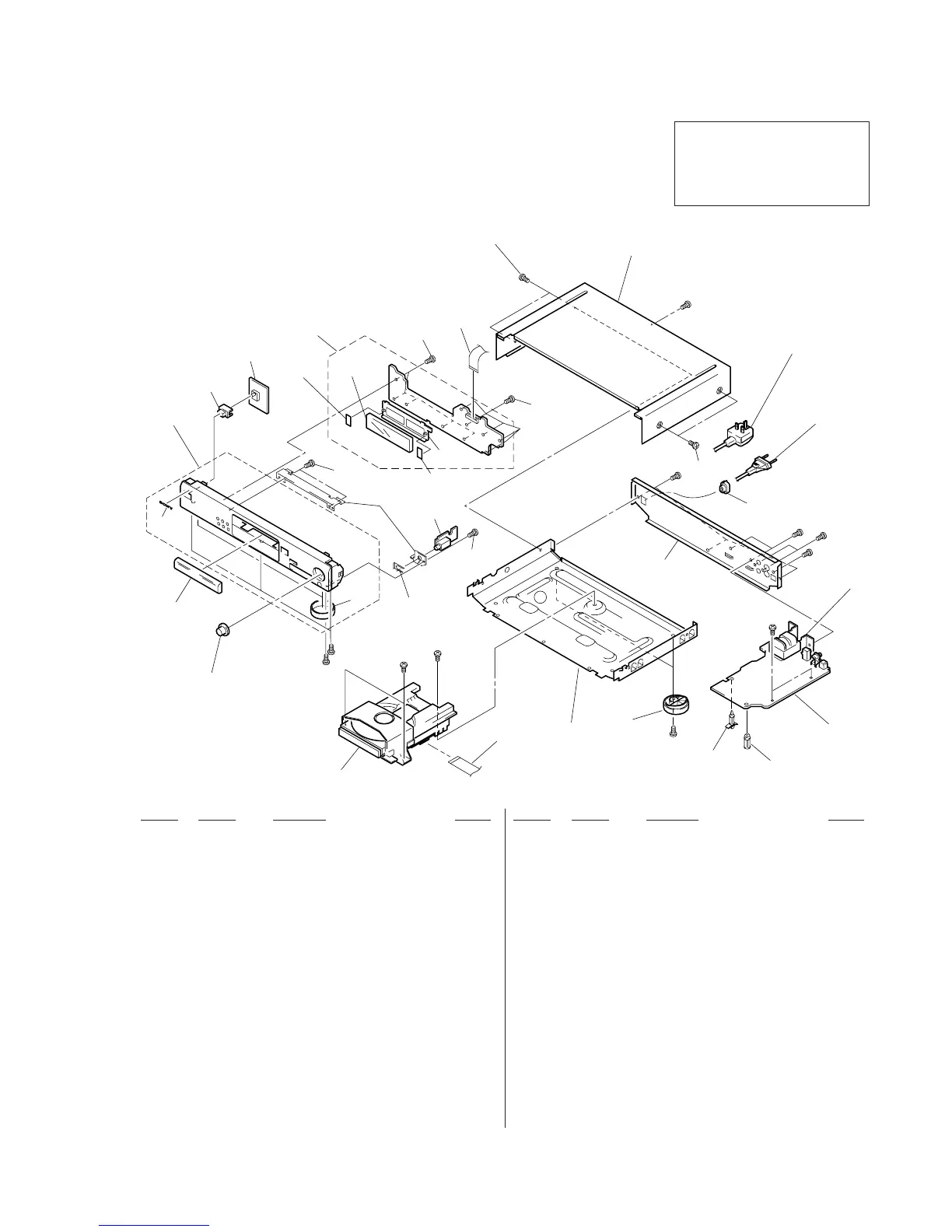

7-1. MAIN SECTION
14
15
8
3
9
11
12
10
13
#1
14
4
24
(UK)
24
16
(AEP, EE, CIS)
#1
#1
#1
#1
10
10
FL501
10
18
19
20
#1
21
not supplied
22
CDM14-5BD22
1
2
17
#1
T901
#1
#1
#1 #1
Supplied with
J401
5
not
supplied
23
not supplied
not
supplied
