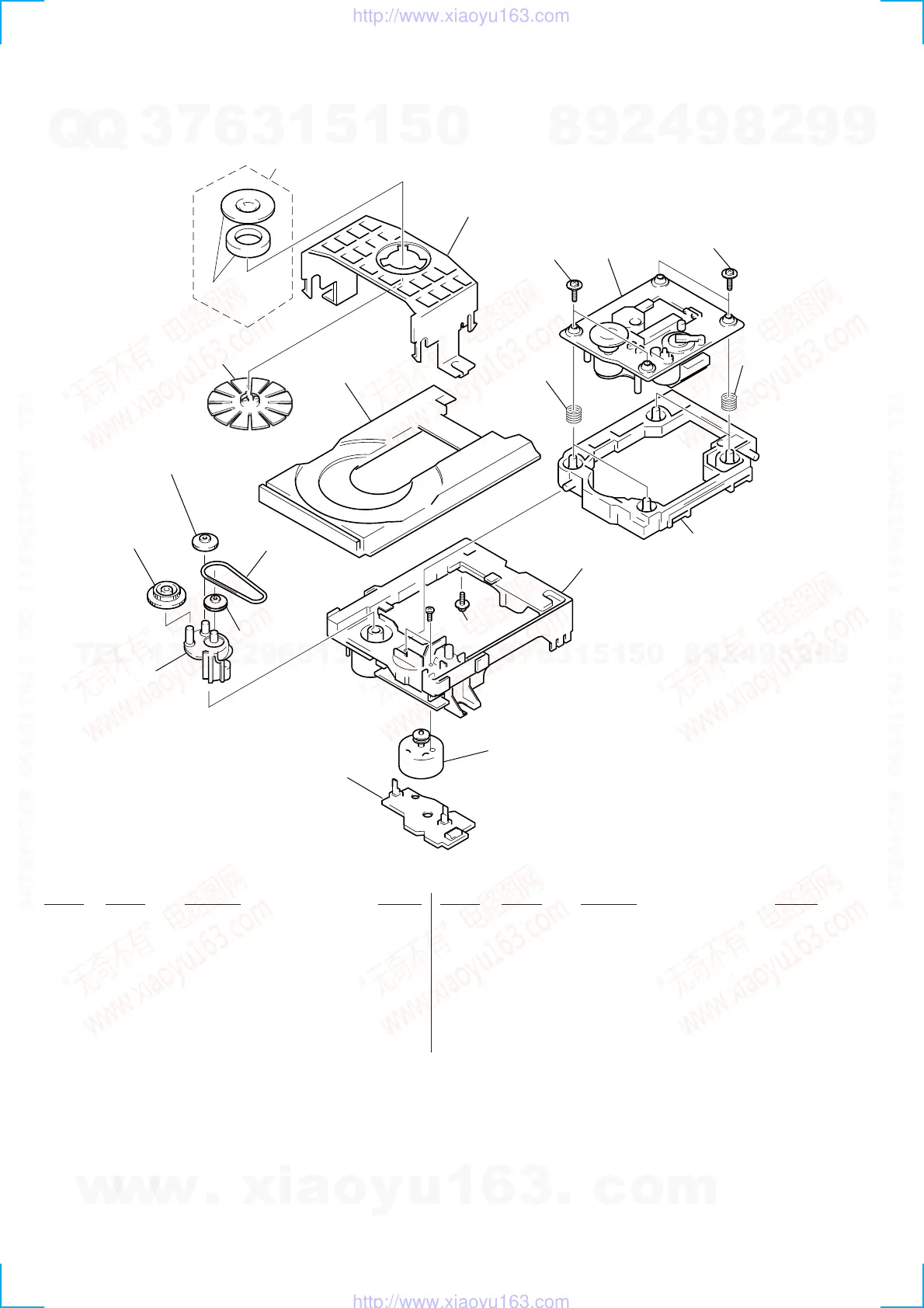

7-2. CD MECHANISM SECTION (CDM14FL-5BD25)
101
102
110
110
111
112
113
114
M151
#2
111
103
115
104
105
106
107
108
109
BU-5BD25
not supplied
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 1-452-925-21 MAGNET ASSY
102 4-933-110-41 HOLDER (MG)
103 4-995-814-21 TABLE (FL), DISC
104 4-967-268-01 GEAR (C)
105 4-927-649-01 BELT
106 4-933-107-01 GEAR (PL)
107 4-927-651-01 PULLEY (S)
108 4-933-109-01 CAM
109 1-645-721-11 LOADING BOARD
110 4-933-134-01 SCREW (+PTPWH M2.6 × 6)
111 4-959-996-01 SPRING (932), COMPRESSION
112 4-933-129-01 HOLDER (BU)
113 4-933-111-41 CHASSIS (MD)
114 4-917-583-21 BRACKET, YOKE
115 4-993-142-21 PULLEY (L), PRESS
M151 A-4604-363-A MOTOR (L) ASSY
