— 37 —

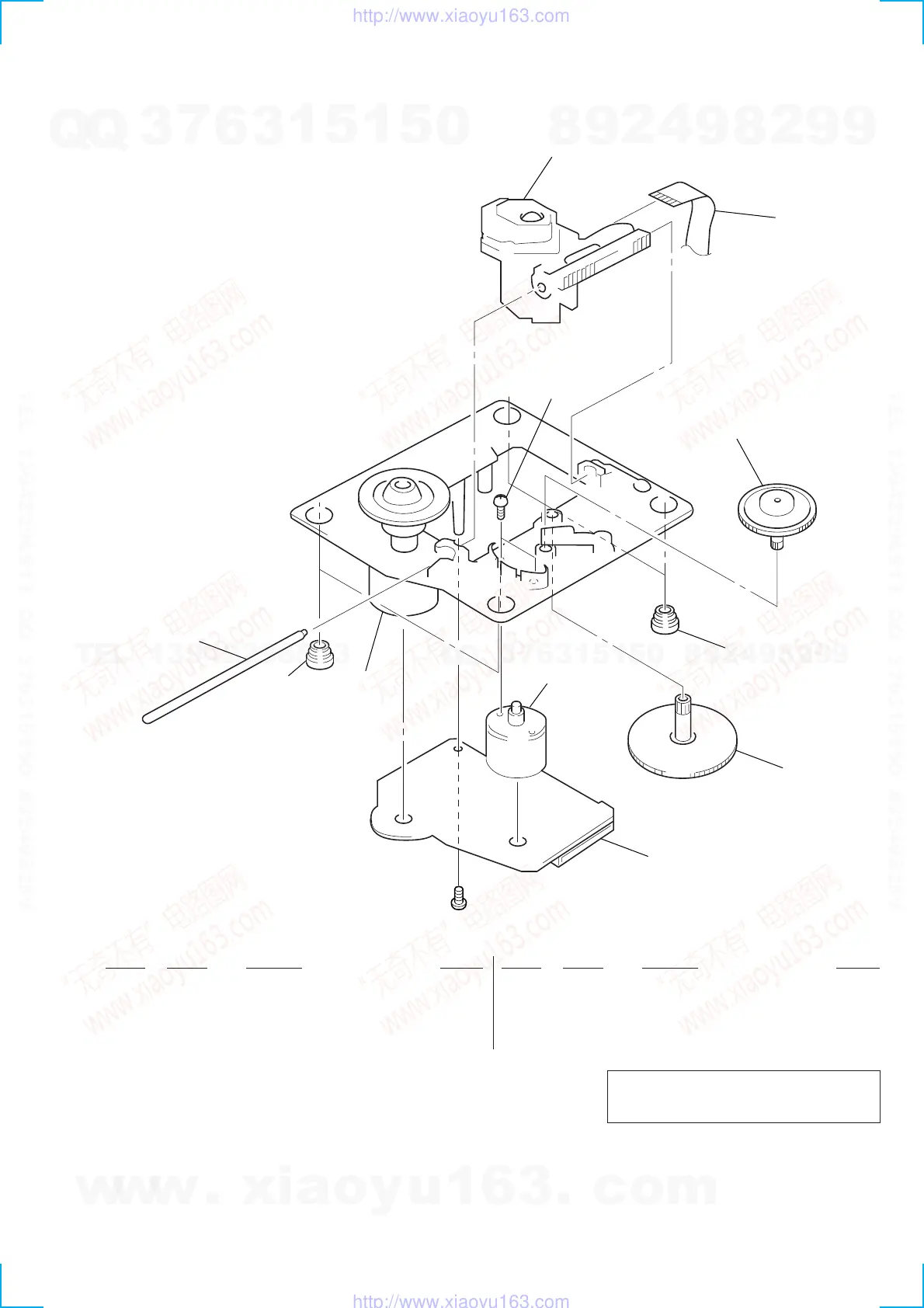

7-3. BASE UNIT SECTION (BU-5BD25)
151
152
153
158
154
156
M102
M101
#3
157
155
154
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
! 151 8-848-379-31 OPTICAL PICK-UP KSS-213BA/F-NP
152 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
153 4-917-567-01 GEAR (M)
154 4-951-940-01 INSULATOR (BU)
155 4-917-565-01 SHAFT, SLED
156 4-917-564-01 GEAR (P), FLATNESS
* 157 A-4724-002-A BD BOARD, COMPLETE
158 3-713-786-51 SCREW +P 2 × 3
M101 X-4917-523-4 MOTOR ASSY(SPINDLE)
M102 X-4917-504-1 MOTOR ASSY(SLED)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
