Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 1-452-820-11 MAGNET (ASSY)
* 102 4-977-902-01 PANEL (DRAWER)
* 103 4-977-894-01 HOLDER (AP)
* 104 A-4673-722-A BD BOARD, COMPLETE
105 1-776-998-11 WIRE (FLAT TYPE)(21 CORE)
106 4-948-503-01 SPRING (BU), COMPRESSION
107 4-977-897-01 GEAR
* 108 4-977-893-01 CAM, SLIDE
109 4-977-896-01 PULLEY
110 4-968-905-01 BELT (CDM)
* 111 1-658-710-11 LOADING BOARD
* 112 4-977-891-01 PLATE, GROUND
113 4-977-898-01 LEVER (SWING)
* 114 4-977-892-01 BEARING
* 115 4-977-888-01 SHAFT
* 116 4-977-889-01 PLATE (BU), GROUND
117 4-984-826-01 LOCK (SLIDE CAM)
M151 A-4660-968-A MOTOR ASSY (LOADING)
#1
#1
#1
#1
#1
106

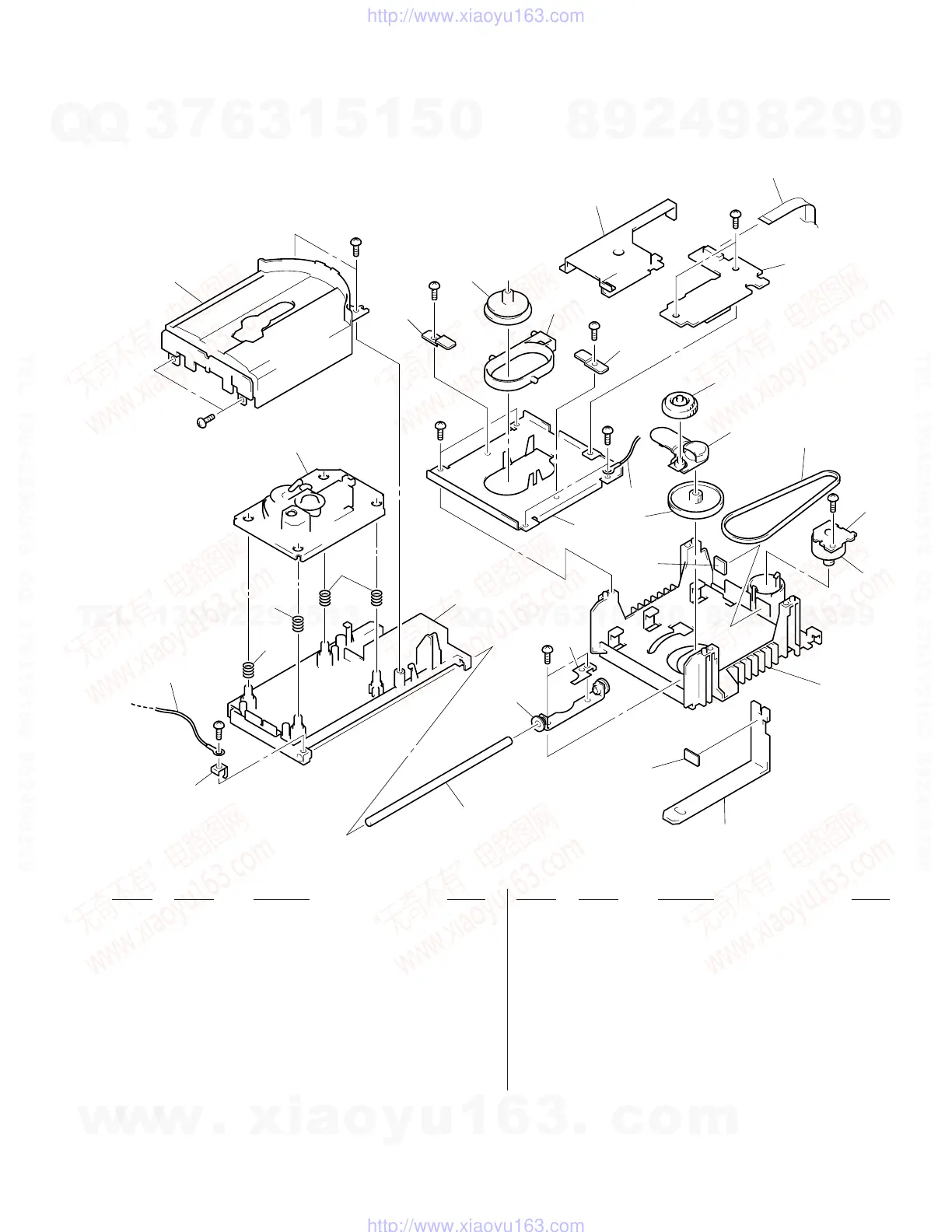

7-3. CD MECHANISM SECTION (CDM36-14)
Base unit
106
106
not supplied
112
not supplied
not supplied
115
114
not supplied
not supplied
#1
not supplied
116
#1
102
103
101
#5
117
108
104
105
107
113
110
#1
111
117
#5
M151
not supplied
109
not supplied
