— 30 —
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
151 4-977-925-01 SPRING(SLIDE BASE),COMPRESSION
152 4-977-926-01 RACK, SLIDE
153 4-977-915-01 CAP, CENTERING
154 4-977-927-01 SPRING (CENTERING),COMPRESSION
155 4-977-923-01 SHAFT, SLED
* 156 1-658-708-11 SPINDLE BOARD
157 1-775-990-11 WIRE (FLAT TYPE)(5 CORE)
* 158 4-977-928-01 SPRING (SPINDLE), LEAF
159 4-977-921-01 GEAR (B), FLAT
! 160 8-848-376-01 OPTICAL PICK-UP BLOCK KSS-213B/S-N
161 1-775-991-11 WIRE (FLAT TYPE)(16 CORE)
* 162 4-977-924-01 SPRING (OP), LEAF
163 4-951-940-01 INSULATOR (BU)
* 164 4-977-918-01 BASE (OUTSERT)
165 4-977-920-01 GEAR (C), FLAT
* 166 1-658-709-11 SLED BOARD
167 4-951-620-01 SCREW (2.6X8), +BVTP
M101 X-4947-304-1 MOTOR ASSY (SPINDLE)
M102 X-4947-303-1 MOTOR ASSY (SLED)

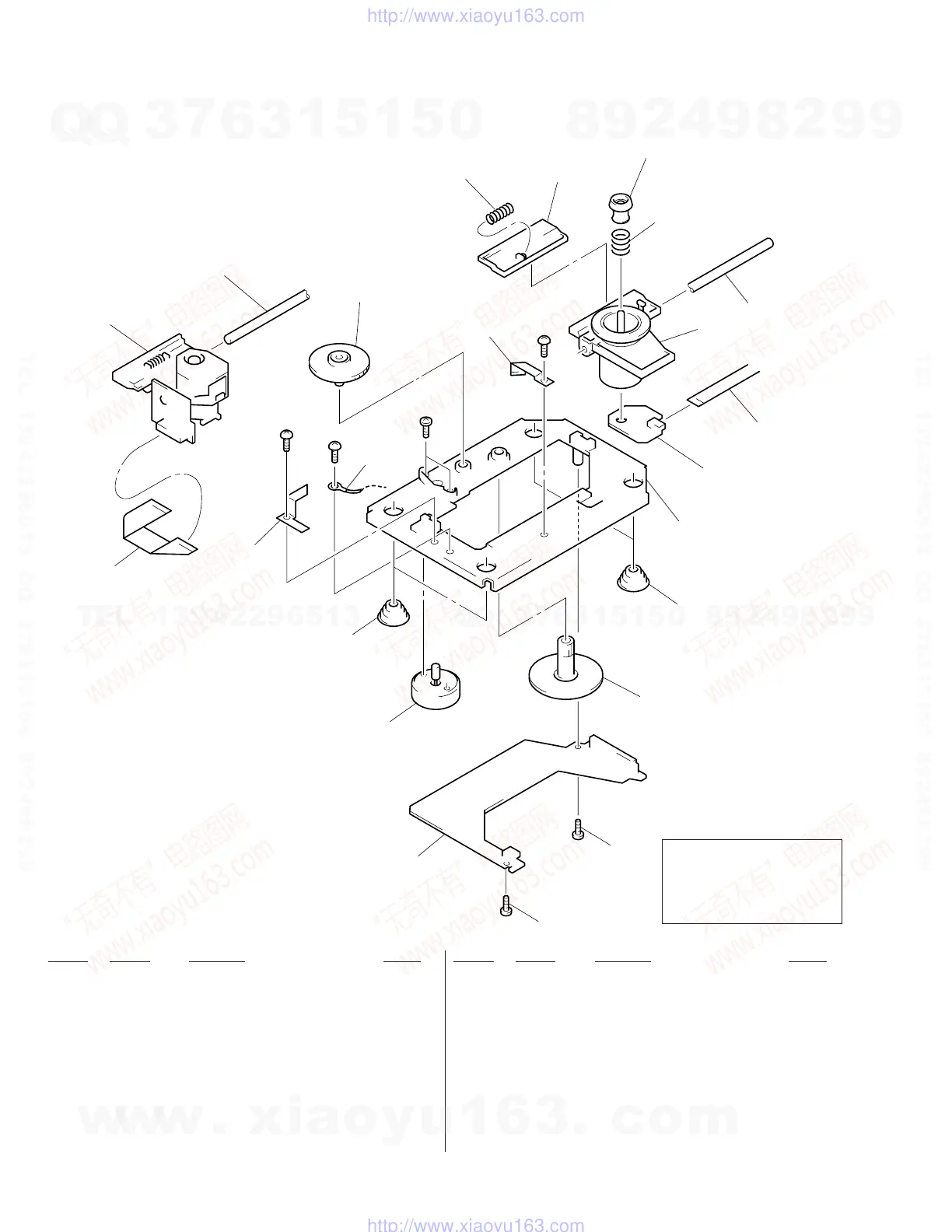

7-4. BASE UNIT SECTION (BU-14)
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
151
152
153
159
154
155
157
164
156
M101
#3
158
#4
160
155
#3
#3
not supplied
162
161
163
163
M102
165
166
167
167
