■ Environmental conditions
Operating
Temperature 5° C to 50° C (41° F to 122° F)
Humidity 10 % to 90 % (Max wet bulb 29° C)
Atmosphere Non-condensing
Non-operating/Storage
Temperature -30° C to 50° C (-22° F to 122° F)
Humidity 10 % to 90 %
Atmosphere Non-condensing
■ Dimensions and Mass
Dimensions 146 x 41.4 x 208 mm (w/h/d)
(5
3
⁄4 x 1
11
⁄16 x 8
1
⁄4 inches)
Mass 0.80 kg (1 lb 13 oz)
■ Power requirement
Voltage +5 V ± 5 % DC and +12 V DC ± 10 %
Current Tray Open/Close
+5 V DC; ≤ 800 mA
+12 V DC; ≤ 1000 mA
Seeking and Spin Up/Down
+5 V DC; ≤ 400 mA
+12 V DC; ≤ 1800 mA
Hold Track State
+5 V DC; ≤ 400 mA
+12 V DC; ≤ 1400 mA
Standby/Sleep
+5 V DC; ≤ 150 mA
+12 V DC; ≤ 5 mA
■ Mating Connectors
DC INPUT connector Housing: AMP 1-480424-0 or equivalent
Pin header: AMP 170147-1 or 4 for AWG 24-18
AMP 170120-1 or 4 for AWG 20-14
INTERFACE CONNECTOR
AMP 746285-9 or equivalent
AUDIO OUT connector Molex 70066C or G, 700400C or G and
70430C or G, or equivalent
■ Laser
Type Semiconductor laser GaAlAs
Wave length 780 nm
Output power 0.6 mW
Beam divergence 53.4 ° ± 1.5 °

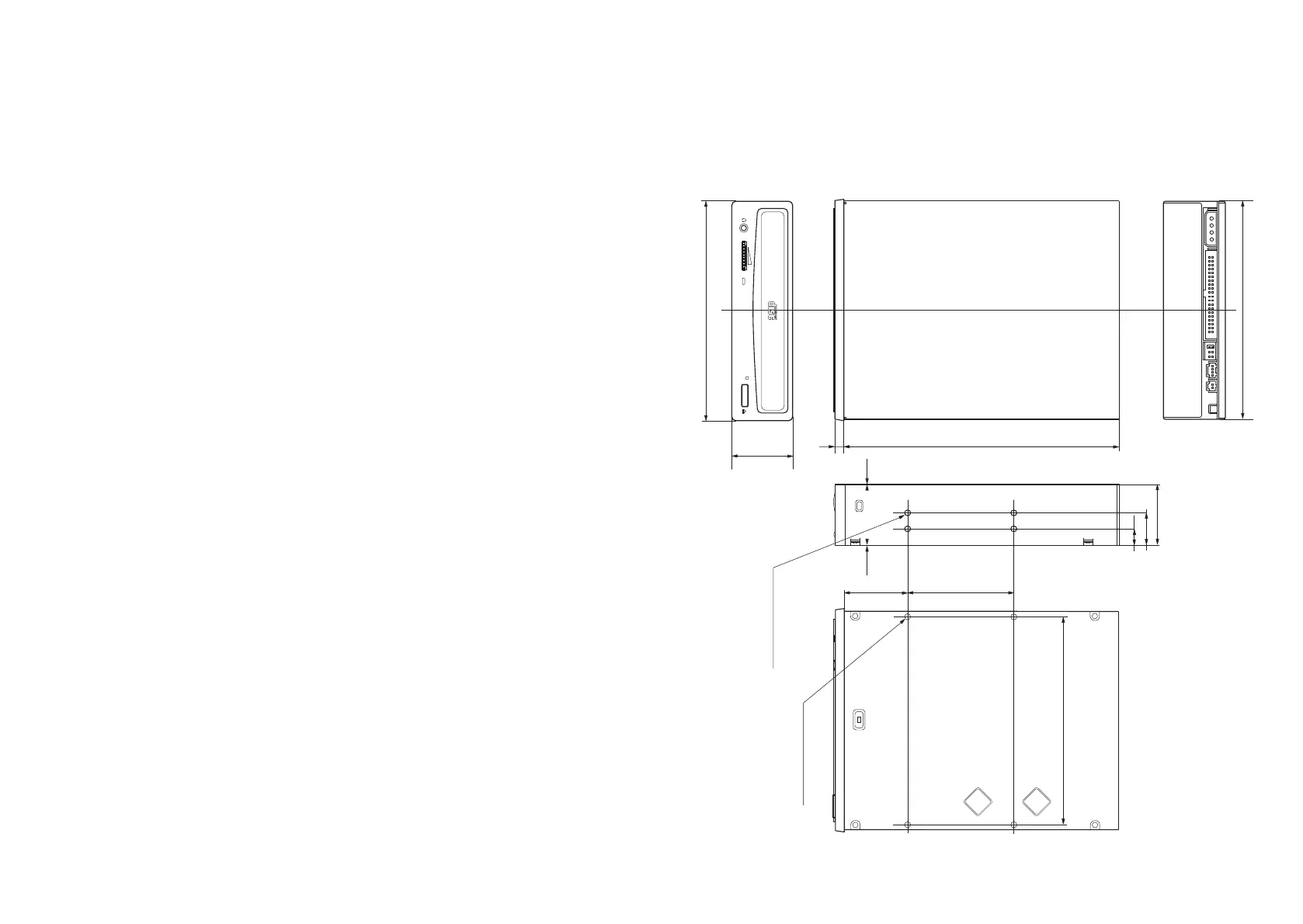

■ Dimension diagram
Important:
The overhang of the screws should not exceed 6.0 mm from the surface of
the side panels or the bottom plate.
(5
1
/
2
)
(1
7
/
8
) (3
1
/
8
)
79.25
47.5
+
+
+
+
139.7
10
(
1
/
32
)
(
1
/
32
)
21.9
(
7
/
8
)
(
13
/
32
)
0.5
0.4
(1
11
/
16
)
41.4
5
(1
11
/
16
)
42.3
203
(8)
146
(5
3
/
4
)
(
7
/
32
)
148 (5
7
/
8
)
4 M3 mounting screws (4 on each side)
4 M3 mounting screws
Units in mm (inch)
