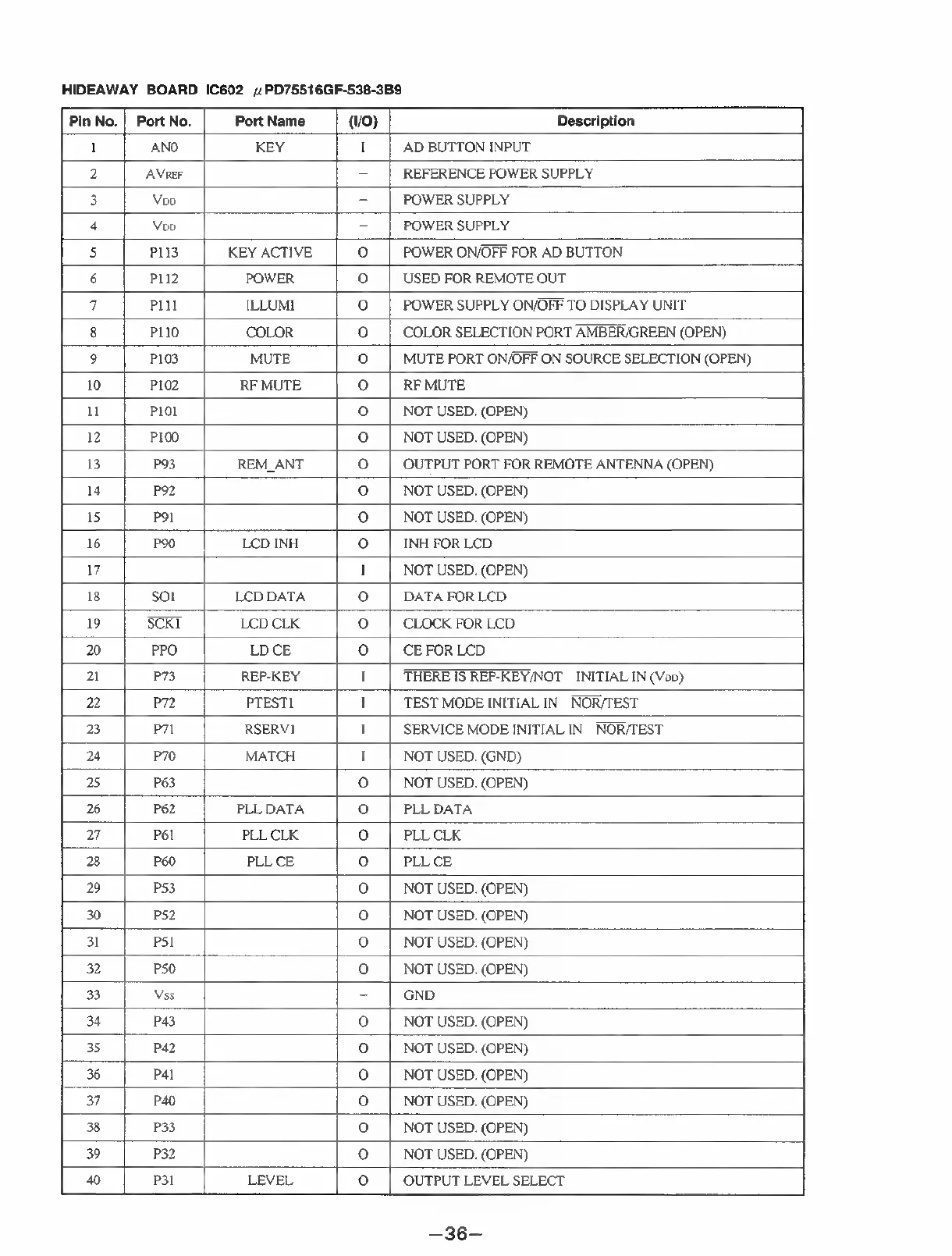

HIDEAWAY BOARD IC602 »PD75516GF-538-3B9
Pin No. | Port No. Port Name (VO) Description
1 ANO KEY I AD BUTTON INPUT oa
2 AVeer | “| — | REFERENCE POWER SUPPLY
3 Voo | — | POWER SUPPLY
4 Von | — | POWER SUPPLY
5 P13 KEY ACTIVE © | POWER ON/OFF FOR AD BUTTON
6 P12 POWER O | USED FOR REMOTE OUT
7 PIll ILLUMI OQ | POWER SUPPLY ON/OFF TO DISPLAY UNIT
8 P110 COLOR © | COLOR SELECTION PORT AMBER/GREEN (OPEN)
9 P103 MUTE fe) MUTE PORT ON/OFF ON SOURCE SELECTION (OPEN)
10 P1020 | RFMUTE O | RFMUTE
u Piol | © | NOT USED. OPEN)
12 P100 | © | NOTUSED. (OPEN)
13 p93 | REM_ANT © | OUTPUT PORT FOR REMOTE ANTENNA (OPEN)
14 poz O | NOT USED. (OPEN)
15 POL | © | NOT USED. (OPEN)
16 p90 =| = LCD INH O | INHFORLCD
7 | 1 | NOT USED. (OPEN)
is | sor | LCDDATA © | DATAFORLCD Ses
19 SCKI | LCD CLK O | CLOCK FORLCD
20 PPO. LD CE O | CEFORLCD
21 P73 REP-KEY I THERE IS REP-KEY/NOT INITIAL IN (Vov)
22 P72 PTEST1 1 TEST MODE INITIAL IN NOR/TEST
eer n ela RSERV1 I SERVICE MODE INITIAL IN NOR/TEST
24 P70 MATCH I NOT USED. (GND) ia
25 P63 © | NOT USED. (OPEN)
26 P62 PLL DATA O | PLLDATA
27 P61 PLL CLK O | PLLCLK
28 P60 PLLCE O | PLLCE
29 PS3 OQ | NOT USED. (OPEN)
30 Ps2 O | NOT USED. (OPEN)
31 PSI © | NOT USED. (OPEN)
32 PSO © | NOT USED. (OPEN)
33 Vss - | GND
34 P43. _ 0 | NOTUSED. (OPEN)
35 P42 oO | NOTUSED. (OPEN) ai —i<, |
36 Pal © | NOT USED. (OPEN)
37 P40 © | NOT USED. (OPEN) |
