Sony CDX-51 - Mechanism Deck Section

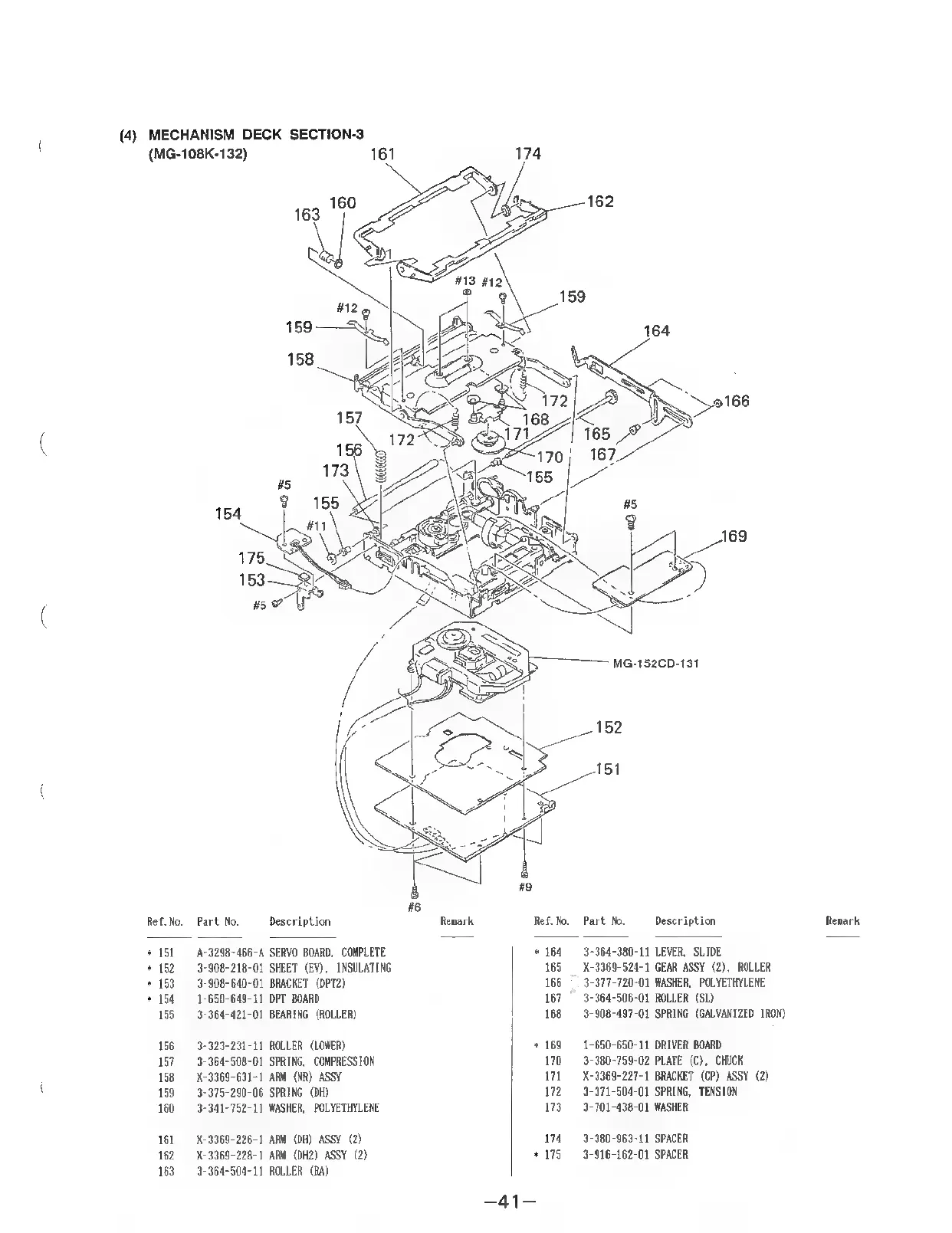

(4) MECHANISM DECK SECTION-3
(MG-108K-132) 161 174
oe
#13 #12
@
Ref. No. Part No. Description Remark Ref.No. Part No. Description Remark
* 151 A-3298-466-A SERVO BOARD, COMPLETE * 164 3-364-380-11 LEVER, SLIDE
* 152 3-908-218-01 SHEET (EV), INSULATING 165 X-3369-524-1 GEAR ASSY (2), ROLLER
* 153 3-908-640-01 BRACKET (DPT2) 166 © 3-377-720-01 WASHER, POLYETHYLENE
* 154 1-650-649-11 DPT BOARD 167 3-364-506-01 ROLLER (SL)
155 3-364-421-01 BEARING (ROLLER) 168 3-908-497-01 SPRING (GALVANIZED IRON)
156 3-323-231-11 ROLLER (LOWER) ; * 169 1-650-650-11 DRIVER BOARD
157 3-364-508-01 SPRING, COMPRESSION 170 3-380-759-02 PLATE (C), CHUCK
158 X-3369-631-1 ARM (NR) ASSY 171 X-3369-227-1 BRACKET (CP) ASSY (2)
159 3-375-290-06 SPRING (DH) 172 3-371-504-01 SPRING, TENSION
160 3-341-752-11 WASHER, POLYETHYLENE 173 3-701-438-01 WASHER
161 X-3369-226-1 ARM (DH) ASSY (2) 174 3-380-963-11 SPACER
162 X-3369-228-1 ARM (DH2) ASSY (2) +175 3-916-162-01 SPACER
163 3-364-504-11 ROLLER (RA)
—41—
