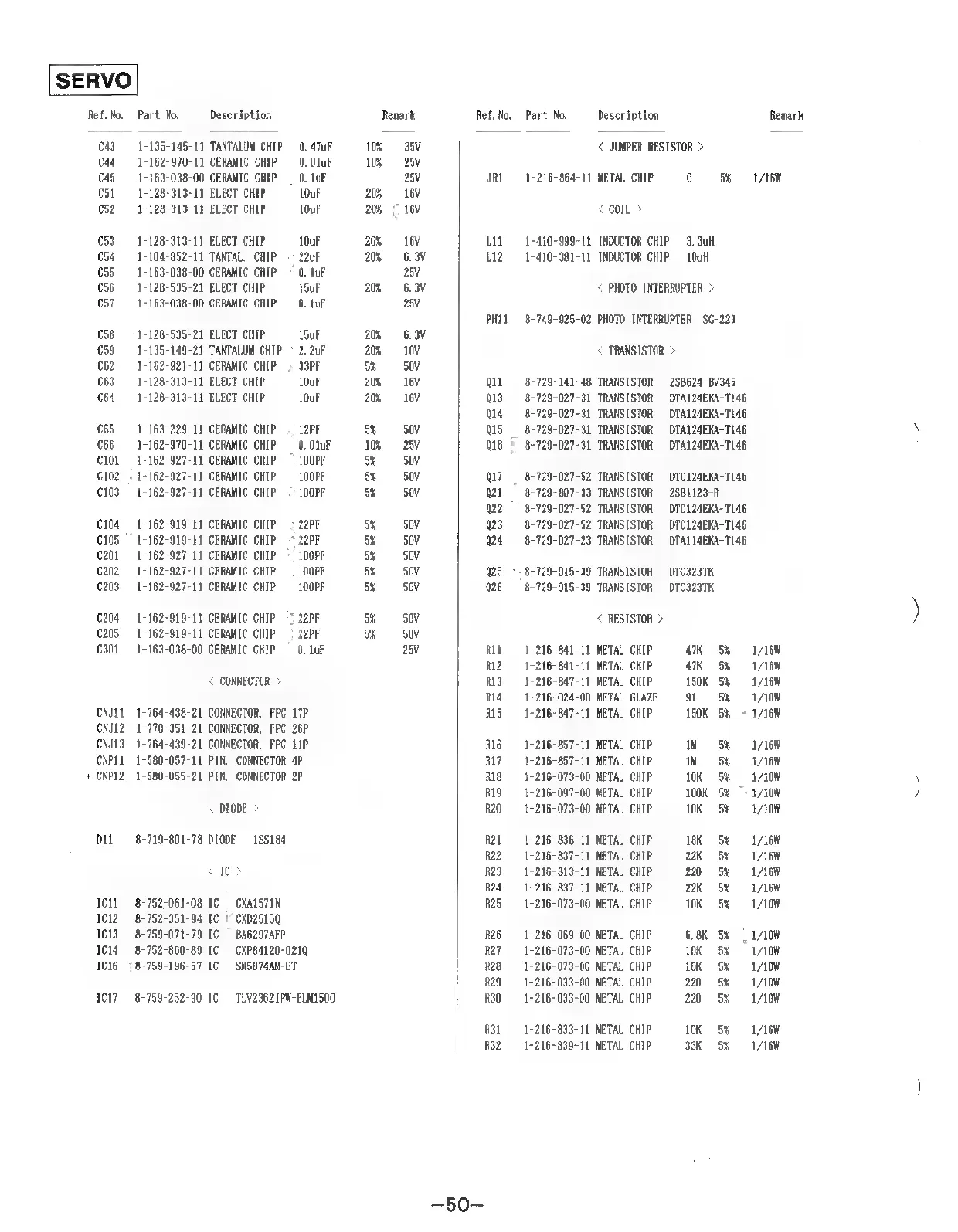

SERVO
Ref.No. Part No, Description Remark Ref.No. Part No. Description Remark
C43 1-135-145-11 TANTALUM CHIP 0. 47uF 10% 35V < JUMPER RESISTOR >
C44 1-162-970-11 CERAMIC CHIP 0. OluF 10% 25V
C45 1-163-038-00 CERAMIC CHIP = 0. JuF 25V | JRL 1-216-864-11 METAL CHIP 0 5% 1/16
C51 1-128-313-11 ELECT CHIP 10uF 20% «16
052 1-128-313-11 ELECT CHIP 10uF 20% — 16V | © COIL >
C53 1-128-313-11 ELECT CHIP 10uF 20% «16 Li 1-410-999-11 INDUCTOR CHIP 3. 3uH
C54 1-104-852-11 TANTAL. CHIP — 22uF 20% 6. Li2 1-410-381-11 INDUCTOR CHIP 10uH
C55 1-163-038-00 CERAMIC CHIP = 0. tuF 25v
C56 1-128-535-21 ELECT CHIP 15uF 22 «6. < PHOTO INTERRUPTER >
C57 1-163-038-00 CERAMIC CHIP = 0. tuF 25V
PH11 8-749-925-02 PHOTO INTERRUPTER SG-223
C58 1-128-535-21 ELECT CHIP 15uF 20% «6.
C59 1-135-149-21 TANTALUM CHIP = 2. 2uF 20% «10V < TRANSISTOR >
C62 1-162-921-11 CERAMIC CHIP = 33PF % 50V
C63 1-128-313-11 ELECT CHIP 10uF 20% «16V Qu 8-729-141-48 TRANSISTOR 2SB624-BV345
C64 1-128-313-11 ELECT CHIP 10uF 20% «16V Q13—8-729-027-31 TRANSISTOR DTA124EKA-T146
Q14— 8-729-027-31 TRANSISTOR DTA124EKA-T146
C65 1-163-229-11 CERAMIC CHIP = 12PF 5% 50V QI5 —-8-729-027-31 TRANSISTOR DTA124EKA-T146
C66 1-162-970-11 CERAMIC CHIP 0. OluF 10% 25V Q16 © 8-729-027-31 TRANSISTOR DTA124EKA-T146
C101 1-162-927-11 CERAMIC CHIP = 100PF 5% 50V
C102 © 1-162-927-11 CERAMIC CHIP —100PF bd 50V Q17) = 8-729-027-52 TRANSISTOR DTC124EKA-T146
C103 1-162-927-11 CERAMIC CHIP = 100PF 5k 50V Q21 8 729-807-33 TRANSISTOR 2SB1123-R
Q22 — 8-729-027-52 TRANSISTOR DTC124EKA-T146
C104 = 1-162-919-11 CERAMIC CHIP = 22PF 5% 50V Q23 8-729-027-52 TRANSISTOR DTC124EKA-T146
C105 1-162-919-11 CERAMIC CHIP = 22PF 5% 50V. Q24 —-8-729-027-23 TRANSISTOR DTAL14EKA-T146
C201 1-162-927-11 CERAMIC CHIP — 100PF 5% 50V
(202 1-162-927-11 CERAMIC CHIP = 100PF 5% 50V Q25 — 8-729-015-39 TRANSISTOR DTC323TK
C203 1-162-927-11 CERAMIC CHIP —100PF oy 50V Q26 © 8-729-015-39 TRANSISTOR DTC323TK
C204 -1-162-919-11 CERAMIC CHIP = 22PF 3 50V < RESISTOR >
(205 1-162-919-11 CERAMIC CHIP = _22PF 5% 50V
C301 1-163-038-00 CERAMIC CHIP 0. LuF 25v RIL 1-216-841-11 METAL CHIP 47K 5% 1/16
< CONNECTOR > R13 1-216-847-11 METAL CHIP 150K 5% 1/160
R14 1-216-024-00 METAL GLAZE 91 5&1 /10W
|
} R12 1-216-841-11 METAL CHIP 4K 5% 1/16W
CNJ11 1-764-438-21 CONNECTOR, FPC 17P RIS 1-216~847-11 METAL CHIP 150K 5% = 1/16W
CNJ12 1-770-351-21 CONNECTOR, FPC 26P
CNJ13 1-764-439-21 CONNECTOR, FPC 11P | R16 1-216-857-11 METAL CHIP IM 5% 1/168
CNP11 1-580-057-11 PIN, CONNECTOR 4P R17 1-216-857-11 METAL CHIP IM 5% 1/16
+ CNPI2 1-580-055-21 PIN, CONNECTOR 2P R18 1-216-073-00 METAL CHIP 10K 5% 1/10W
R19 1-216-097-00 METAL CHIP 100K 5% = 1/10W
< DIODE R20 1-216-073-00 METAL CHIP 10K 5% 1/108
DM 8-719-801-78 DIODE 188184 R21 1-216-836-11 METAL CHIP 18K 5% 1/164
R22 1-216-837-11 METAL CHIP 22k 5% 1/16W
<I> R23 1-216-813-11 METAL CHIP 220 5% 1 /16W
R24 1-216-837-11 METAL CHIP 22K 5% 1/168
C11 8-752-061-08 IC CXAIS71N R25 1-216-073-00 METAL CHIP 1K 5% «1/10
1C12 —-8-752-351-94 IC — CXD2515Q
C13 8-759-071-79 IC BA6297AFP R26 1-216-069-00 METAL CHIP 6.8K 5% = 1/10H
C14 8-752-860-89 IC CXP84120-0210 R27 1-216-073-00 METAL CHIP 10K 5%) 1/10W
1C16 = 8-759-196-57 IC SMS874AM-ET R28 1-216-073-00 METAL CHIP 10K 5% «1/10W
| R29 1-216-033-00 METAL CHIP 220 5k A /IOW
117 8-759-252-90 IC TLV23621PW-ELM1500 I R30 1-216-033-00 METAL CHIP 2200 5% 1/10
R31 1-216-833-11 METAL CHIP 10K 5% 1/16W
R32 1-216-839-11 METAL CHIP 33K 5% 1/16
—50—
