Sony CDX-51 - Additional Information; Case Section

NOTE:
© -XX and -X mean standardized parts, so they
may have some difference from the original
one.
© Color Indication
Example:
KNOB, BALANCE (WHITE)... . (RED)
i} t
Parts Color Cabinet's Color
of Appearance Parts

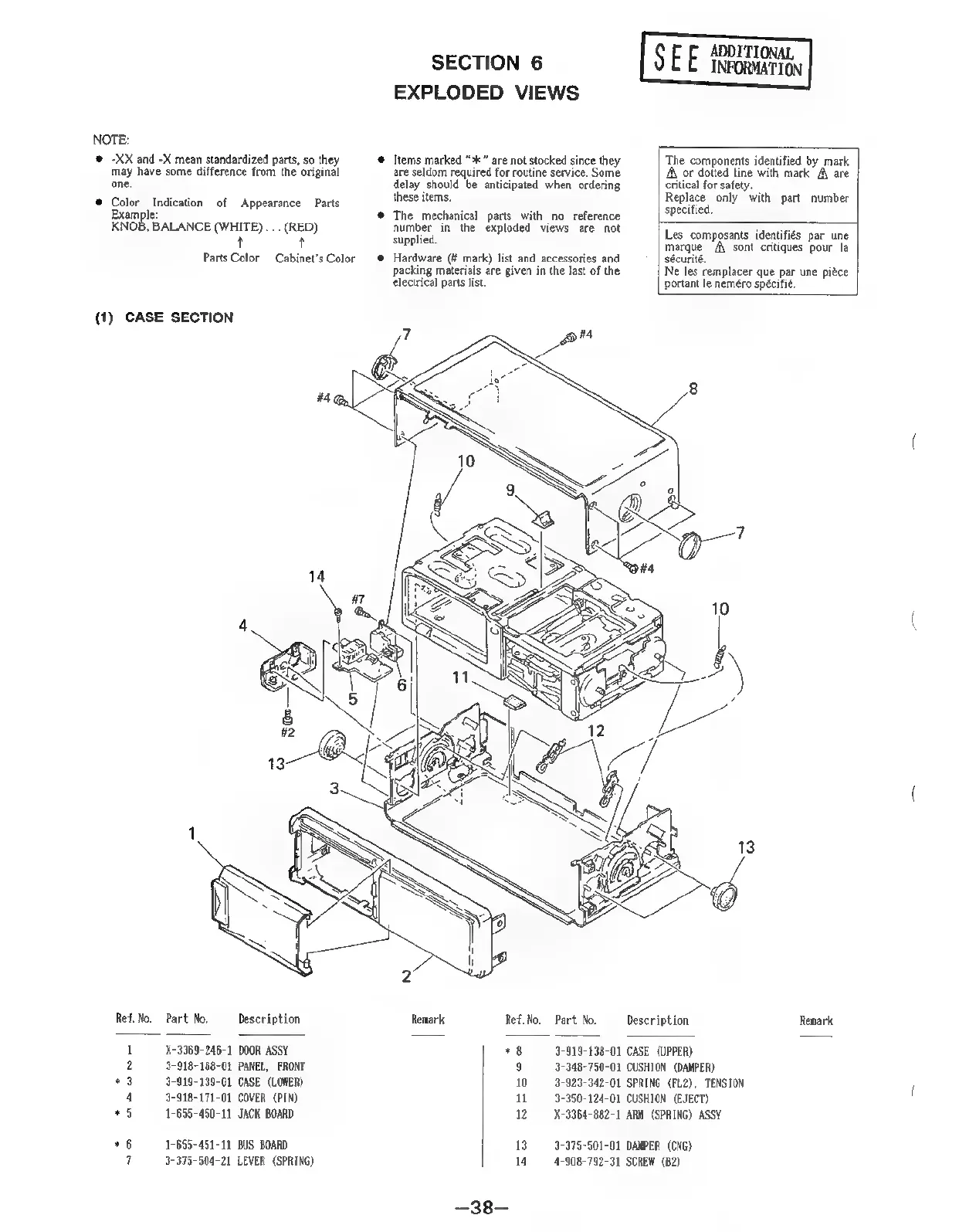

(1) CASE SECTION
SECTION 6
EXPLODED VIEWS
Items marked "%" are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
The mechanical parts with no reference
number in the exploded views are not
supplied.
Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
ADDITIONAL
INFORMATION
SEE
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified
Les composants identifiés par une
marque A\ sont critiques pour la
sécurité,
Ne les remplacer que par une pice
portant le neméro spécifié
Ref.No. Part No. Description
1 X-3369-246-1 DOOR ASSY
2 3-918-168-01 PANEL, FRONT
*3 3-919-139-01 CASE (LOWER)
4 3-918-171-01 COVER (PIN)
+5 1-655-450-11 JACK BOARD
*6 1-655-451-11 BUS BOARD
7 3-375-504-21 LEVER (SPRING)
Remark
Part No.
Description
Remark
+8 3-919-138-01 CASE (UPPER)
9 3-348-750-01 CUSHION (DAMPER)
10 3-923-342-01 SPRING (FL2), TENSION
i 3-350-124-01 CUSHION (EJECT)
X-3364-882-1 ARM (SPRING) ASSY
3-375-501-01 DAMPER (CNG)
4 4-908-792-31 SCREW (B2)
